| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-260T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 Months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | Efficiency 500T Hybrid High-speed Injection Molding Machine For Sale In Pakistan | Plastic Processed: | PP,PC,PVC |
|---|---|---|---|
| Applicable: | Manufacturing Plant,Food&Beverage | Type: | Automation |
| Warranty: | 1 Year | Machinery: | Provided |
| Place Of Origin: | Wuxi,China | Selling Points: | Competitive Price |
| Video Outgoing-inspection: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time: | About 50 Days |
| Highlight: | 150mm Hybrid Injection Molding Machine,230mm hybrid injection molding machine,SGS 500 Ton injection molding machine |
||
Product details
The series hybrid injection molding machine is based on all-electric injection molding machine (injection rate: 500mm/s) and high-speed machine . It combines with the clamping parts of the high-speed machine and the injection parts of the all-electric machine, taking into account the need for energy saving and environmental protection. It meets the requirements of this product for large clamping force and high performance injection unit. (Mold opening and filling are performed simultaneously.)
Product Description
1. Modular injection unit with excellent acceleration performance
2. High-speed machine tool high stiffness clamping unit.
3. High response and low noise hydraulic system.
4. Optimized control system with good response and accuracy for hybrid motors
Product Parameter
| OUCO-260T | ||||||||||
| Clamping Unit | ||||||||||
| Clamping force | kN | 2600 | ||||||||
| Moving mould-plate stroke | mm | 530 | ||||||||
| Max.Mould height | mm | 600 | ||||||||
| Min.Mould height | mm | 230 | ||||||||
| Space between tie-bars | mm | 610X560 | ||||||||
| Hydraulic ejector force | kN | 87 | ||||||||
| Hydraulic ejector stroke | mm | 150 | ||||||||
| Ejector number | n | 13 | ||||||||
| Injection Unit | i650 | i900 | i1000 | |||||||
| Screw diameter | mm | 40 | 45 | 50 | 45 | 50 | 55 | 50 | 55 | 60 |
| Screw LD ratio | LD | 22 | 20 | 20 | 22.2 | 20 | 20 | 22 | 20 | 20 |
| lnjection capacity in theory | Cm³ | 263 | 334 | 412 | 381 | 471 | 570 | 471 | 570 | 678 |
| Injection weight(PS) | g | 240 | 303 | 375 | 347 | 428 | 518 | 428 | 518 | 617 |
| Injection pressure | bar | 2531 | 2000 | 1620 | 2469 | 2000 | 1653 | 2178 | 1800 | 1513 |
| Injection velocity | mm/s | 350 | 350 | 350 | ||||||
| Plasticizing capacity | g/s | 30 | 42 | 50 | 42 | 50 | 60 | 50 | 60 | 75 |
| Screw speed | rpm | 400 | 400 | 400 | ||||||
| Other | ||||||||||
| Pump pressure | MPa | 17.5 | ||||||||
| Motor/Driving power | kW | 37(注)+23(熔)+30(油) | 37(注)+23(熔)+30(油) | 37(注)+23(熔)+30(油) | ||||||
| Heating capacity | kW | 13.55 | 13.55 | 16.83 | ||||||
| Machine dimension | m | 6.17x1.56x1.82 | 6.37x1.56x1.92 | 6.57x1.56x2.12 | ||||||
| Machine weight | t | 9.7 | 10 | 10.2 | ||||||
| oil tank capacity | L | 412 | ||||||||

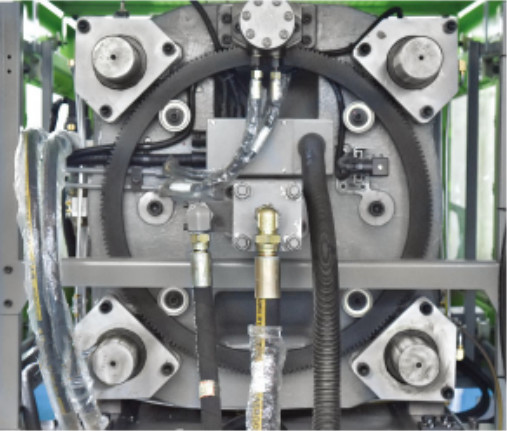

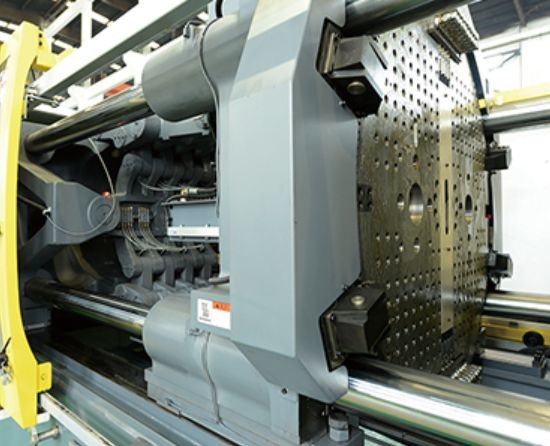

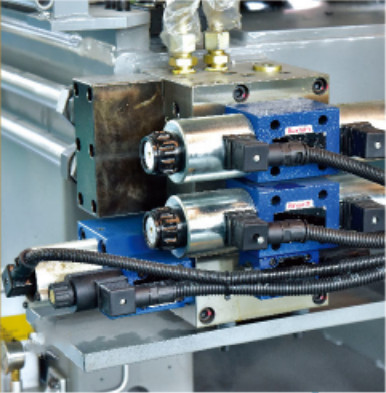

Detail Pictures

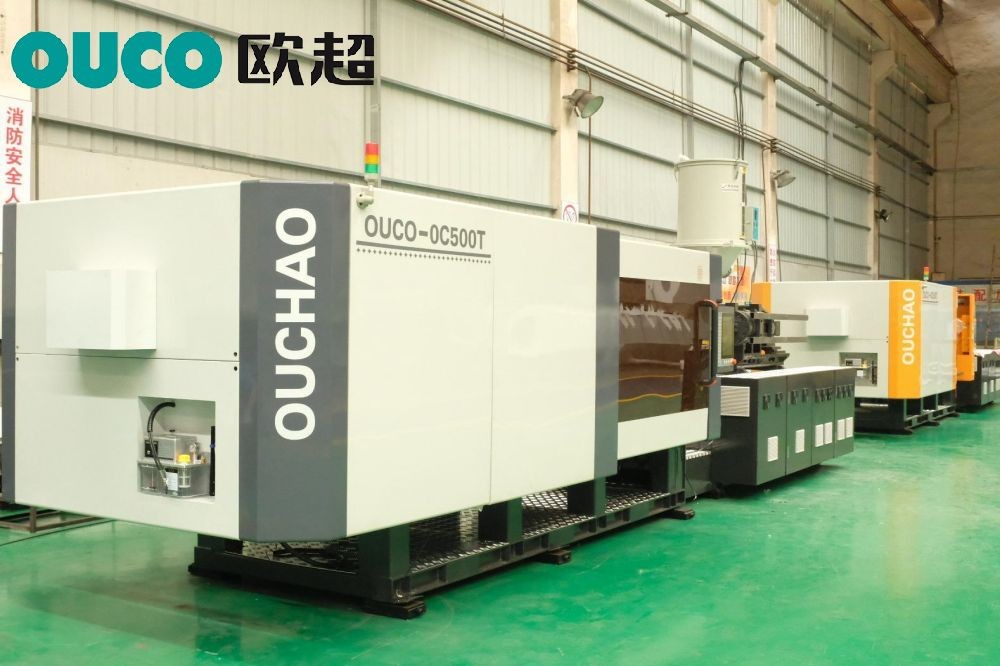

Company Profile
