| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-150H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OC Series 150 Ton Deep-Cavity And Large Products Plastic Injection Molding Machine For Industrial Preforms | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |

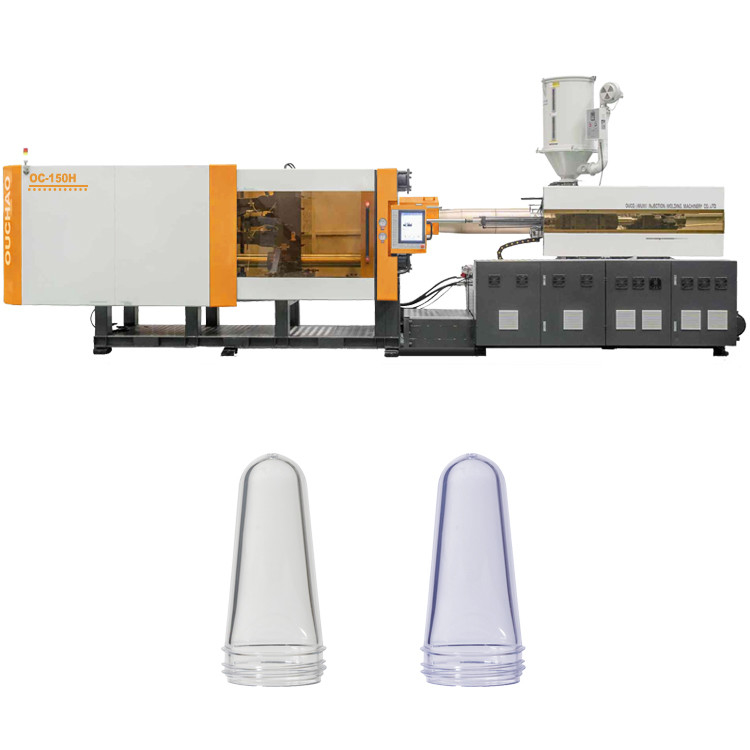

OC Series 150 Ton Deep-Cavity And Large Products Plastic Injection Molding Machine For Industrial Preforms
Why choose us
High-Quality Manufacturing: Using advanced manufacturing technology and high-quality materials to ensure product reliability and durability. Its machines have stable performance and excellent durability, and can meet long-term, high-intensity production needs.
Advanced technological innovation: We are committed to technological innovation and research and development, and constantly introducing advanced injection molding technology and equipment. We pay attention to the latest trends in the industry and apply innovation to product design and manufacturing to improve production efficiency, reduce energy consumption and optimize product quality.
Customer customization service: Injection molding machines focus on cooperation with customers and provide personalized customization services. They are able to customize and design injection molding machines suitable for their production needs according to their specific requirements to ensure that customers can obtain the best production results and economic benefits.
Good after-sales service: Injection molding machines focus on after-sales service and provide timely and professional technical support and maintenance services. We have an extensive after-sales network and a professional technical team that can quickly respond to customer needs, solve possible problems, and ensure that customers' production goes smoothly.
Features of OC Series and OC- 150H
Our injection molding machines are designed for high-precision and high-efficiency production needs. Whether it is daily household or industrial application, we can provide you with solutions. The OC series injection molding machines independently developed and designed by our OUCO are suitable for both industrial and household plastic fruit baskets, trays, trash cans, plastic chairs, plastic buckets, etc., and are widely used.
The OC-150H with the 800 tons clamping force and 1300mm mold transfer stroke, it can accommodate complex and large molds,suitable for the production of complex products.There are four types diameters to choose from: A,B,C .The screw material can be selected according to the plastic material.The OC-150H data of the machine will be as follows.
Parameters
| MODEL | OC-150H | ||
| Injection part | |||
| Screw type | A | B | C |
| Screw diameter (mm) | 40 | 45 | 50 |
| Screw L/D ratio(L/D) | 23.6 | 21 | 18.9 |
| Theoretical injection volume(cm³) | 253.8 | 321.3 | 396.6 |
| Injection volume (g) | 231 | 292.4 | 360.9 |
| Maximum rate for injection to air(g/s) | 91.5 | 115.8 | 142.9 |
| Injection pressure (M Pa) | 238 | 188 | 152.3 |
| Clamping part | |||
| Clamping force (Ton) | 1500 | ||
| Toggle stroke (mm) | 450 | ||
| Distance between tie bars(mm*mm) | 470*420 | ||
| Maximum mould height (mm) | 450 | ||
| Minimum mould height (mm) | 200 | ||
| Ejection stroke (mm) | 150 | ||
| Ejector force forward (KN) | 45.2 | ||
| Amount of die thimble (PCS) | 1+4 | ||
| Others | |||
| Motor power (KW) | 13~18 | ||
| Heater power (kW) | 10 | ||
| Quantity of temperature-control zones | 3+1 | ||
| Boundary dimension(L*W*H) (m) | 4.6×1.2×1.8 | ||
| Sys.Pressure (Mpa) | 16 | ||

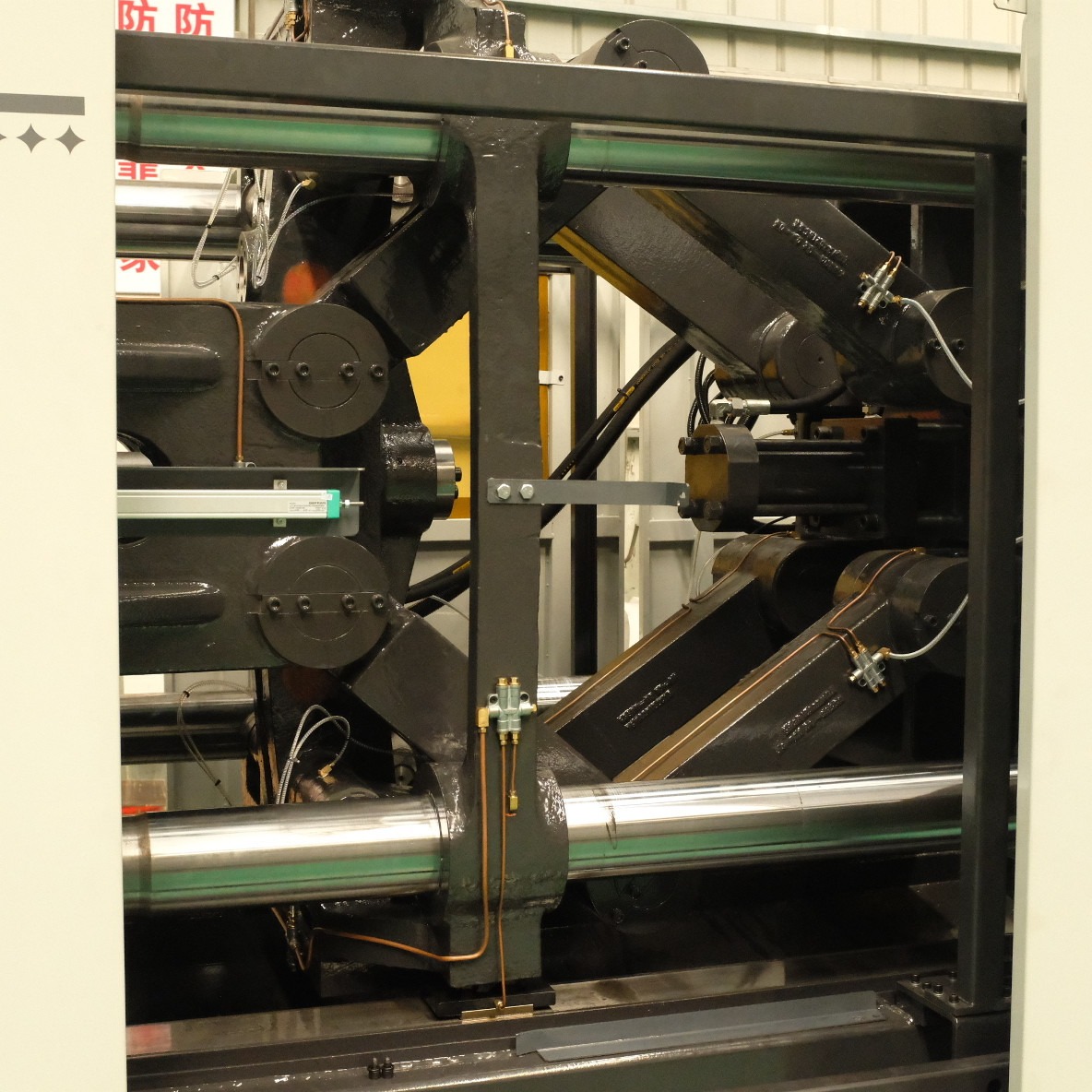

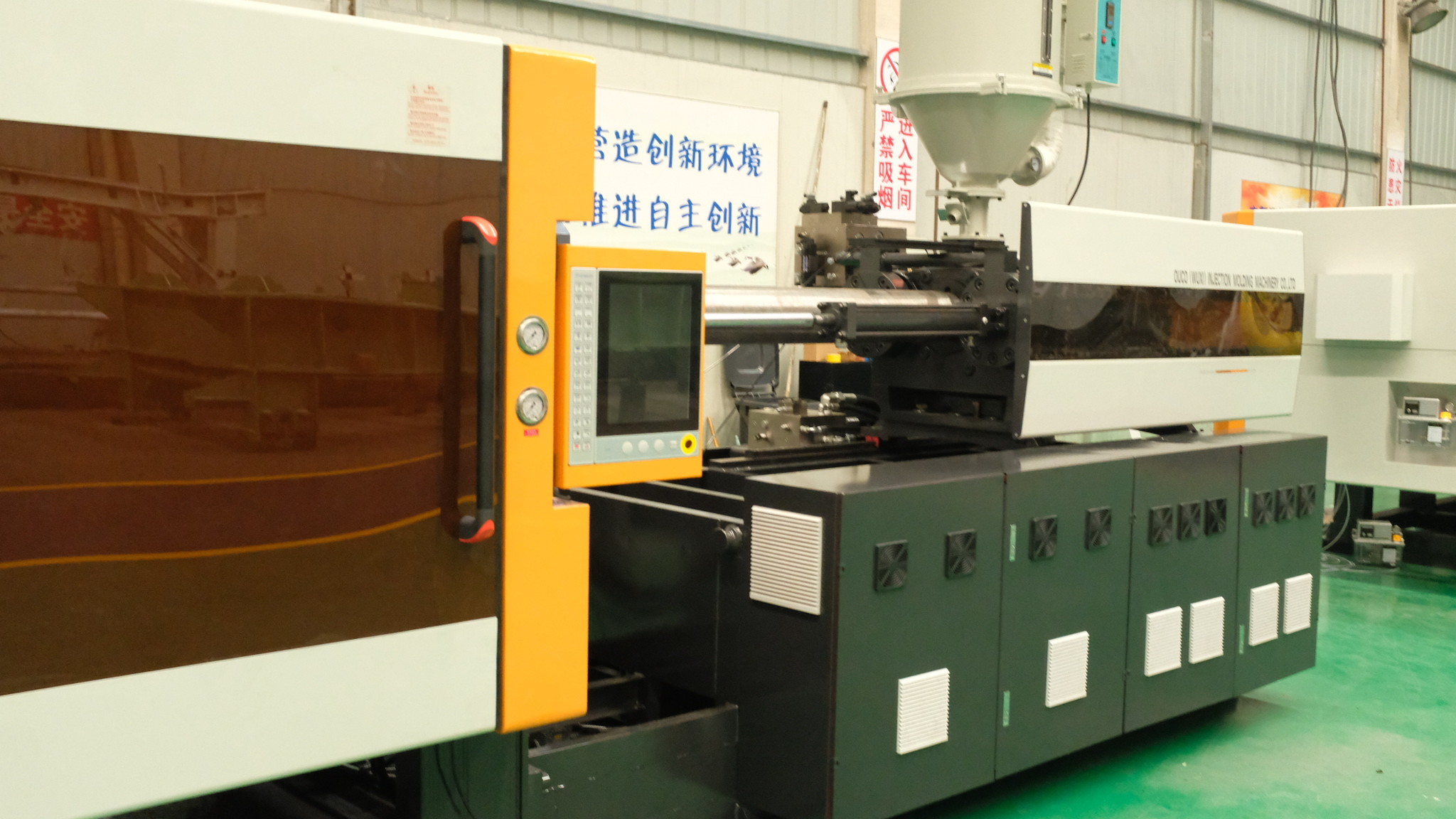

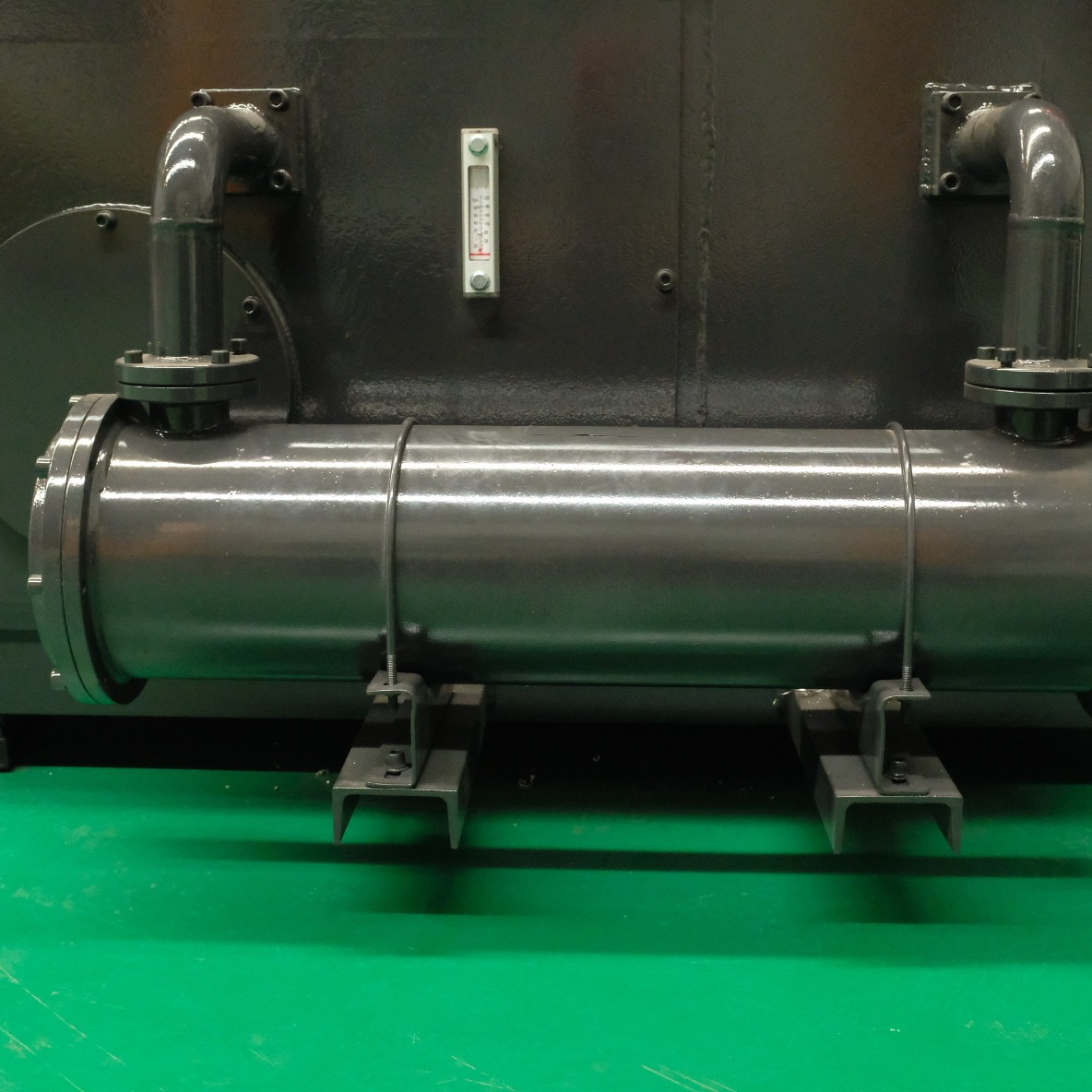

Detail Pictures
