| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-650H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OC-650H High Precision Injection Plastic Molding Machine For Plastic Trash Bin | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | OC-650H Injection plastic Molding Machine,High Precision Injection plastic Molding Machine,Trash Bin injection plastic molding machine |
||
550 Ton High Clamping Force Injection Plastic Molding Machine For Plastic Bucket
About us
OUCO (WUXI) Injection Molding Machinery Co., Ltd. is an Integration of industry and trade company specializing in the production of injection molding machines. From production to sales to after-sales service, it has a complete industrial system. From design to production, it has a professional technical team. We can design and equip you with high-quality and multi-selective injection molding machine models according to your production needs.
Our injection molding machines are mainly high-speed machines, servo machines and large two-platen machines. The clamping force of high-speed machines and servo machines ranges from 50 tons to 2,200 tons. Each specification can be equipped with 2 or 3 different injection structures according to your product requirements. The clamping force of the other two-platen machines ranges from 800 tons to 2,100 tons.
If you produce related products in the fields of auto parts, medical equipment, large pipes, trash cans, trays and fruit baskets, we will provide you with the corresponding plastic machine options to bring you the most suitable choice.
Unswerving commitment and pursuit of perfection is the eternal philosophy of OUCO. We will continue to update and improve our products and technologies to create more value and production benefits for you.
Product features and advantages

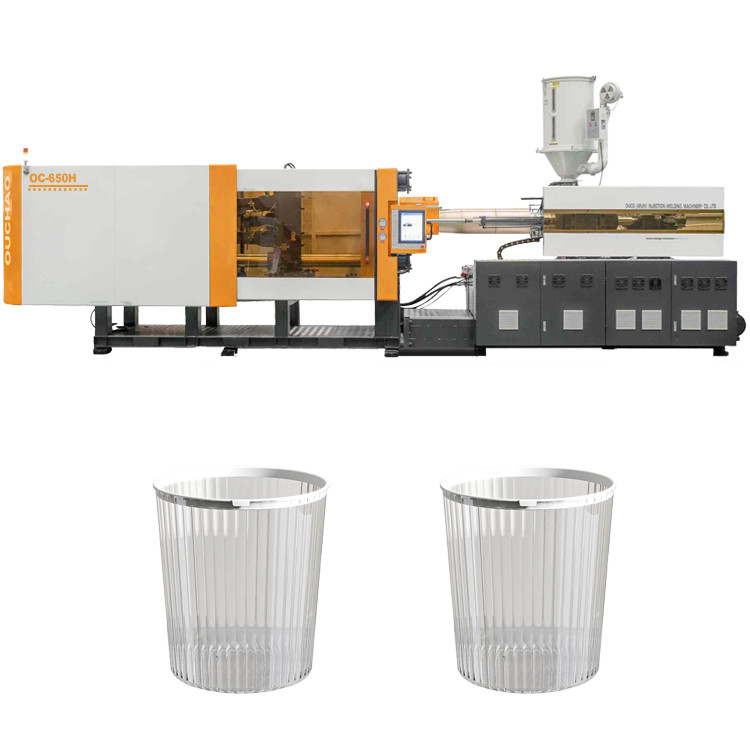

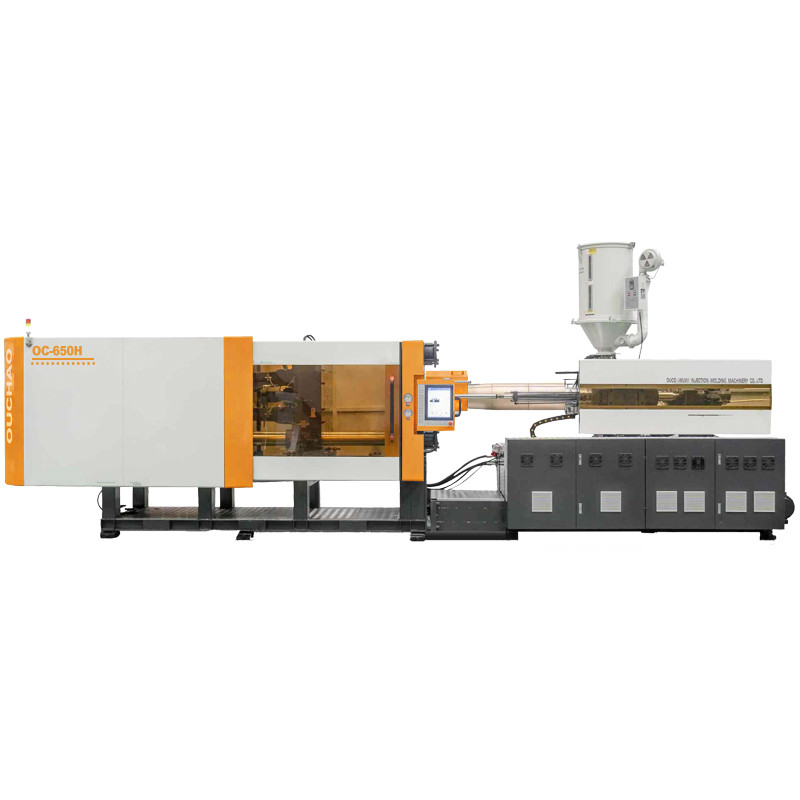

OC-650H is a machine in the OC standard high speed injection molding machine series with the advantages of center clamping and extra-large mold opening stroke. It can be widely used in mass production of plastic products and is suitable for large-scale production. It can be used for mass production of plastic trash cans, plastic fruit baskets, plastic barrels, and plastic trays.
Quality Assurance
It has high injection pressure and clamping force. The high clamping force can ensure that the mold will not be deformed due to high pressure injection during the injection process, maintain the accuracy and consistency of the mold, and thus ensure the dimensional accuracy and appearance quality of the product. The dual-cylinder injection technology is adopted. The dual-cylinder system can provide a more stable injection process, reduce pressure fluctuations, and improve the consistency and quality of the product. It is especially suitable for high-precision and high-requirement products.
Energy saving and environmental protection:
The servo motor and internal gear pump power system is adopted. The servo motor can adjust the power output according to actual needs, which greatly reduces energy consumption. The internal gear pump has a stable flow output, small flow fluctuation, and can provide stable hydraulic power. The combination of the two not only reduces energy consumption, but also provides stable and sufficient power for the machine.
Easy to operate:
The electronic control unit uses Taiwan Techmation computer. The computer system provides high-precision temperature, pressure and speed control, making the injection molding process more stable and accurate, ensuring consistent product quality. It has an intuitive and easy-to-operate user interface, allowing operators to quickly get started and improve operating efficiency.
Parameters
| MODEL | OC-650H | ||
| Injection part | |||
| Screw type | A | B | C |
| Screw diameter (mm) | 85 | 90 | 95 |
| Screw L/D ratio(L/D) | 23.3 | 22 | 20.8 |
| Theoretical injection volume(cm³) | 2553.5 | 2862.8 | 3189.7 |
| Injection volume (g) | 2323.7 | 2605.1 | 2902.6 |
| Maximum rate for injection to air(g/s) | 413.1 | 463.1 | 516 |
| Injection pressure (M Pa) | 178.5 | 159.2 | 142.9 |
| Clamping part | |||
| Clamping force (Ton) | 6500 | ||
| Toggle stroke (mm) | 1150 | 950 | |
| Distance between tie bars(mm*mm) | 960*830 | 930*830 | |
| Maximum mould height (mm) | 950 | ||
| Minimum mould height (mm) | 425 | ||
| Ejection stroke (mm) | 250 | ||
| Ejector force forward (KN) | 125.7 | ||
| Amount of die thimble (Pcs) | 1+14 | ||
| Others | |||
| Motor power (kW) | 60~70 | ||
| Heater power (kW) | 44 | ||
| Quantity of temperature-control zones | 5+1 | ||
| Boundary dimension(L*W*H) (m) | 9.5x2.1x2.6 | ||
| Sys.Pressure (Mpa) | 16 | ||
Applicable scene:
The fruit basket injection molding machine is suitable for the production of various fruit baskets and is widely used in fruit packaging, supermarkets, farmers' markets, orchards and other fields, providing customers with efficient and high-quality fruit basket production solutions.

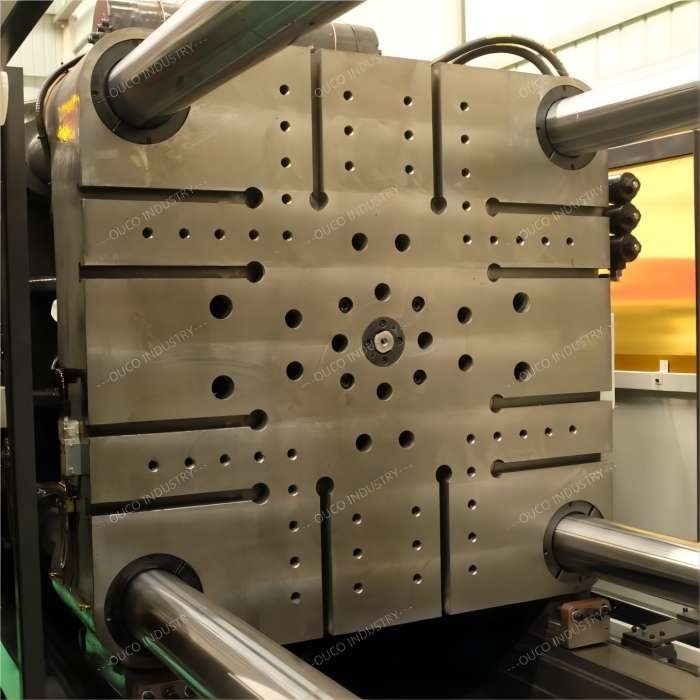

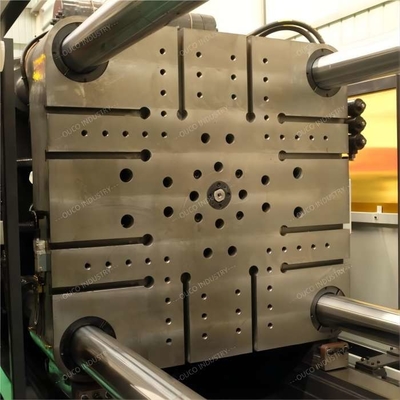

Detail Pictures
We will offer you:
Price advantage:
Our injection molding machines have more advantages in terms of functions and performance than other high-end brands on the market, and their prices are more competitive.
Considerate pre-sales service:
We will recommend the most suitable product model for you based on your product needs, making your purchase more worry-free.
High-quality after-sales service:
We provide you with regular inspection and maintenance services, lifetime maintenance of the machine body, and sufficient supply of spare parts to make your purchase more secure.
