| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-150H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

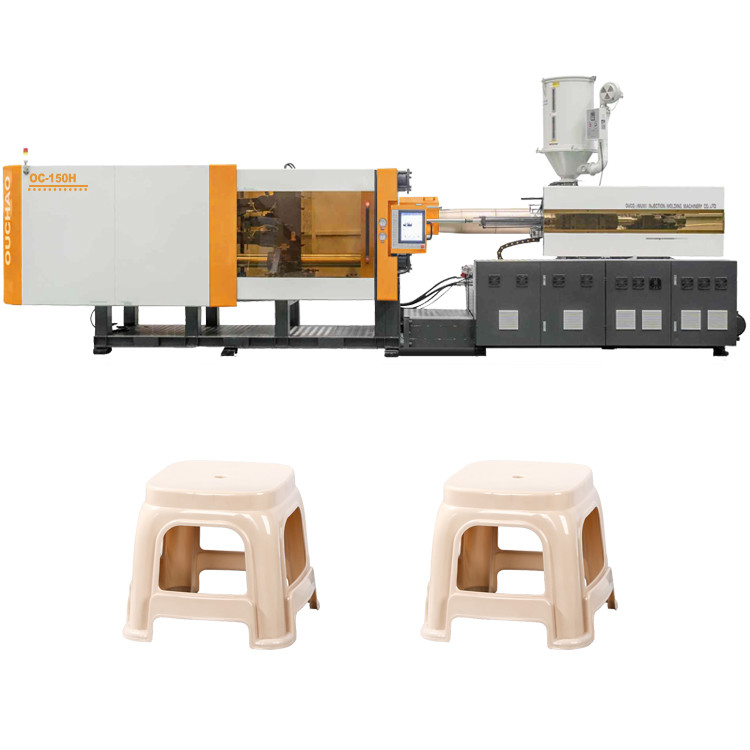

| Product Name: | OC- 150H Plastic Injection Molding Machine For Plastic Products | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Plastic Products Injection Molding Machine,150H Plastic Injection Molding Machine,injection plastic Products molding machine |
||
Product Advantages
Energy saving and environmental protection
Adopting servo motor and internal gear pump power system,realizing the power output mode of giving as much energy as needed,which greatly saves energy and reduces energy consumption by about 20%-80% compared with traditional power output mode.
Compared with traditional injection molding structure,high precision,less flying edge,save electricity,material,time and labor.
High efficiency and high precision

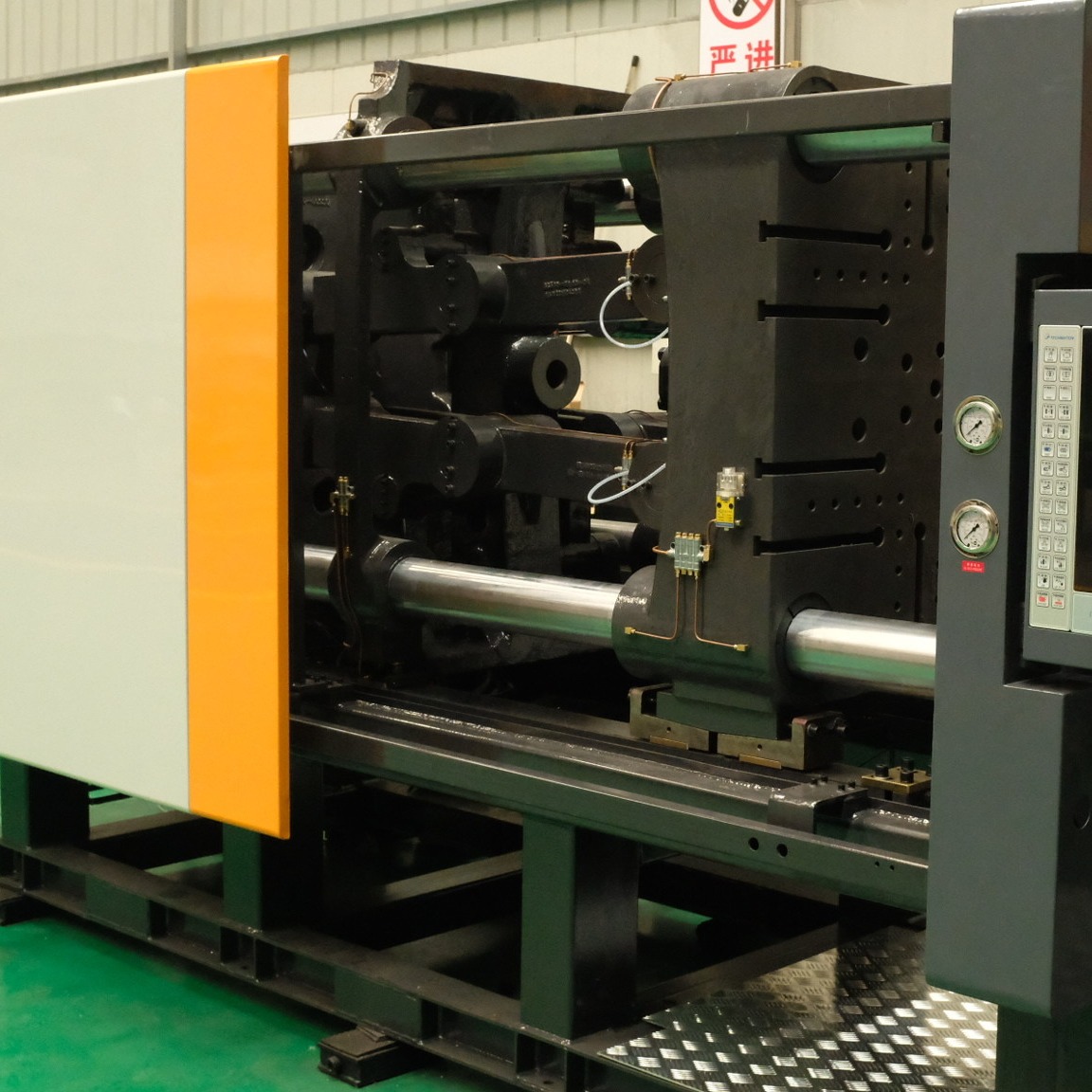

Outward turning center-locked clamping structure,clamping force utilization rate of 100%.
Adopts dual-cylinder injection technology,which provides fast response,high precision and low inertia,making it suitable for molding precision and thin-wall products.
High stability and wide applicability
The hydraulic system is supplied by the nationally famous manufacturer,adopting high-speed,oversized,and special oil circuit design and manufacture.It adopting multi-way logic control,high flow rate,low noise,and stable performance.

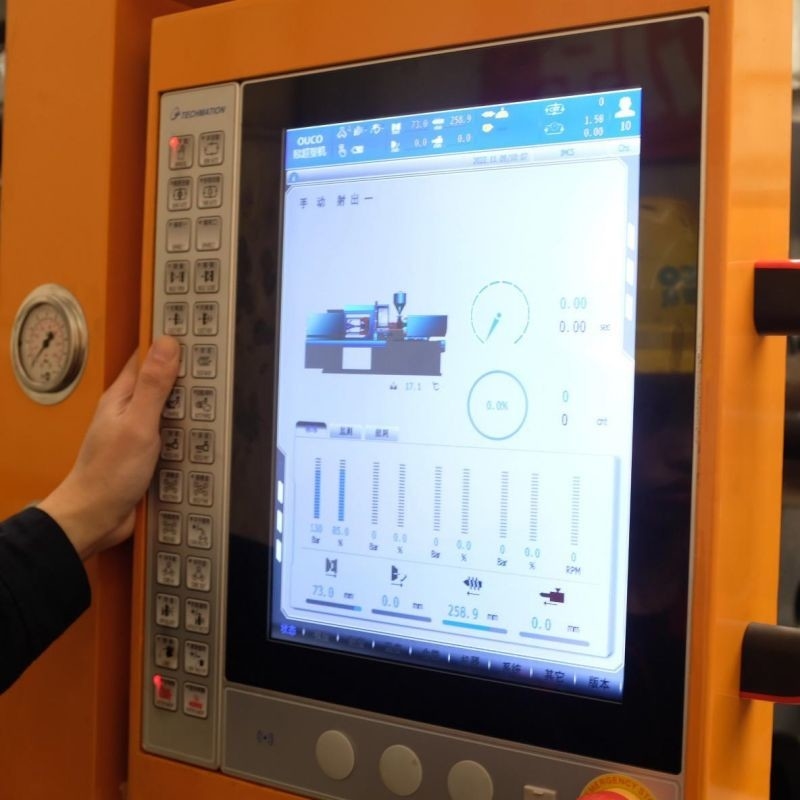

The electronic control unit adopting Taiwan Techmation(台湾弘讯) computer,fast response speed,high control precision,more convenient operation,multiple versions for choice,better adapt to servo system,wide applicability.
Parameters
| MODEL | OC-150H | ||
| Injection part | |||
| Screw type | A | B | C |
| Screw diameter (mm) | 40 | 45 | 50 |
| Screw L/D ratio(L/D) | 23.6 | 21 | 18.9 |
| Theoretical injection volume(cm³) | 253.8 | 321.3 | 396.6 |
| Injection volume (g) | 231 | 292.4 | 360.9 |
| Maximum rate for injection to air(g/s) | 91.5 | 115.8 | 142.9 |
| Injection pressure (M Pa) | 238 | 188 | 152.3 |
| Clamping part | |||
| Clamping force (Ton) | 1500 | ||
| Toggle stroke (mm) | 450 | ||
| Distance between tie bars(mm*mm) | 470*420 | ||
| Maximum mould height (mm) | 450 | ||
| Minimum mould height (mm) | 200 | ||
| Ejection stroke (mm) | 150 | ||
| Ejector force forward (KN) | 45.2 | ||
| Amount of die thimble (Pcs) | 1+4 | ||
| Others | |||
| Motor power (KW) | 13~18 | ||
| Heater power (kW) | 10 | ||
| Quantity of temperature-control zones | 3+1 | ||
| Boundary dimension(L*W*H) (m) | 4.6×1.2×1.8 | ||
| Sys.Pressure (Mpa) | 16 | ||
