| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC550H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 550T Durable Vegetable Crates Making Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Durable Vegetable Crates Injection Molding Machine,550T Injection Molding Machine,Vegetable Crates Injection Molding Machine |
||
Company Advantages
We continuously invest in research and development and introduce the latest technology and equipment to ensure that our injection molding machines are always at the forefront of the industry with excellent performance. Through continuous innovation, we can provide you with more efficient and stable production equipment, helping you reduce production costs and improve production efficiency.
In addition to providing high-quality products, we also provide a full range of pre-sales consultation and after-sales services. Our professional team will follow up on your order throughout the process to ensure that you receive timely and effective support and assistance throughout the entire purchasing process.
In the fiercely competitive market environment, choosing us is the guarantee of success. We firmly believe that only by creating value for customers can we win long-term cooperation and trust. Let us work together to create a better future!
If you have any questions or need further information, please feel free to contact us. Look forward to working with you!
Product Advantages

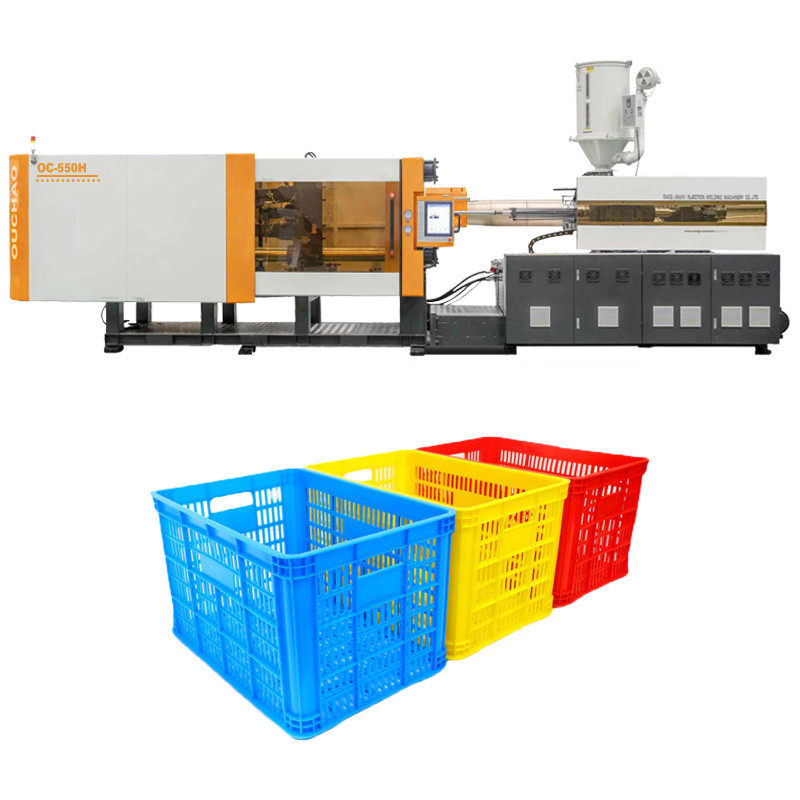

The OC-550H injection molding machine can help you realize automatic production of vegetable baskets with high production efficiency. An injection molding machine can produce hundreds of plastic baskets per hour, increasing your output.
Vegetable baskets produced through injection molding have the advantages of consistent size, uniform wall thickness, and smooth surface due to the precise control of the injection volume and injection speed by the control system, which reduces the possibility of bubbles and flash in the product and improves the yield rate. Help you seize the plastic basket market.

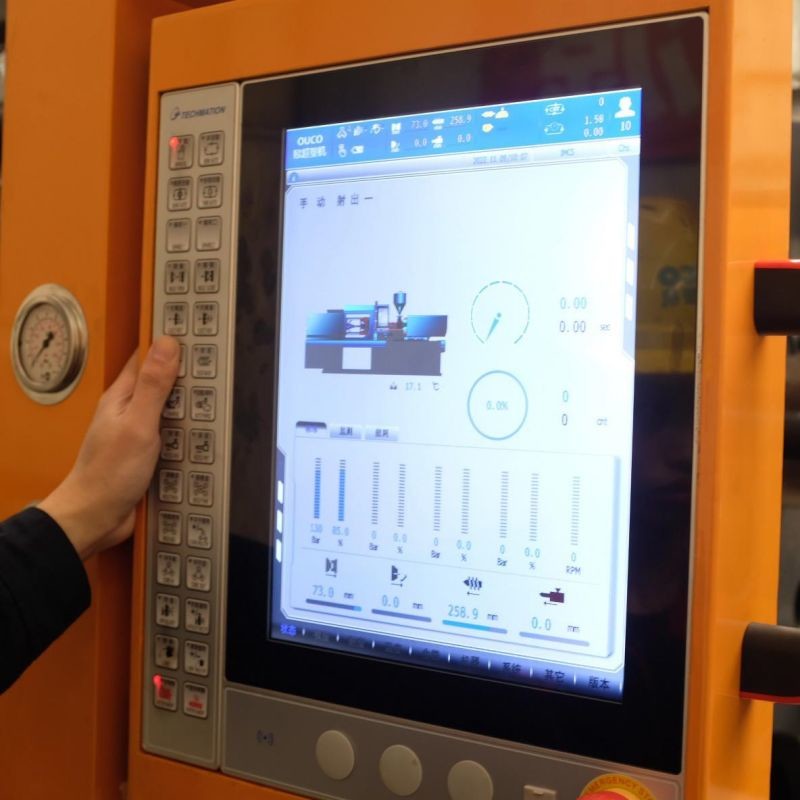

OC-550H is simple to operate and easy to learn. The equipped control computer is also thoughtfully prepared in multiple languages to facilitate the use of customers from different countries and languages.
There are also many customers in China who choose OUCO injection molding machines and have a very high experience when producing plastic baskets. We believe that OC-550H will be your right assistant in producing plastic baskets.
Parameters
| MODEL | OC550H | |||||
| Clamping force (kN) | 5500 | |||||
| Space between tie bar (mm*mm) | 860*800 | |||||
| Max. mold thickness (mm) | 800 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 1010 | |||||
| Ejector stroke(mm) | 210 | |||||
| Ejector force forward(Kn) | 103 | |||||
| Screw diameter(mm) | 80 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2060 | |||||
| Shot weight (PS) g | 1991 | |||||
| Injection pressure(MPa) | 150 | |||||
| Injection speed (mm/s) | 133 | |||||
| Injection rate (g/s) | 646 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 850 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (T) | 20 | |||||
| Machine size L×W×H (m) | 8.7*2.0*2.1 | |||||
Detail Pictures
