| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-650H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

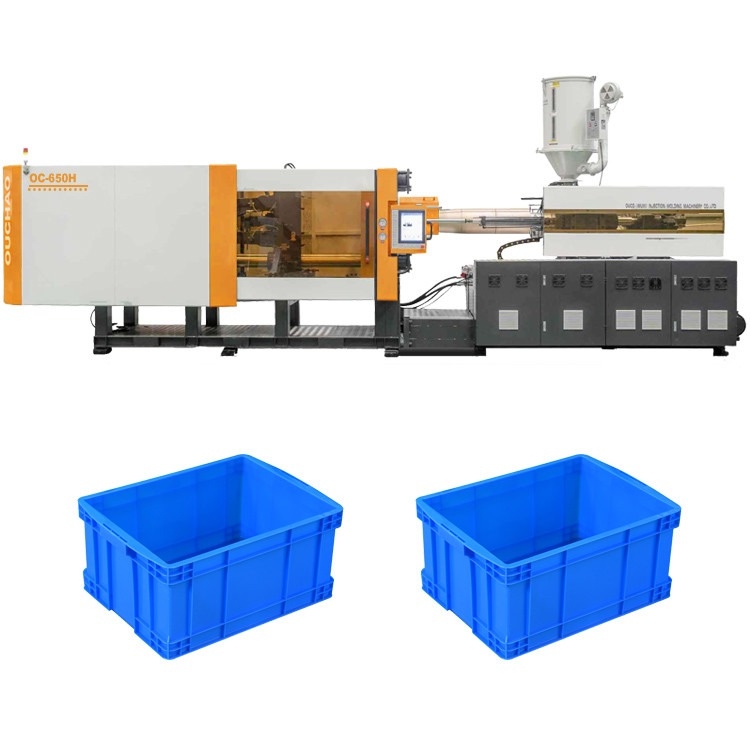

| Product Name: | 650T High Output Injection Moulding Machine To Manufacture Fruit Basket Box | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
OUCO injection moulding machine, with excellent quality, is the right assistant for your production line. We always adhere to the principle of quality first, from the selection of materials to the process, each step is subject to strict quality control.OUCO injection moulding machine is made of high-strength materials, the structure is solid, to ensure that the long time operation still maintains the accuracy and stability. Efficient heating and cooling systems make the injection process faster and increase productivity. In addition, our products also have excellent energy-saving performance, to reduce your production costs.OUCO injection moulding machine, with quality casting the future, is your reliable choice.
Product Advantages
1.Energy efficient: Our hydraulic systems feature an advanced energy-saving design that ensures energy consumption is minimised during operation. Efficient use of energy is achieved through precise control of flow and pressure, which reduces operating costs.
2.Environmentally friendly materials: We understand the importance of environmental protection, so in the manufacturing process of hydraulic systems, we use environmentally friendly materials to ensure that the product is not harmful to the environment in the process of use. This not only meets the environmental requirements of contemporary society, but also reflects our care for the earth's home.
3.Precise control: The hydraulic system has a high degree of precise control ability, which can ensure the stable operation and precise operation of the equipment. This precise control not only improves the production efficiency, but also reduces the failure rate of the equipment, saving a lot of maintenance costs for the user.
4.High Reliability: Our hydraulic systems undergo strict quality control and durability testing to ensure that our products are highly reliable. Even under harsh working conditions, they can maintain stable performance and provide users with long-term reliable service.
Parameters
| MODEL | OCH-650T | |||||
| Clamping force (kN) | 6500 | |||||
| Space between tie bar (mm*mm) | 960*820 | |||||
| Max. mold thickness (mm) | 900 | |||||
| Min. mold thickness(mm) | 400 | |||||
| Opening stroke (mm) | 1150 | |||||
| Ejector stroke(mm) | 260 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 100 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3730 | |||||
| Shot weight (PS) g | 3602 | |||||
| Injection pressure(MPa) | 137 | |||||
| Injection speed (mm/s) | 93 | |||||
| Injection rate (g/s) | 706 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 950 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (kg) | 24 | |||||
| Machine size L×W×H (mm) | 9000*2100*2300 | |||||

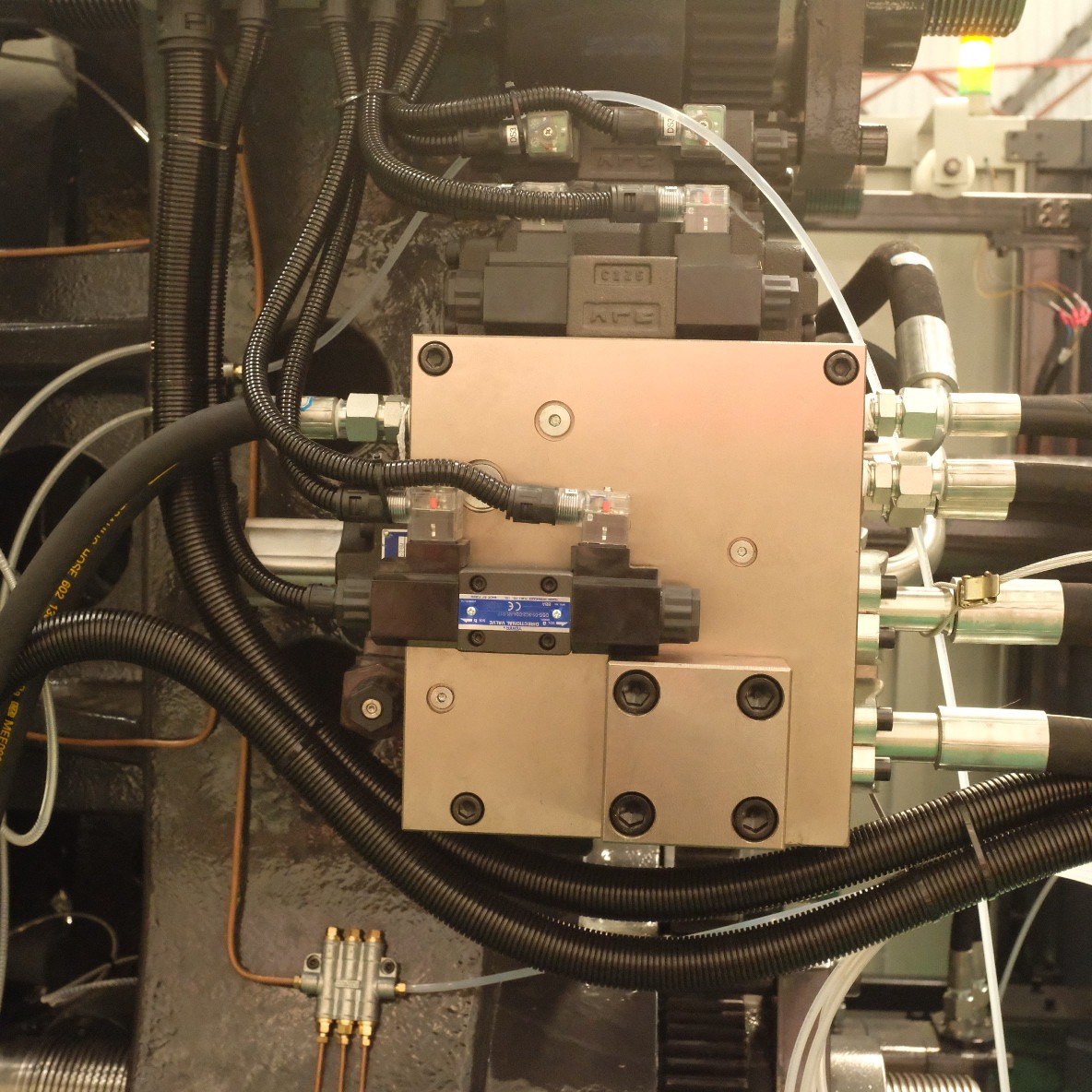

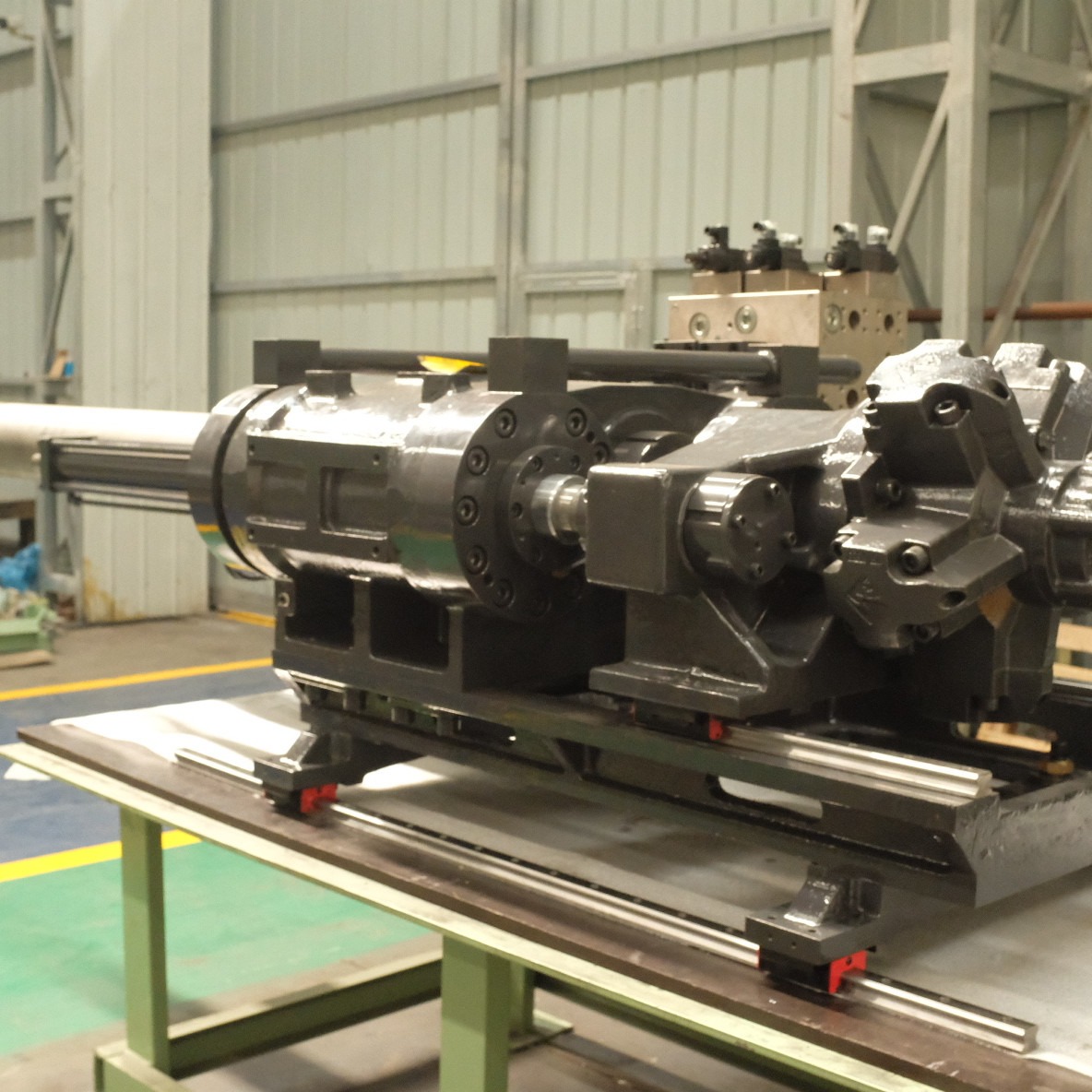

Detail Pictures
