| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-90UV |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

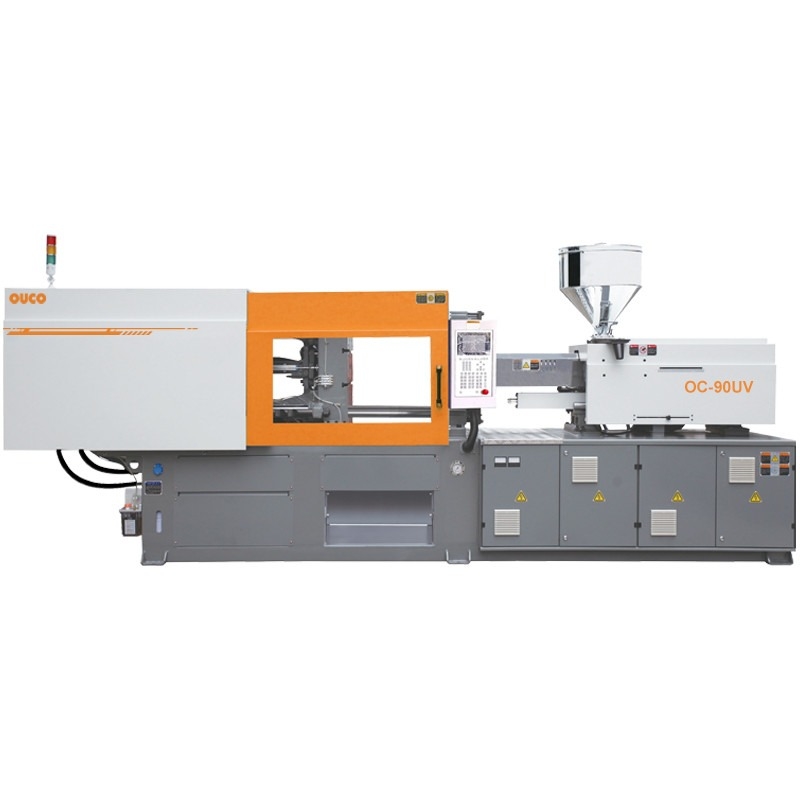

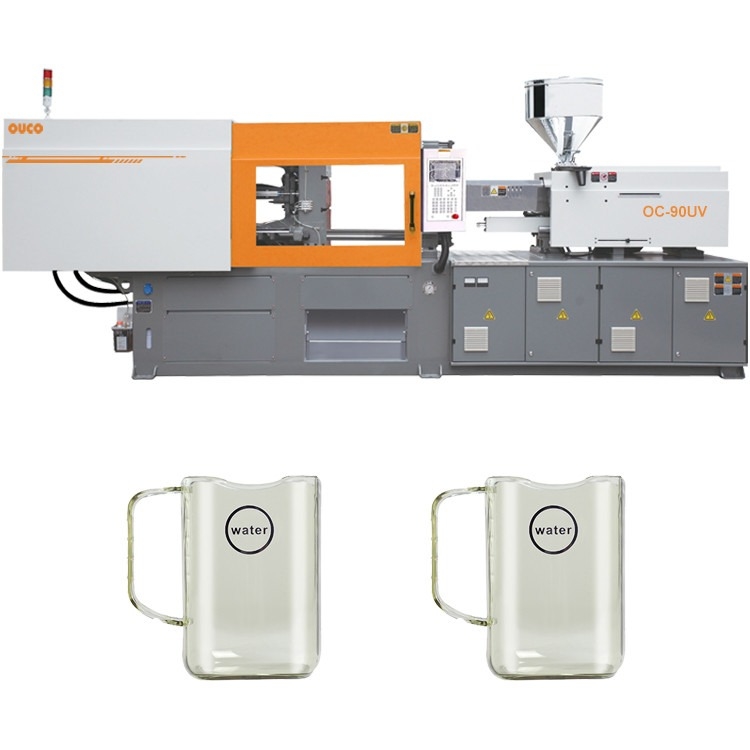

| Product Name: | 90T Blue Plastic Injection Molding Machine Making For Cups Hydraulic Servo High Speed High Output | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Hydraulic System Injection Moulding Machine,High Efficiency Injection Moulding Machine,90UV Injection Moulding Machine |
||
Welcome to OUCO injection moulding machines, which are the first choice in many industries due to their excellent performance and wide range of models. We offer a wide range of models from 150 tonnes to 2200 tonnes to meet your diverse injection moulding needs, and we can provide you with the most suitable solution, regardless of the size of your production. We understand that every production project has its own unique challenges and requirements, which is why our machines incorporate not only cutting-edge technology, but also precision engineering designed to provide you with unrivalled efficiency, reliability and versatility. These features will ensure that your production process reaches new levels of productivity and perfection, allowing for a smoother, more efficient production process. Our servo motor injection moulding machines have excellent operating performance and high reliability, capable of stable operation in a variety of complex environments, escorting you on the road to production. Choosing us is choosing a trustworthy partner, and we will work with you to create a better future.
Product Advantages
1. We adopt advanced servo motor technology, which is not only forward-looking and innovative, but also shows great precision and efficiency in operation. The servo motors respond to control signals in real time to achieve precise positioning and speed control, ensuring that every detail of the production process is accurate.
2. Our machine has a high pressure injection function, which can inject plastic material into the mould at high pressure in a very short time. This design ensures high repeatability of the injection, which improves production efficiency and also ensures product consistency and stability.
3. We attach importance to environmental protection and energy saving, so we pay special attention to energy saving and emission reduction in our design. Through the advanced energy management system, we can realise the precise distribution of energy, giving as much as needed and avoiding unnecessary waste. This design not only reduces power consumption, but also saves companies a lot of operating costs.
Parameters
| MODEL | OCM-90UV | |||||
| Clamping force (kN) | 900 | |||||
| Space between tie bar (mm*mm) | 360*360 | |||||
| Max. mold thickness (mm) | 150 | |||||
| Min. mold thickness(mm) | 360 | |||||
| Opening stroke (mm) | 320 | |||||
| Ejector stroke(mm) | 100 | |||||
| Ejector force forward(Kn) | 31 | |||||
| Screw diameter(mm) | 38 | |||||
| Screw L/D ratio | 18.5 | |||||
| Theoretical injection volume (cm3) | 181 | |||||
| Shot weight (PS) g | 170 | |||||
| Injection pressure(MPa) | 152 | |||||
| Injection speed (mm/s) | 130 | |||||
| Injection rate (g/s) | 130 | |||||
| Motor power (Kw) | 14 | |||||
| Oil tank capacity(L) | 160 | |||||
| Heater power (Kw) | 6.5 | |||||
| Machine Weight (kg) | 3100 | |||||
| Machine size L×W×H (mm) | 4200*1100*1700 | |||||

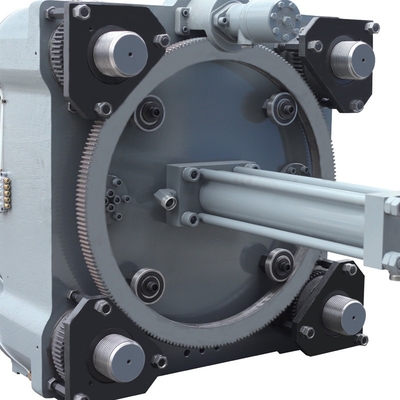

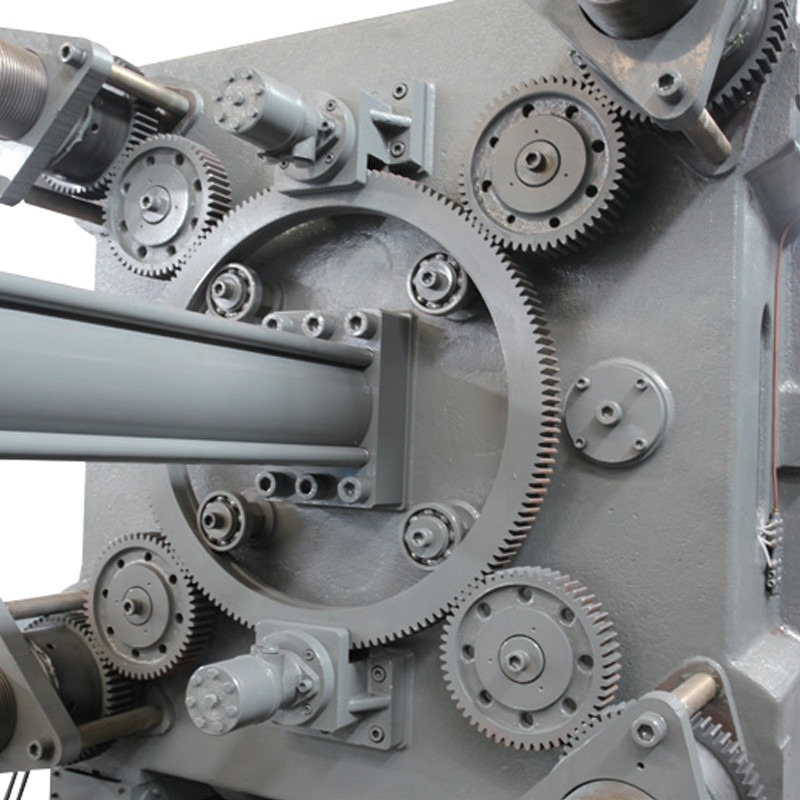

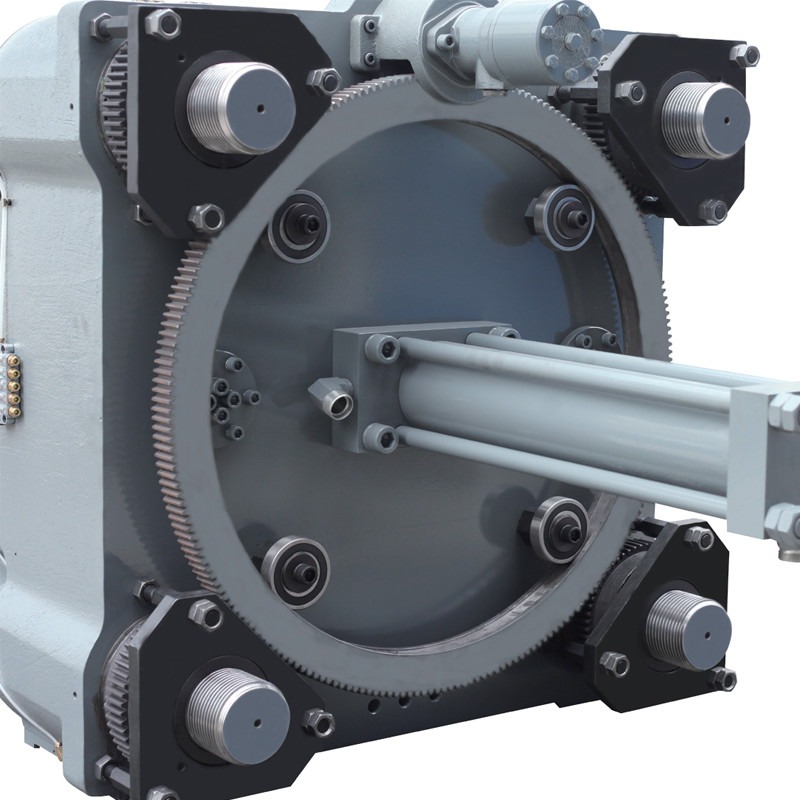

Detail Pictures
