Name: OUCO 800T CE Certification Injection Molding Machine For Garbage Cans
Brand: OUCO
SKU: OCM-800S
Rating: 4.6 (107 reviews)

Detail Information

Product Name:	OUCO 800T With CE Certification Popular Injection Molding Machine For The Production Of Garbage Cans	Type:	Automation
Function:	Plastic Parts Production	Motor:	Servo Energy Saving
Color:	Support Customization	Stable Performance:	Short Cycle Time
Clamping Way:	Hydraulic	Transport Package:	FCL
High Light:	CE Injection Molding Machine , Garbage Cans Injection Molding Machine , 800T Injection Molding Machine

Product Description

OUCO 800T CE Certification Injection Molding Machine Garbage Cans

OUCO Plastic Machinery, with advantageous geographical location and covering an area of 35,000 square metres, is a professional plastic injection moulding machine manufacturer. The company is mainly engaged in plastic injection moulding machine research and development, production and sales. There are dozens of units in stock and fast delivery. There is a special after-sales service centre, aiming to be close to customers and provide the most convenient and fast information and after-sales service. Jiangsu OUCO produces injection moulding machine models covering clamping force from 150 tonnes to 2200 tonnes, and injection volume from small 231 grams to maximum 19,336 grams. OUCO has passed ISO-9001 and European CE safety mark certification, and has won trust and reputation for its quality and innovation.OUCO's abbreviation combines the production concept with simplicity and atmosphere to show the elegance of a big factory. Based on our business philosophy, we provide our customers with the best products and the most satisfactory service at reasonable prices.

Product Advantages

The new servo-hydraulic energy-saving model for external curved clamping moulds is suitable for a wide range of applications. Industries include household goods, stationery, automotive, 3C and household appliances, especially multifunction printers, laptops or computer parts. Its large clamping stroke is also suitable for deeper plastic products.
1. The injection base adopts modular design, different matching types can be selected according to the injection volume. Adopting double-cylinder injection technology, the injection response is fast, the precision is high, and the products are long-lasting and durable.
2. New type of guide column injection base structure, no sagging of material tube, smooth and fast movement, high cleanliness.
3. Oil-free bearings are used in the moving parts of the platen and elbow joints, which greatly reduces the maintenance cost and provides a cleaner production environment.
4. Adopting servo energy saving system can reduce energy consumption up to 70%. It also saves energy and reduces emissions, giving as much energy as needed, greatly reducing the waste of resources.
5. Excellent precision control, the error of finished weight is about 0.7%~0.4%.

Parameters

MODEL		OCM-800S
Clamping force (kN)	800
Space between tie bar (mm*mm)	1070*970
Max. mold thickness (mm)	1200
Min. mold thickness(mm)	500
Opening stroke (mm)	2500
Ejector stroke(mm)	280
Ejector force forward(Kn)	212
Screw diameter(mm)	75
Screw L/D ratio	21
Theoretical injection volume (cm3)	1590
Shot weight (PS) g	1462
Injection pressure(MPa)	178
Injection speed (mm/s)	170
Injection rate (g/s)	750
Motor power (Kw)	107.5
Oil tank capacity(L)	900
Heater power (Kw)	30.02
Machine Weight (kg)	35
Machine size L×W×H (mm)	940026002600

Detail Pictures

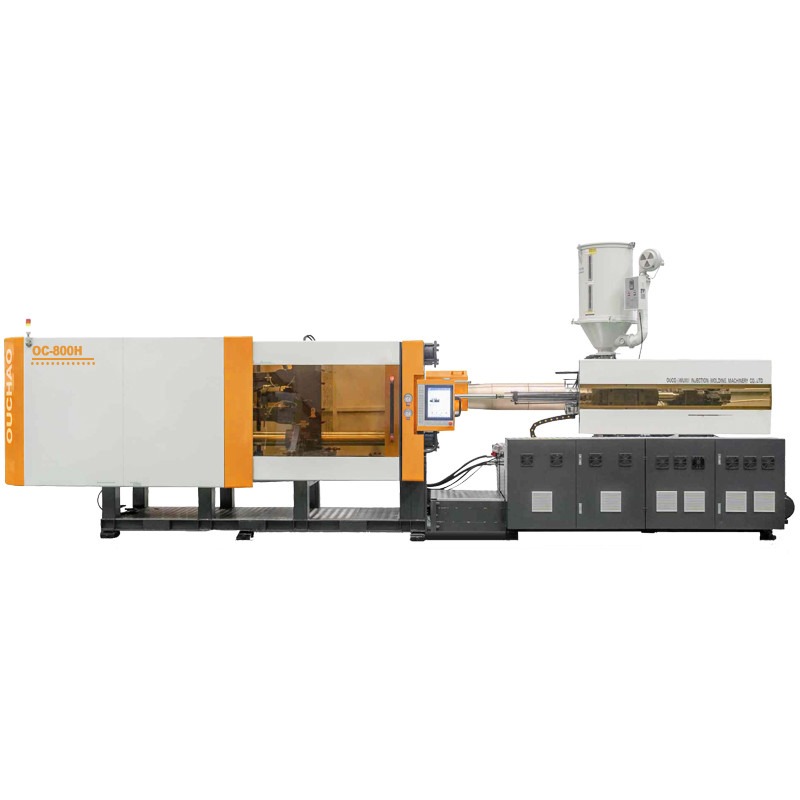

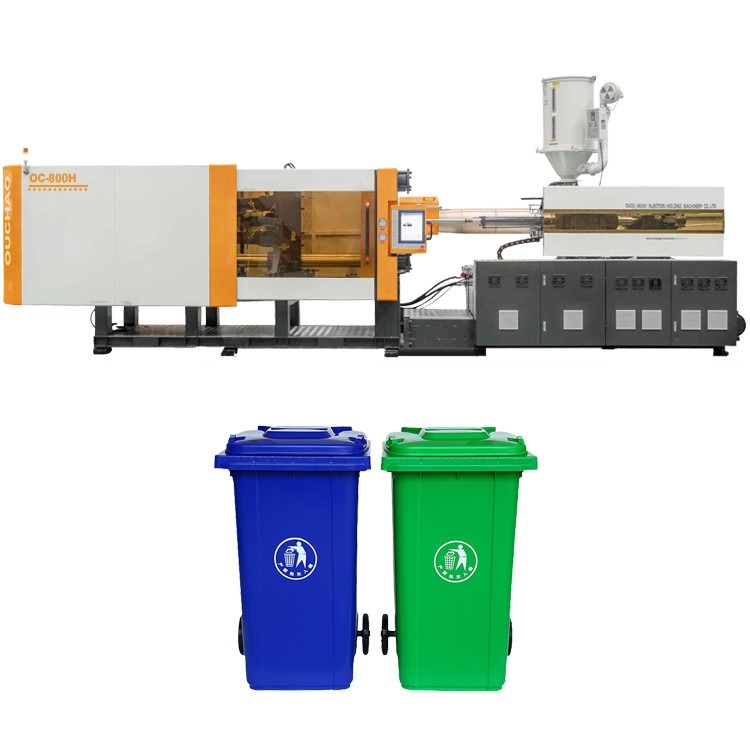

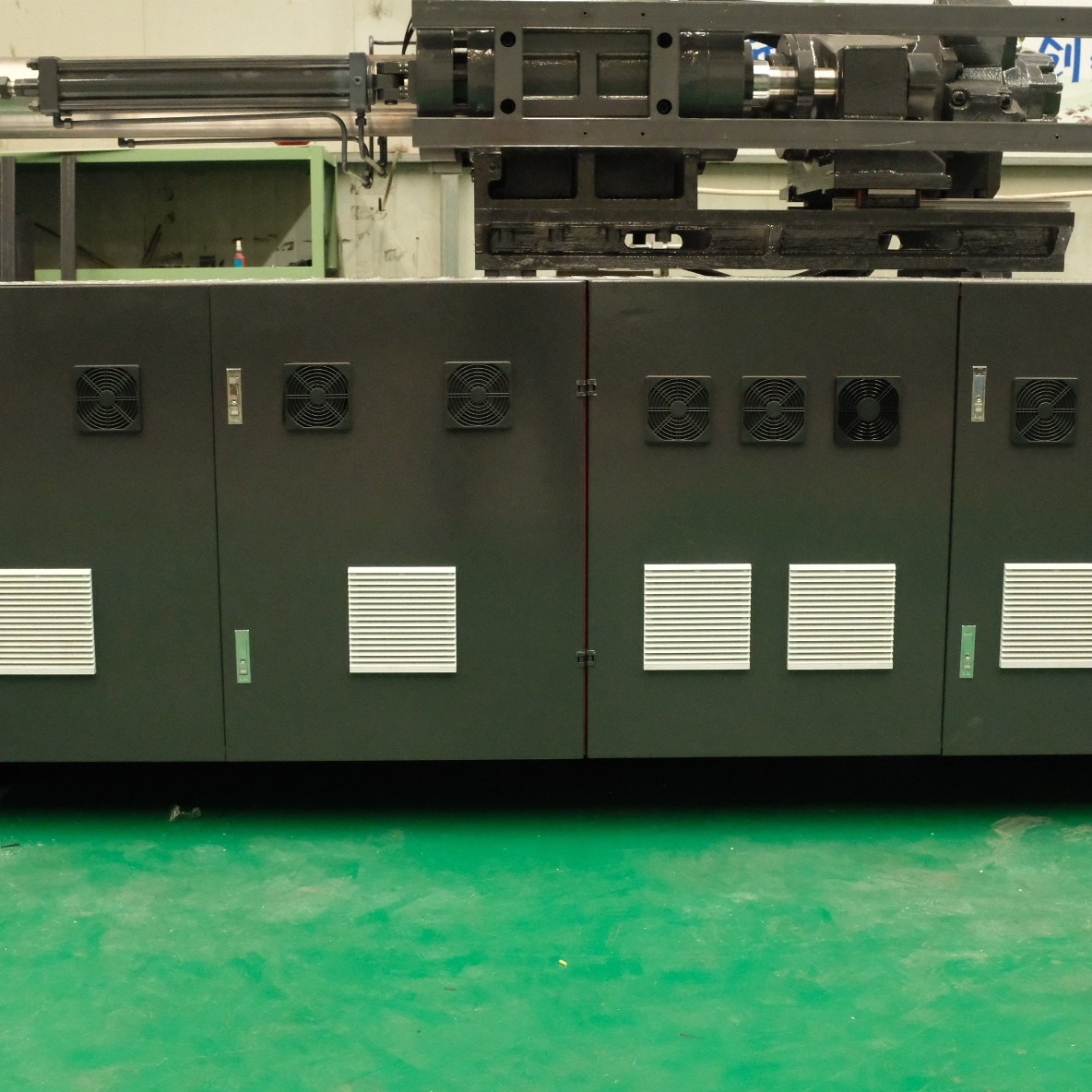

OUCO 800T CE Certification Injection Molding Machine For Garbage Cans 0

OUCO 800T CE Certification Injection Molding Machine For Garbage Cans 4

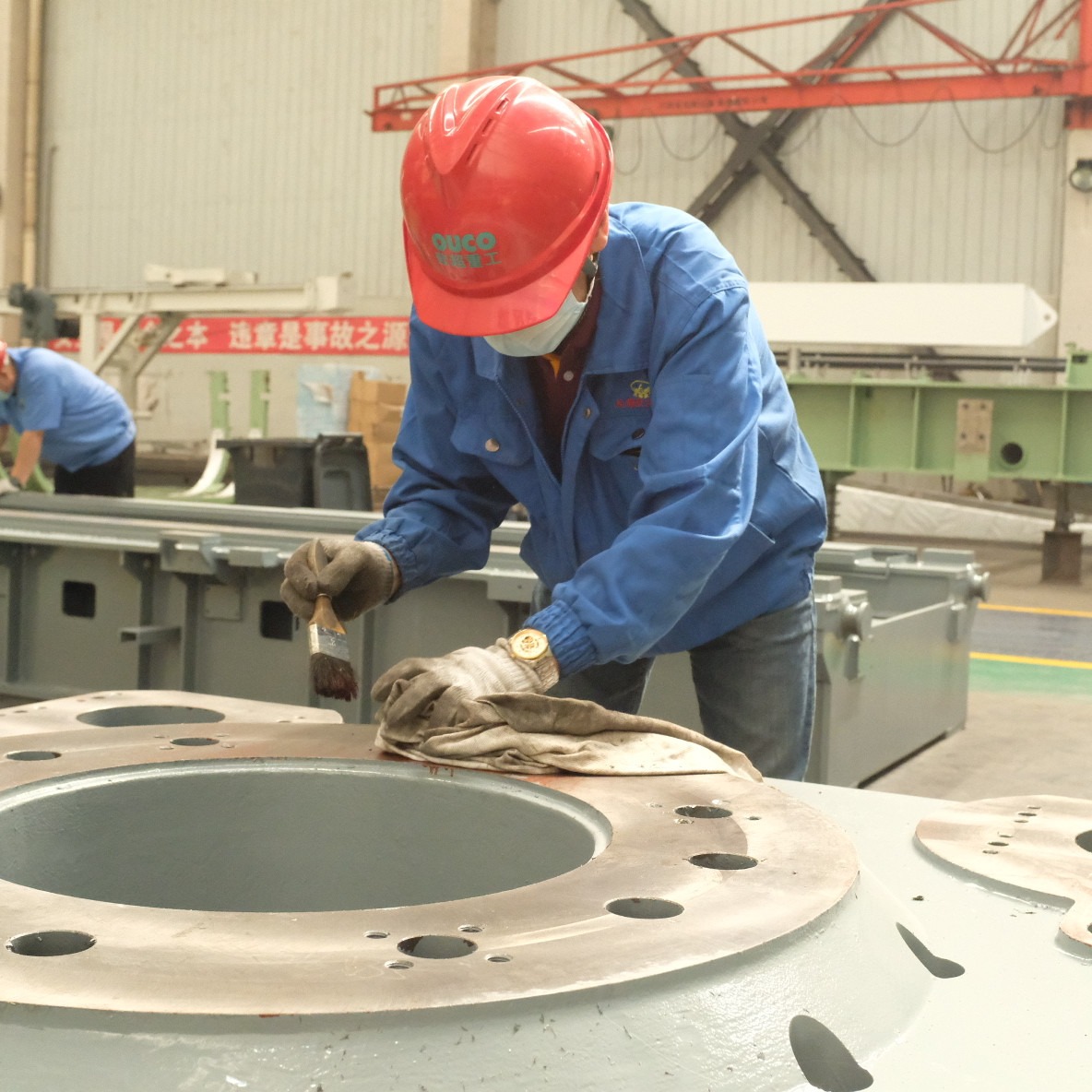

Company Profile

Tag:

Place of Origin:	China
Brand Name:	OUCO
Certification:	CE, ISO9001:2008, SGS
Model Number:	OCM-800S

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Nude
Delivery Time:	2 months
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	500 sets/year
