| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-650H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

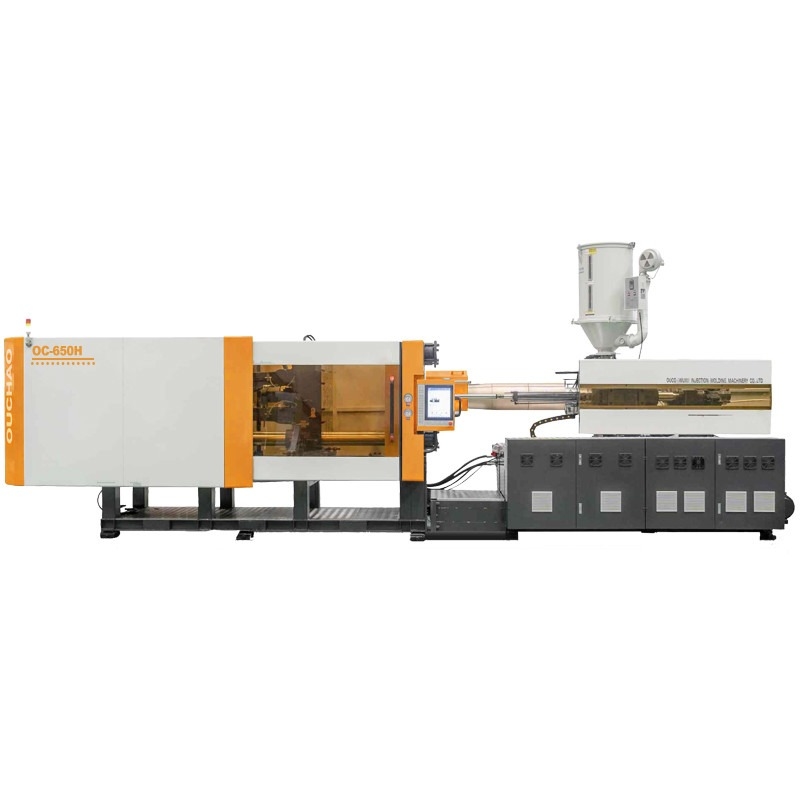

| Product Name: | Advanced 650 Injection Moulding Machine For Manufacturing High-Precision, Durable And Wear-Resistant Storage Boxes | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Energy Saving Injection Moulding Machine,Fruit Boxes Injection Moulding Machine,650T Injection Moulding Machine |
||
About us
Our company is a high-tech enterprise integrating R&D, production and sales.
- Established in 2021
- Factory area 35000 square metres
- Annual production capacity of 3000 precision injection moulding machines
- CE certified manufacturer
Our company produces
- High-grade precision injection moulding machines
- 150T to 2200T Servo Injection Moulding Machines
- Customised PET bottle injection moulding machine
- PVC Pipe Fitting Injection Moulding Machine
- Fruit Basket Injection Moulding Machine
- Two Plate Injection Moulding Machine
Our motto is to be determined to pursue perfection. ouco is always committed to meet the needs of our customers and create greater value for them. We make constant efforts in energy-saving, automation, precision and humanisation of machines to bring the best using experience to our customers.Reasonable structure can be disassembled, easy maintenance, good rigidity, high strength, small deformation.The whole machine is cost-effective.Direct pressure external curved centre clamping structure, more stable running curve, faster smoothing process and longer service life.adopting Taiwan Hongxun computer, speed control is more sensitive, high efficiency and high response, which is conducive to the protection of moulds.
Product Advantages
1. Direct pressure external curved centre clamping structure, more stable running curve, faster smoothing process and longer service life.
2. Reasonable structure can be disassembled, easy maintenance, good rigidity, high strength, small deformation.
3. adopting Taiwan Hongxun computer, speed control is more sensitive, high efficiency and high response, which is conducive to the protection of moulds.
4. lubrication automatic detection alarm function, can effectively ensure that each node lubrication in place.
5. compared with similar products, we have a larger mould opening stroke, can process more plastic products, the whole machine is cost-effective.
Parameters
| MODEL | OCH-650T | |||||
| Clamping force (kN) | 6500 | |||||
| Space between tie bar (mm*mm) | 960*820 | |||||
| Max. mold thickness (mm) | 900 | |||||
| Min. mold thickness(mm) | 400 | |||||
| Opening stroke (mm) | 1150 | |||||
| Ejector stroke(mm) | 260 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 100 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3730 | |||||
| Shot weight (PS) g | 3602 | |||||
| Injection pressure(MPa) | 137 | |||||
| Injection speed (mm/s) | 93 | |||||
| Injection rate (g/s) | 706 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 950 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (kg) | 24 | |||||
| Machine size L×W×H (mm) | 9000*2100*2300 | |||||

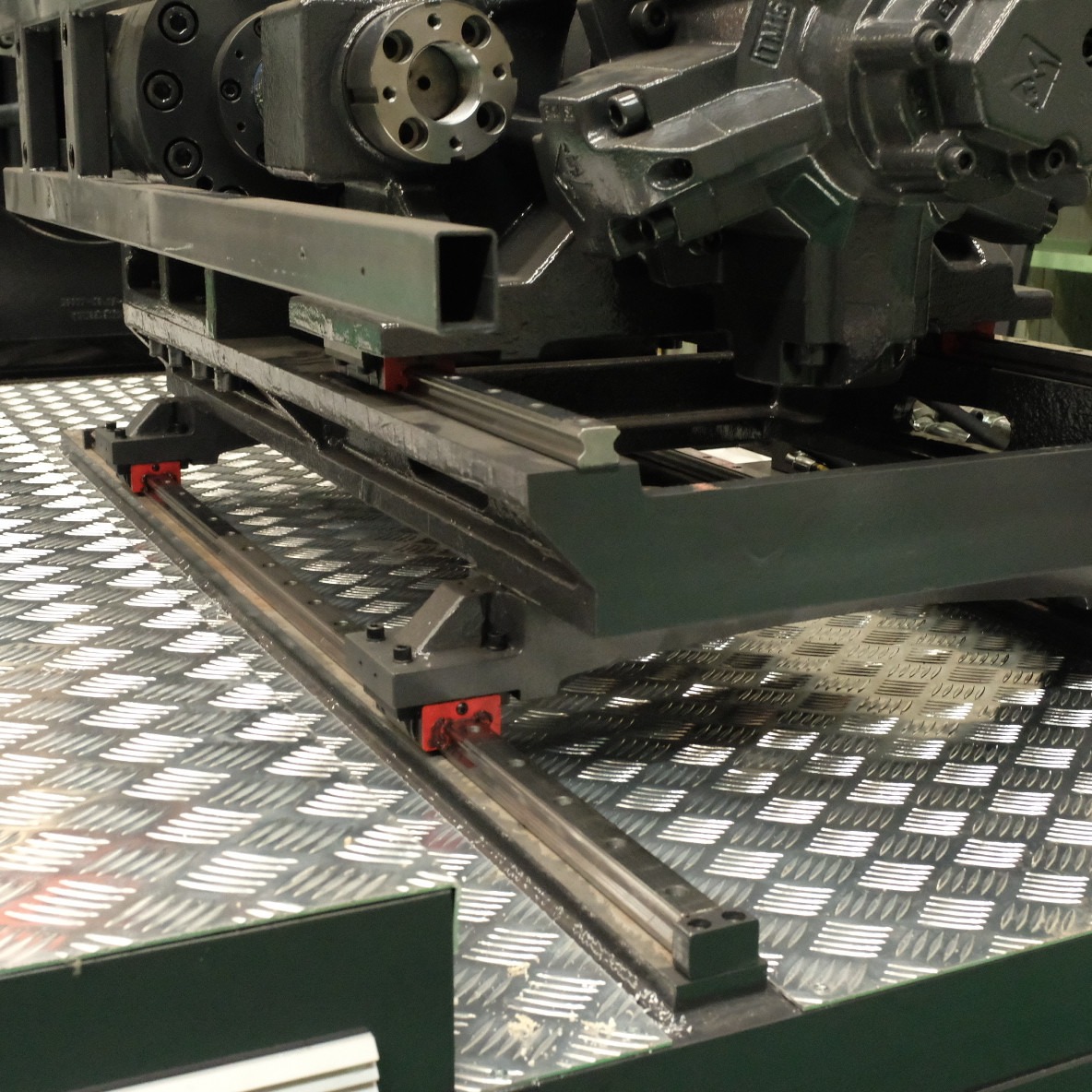

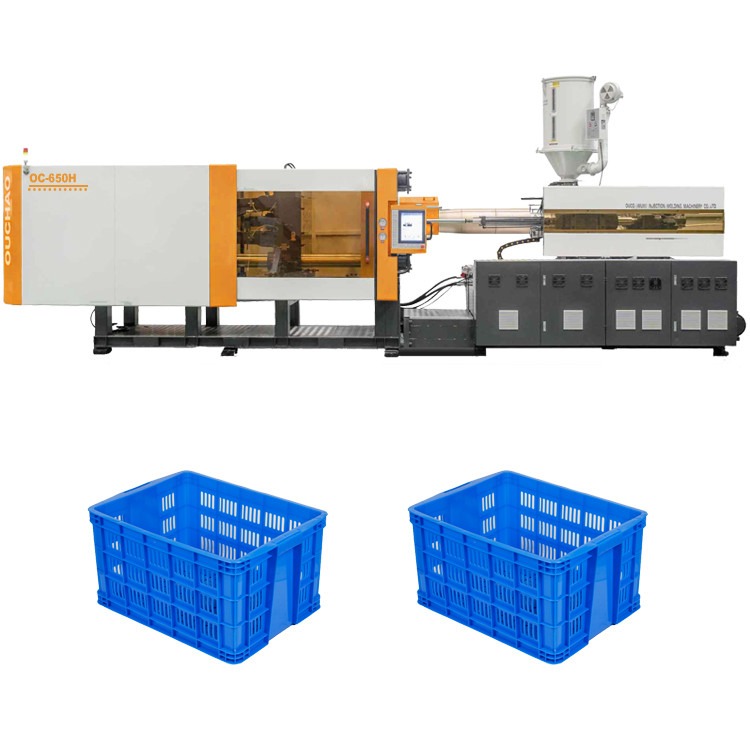

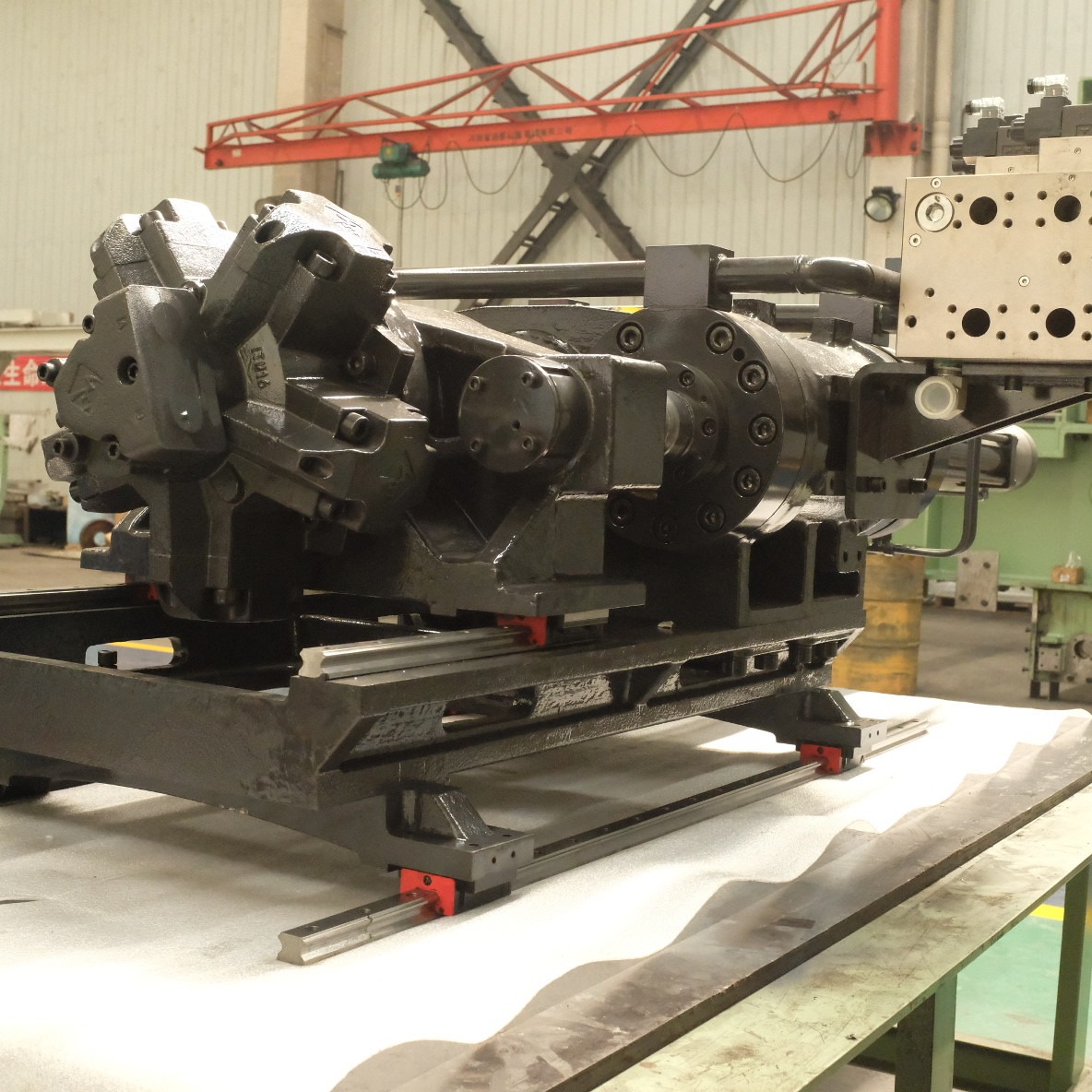

Detail Pictures
