Product Name: | Saves Your Labor OUCO Fruit Basket Plastic Injection Molding Machine | Type: | Automation |
---|---|---|---|
Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
Color: | Support Customization | Stable Performance: | Short Cycle Time |
Clamping Way: | Hydraulic | Transport Package: | FCL |
High Light: | Fruit Basket Plastic Injection Molding Machine,Saves Labor Plastic Injection Molding Machine |
With the development of the plastic products market, customers have put forward higher requirements for the performance and output of injection molding machines, so we respond proactively.
On the basis of the standard high-speed series, we have enriched the factory product line. For the production of disposable tableware lunch boxes, we have launched a high-speed thin-wall series injection molding machine. This series of products adopts an advanced servo motor control system, which can achieve high-speed injection and rapid molding to ensure that the plastic fills and cools in the mold quickly enough to avoid defects. For the production of large plastic products such as plastic pallets, we have launched a two-platen injection molding machine. This series of products has the characteristics of large clamping force and large injection volume, and can meet your production needs for large plastic products. With the molds you have purchased, production efficiency will reach new heights.
At OUCO, we regard every production link as key, from the strict screening of raw materials and accessories, to the fine polishing of the production process, to the strict testing of finished products, we always pursue quality standards of excellence. With our machines, you will feel at ease and it will no longer be difficult to achieve return on your initial investment.
Product Advantages

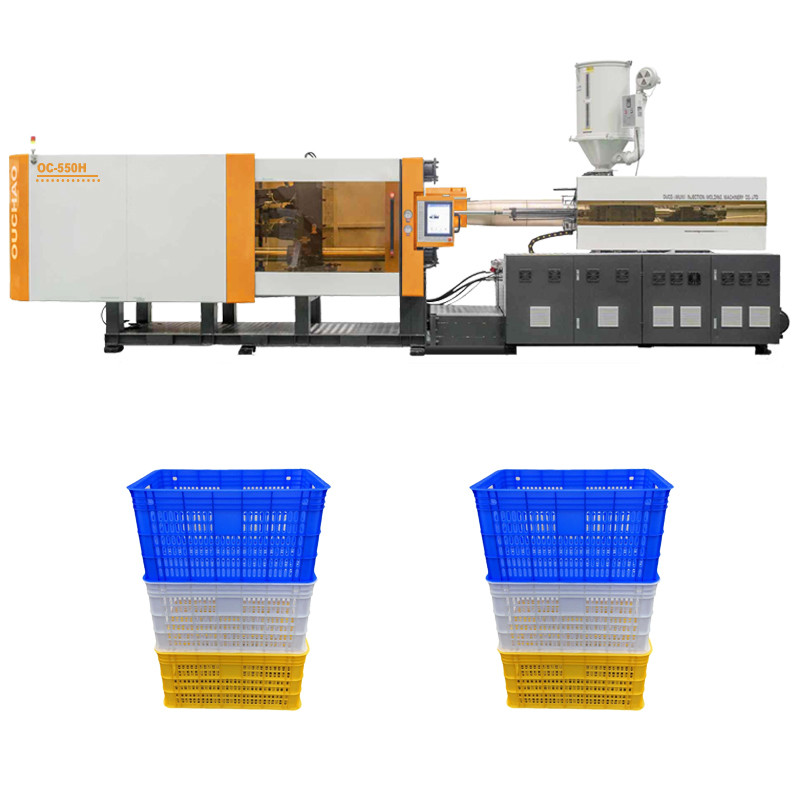

As one of our superior machine products, OC-550H has advantages that cannot be ignored when producing plastic fruit baskets, it is well received by purchasing customers.
Compared with traditional injection molding structures, our machines produce products with higher precision and less flash, saving you the manpower and material resources spent on trimming products. And the ultra-long mold opening stroke of OC-550H can accommodate larger and deeper molds and facilitate the removal of finished products. The machine is equipped with a special computer of Taiwan's Techmation, which has a high response speed, can monitor various data in real time. It is convenient for operators to implement monitoring data. The panel data is intuitive and provides multiple language options, making it easy to operate.
In addition, the parts accuracy and assembly process of the OC-550H injection molding machine have reached European standards. The overall performance of the machine has been improved, and it has also injected efficient and stable productivity into your production line, and the output of plastic products has also increased.
Parameters
MODEL | OC550H | |||||
Clamping force (kN) | 5500 | |||||
Space between tie bar (mm*mm) | 860*800 | |||||
Max. mold thickness (mm) | 800 | |||||
Min. mold thickness(mm) | 300 | |||||
Opening stroke (mm) | 1010 | |||||
Ejector stroke(mm) | 210 | |||||
Ejector force forward(Kn) | 103 | |||||
Screw diameter(mm) | 80 | |||||
Screw L/D ratio | 22 | |||||
Theoretical injection volume (cm3) | 2060 | |||||
Shot weight (PS) g | 1991 | |||||
Injection pressure(MPa) | 150 | |||||
Injection speed (mm/s) | 133 | |||||
Injection rate (g/s) | 646 | |||||
Motor power (Kw) | 75 | |||||
Oil tank capacity(L) | 850 | |||||
Heater power (Kw) | 41 | |||||
Machine Weight (T) | 20 | |||||
Machine size L×W×H (m) | 8.7*2.0*2.1 |

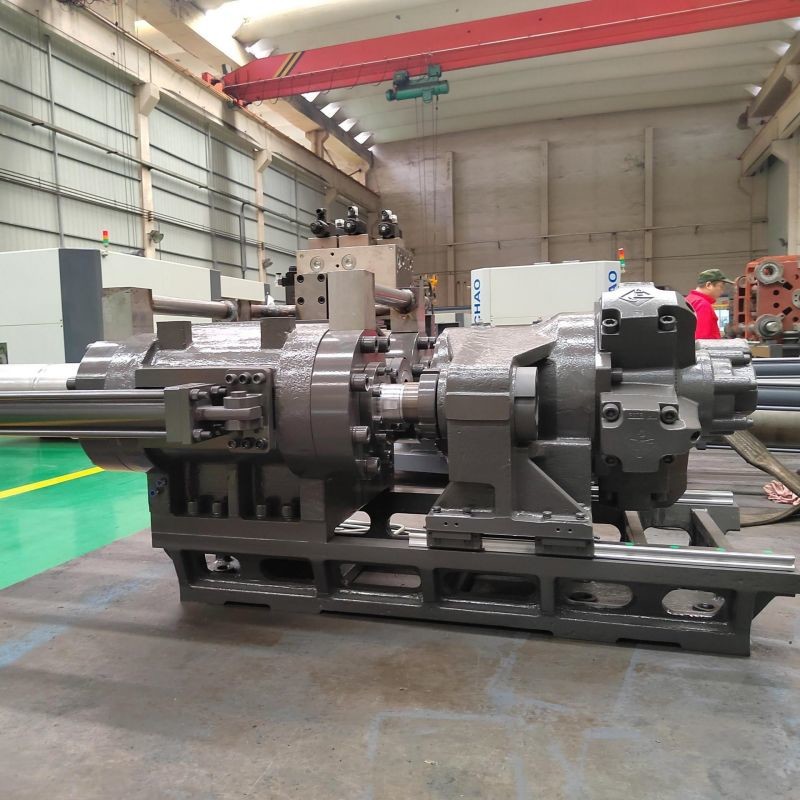

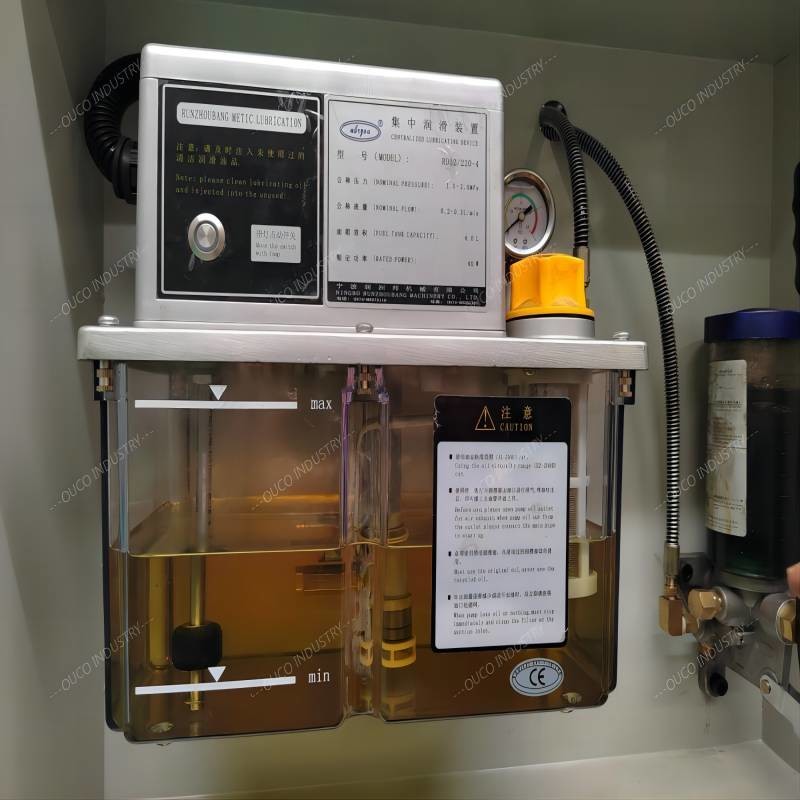

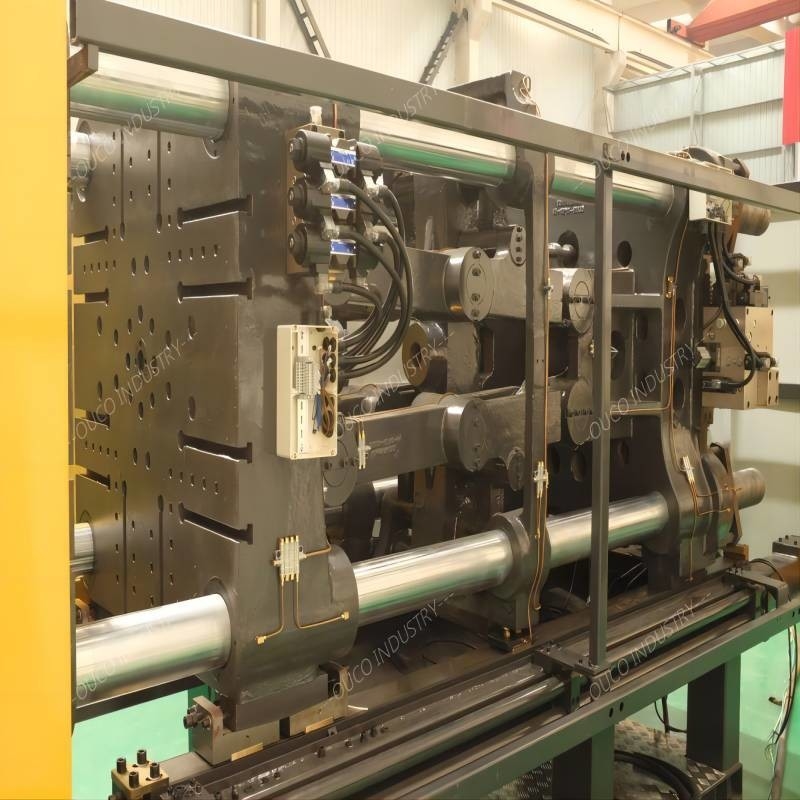

Detail Pictures
