| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-800S |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

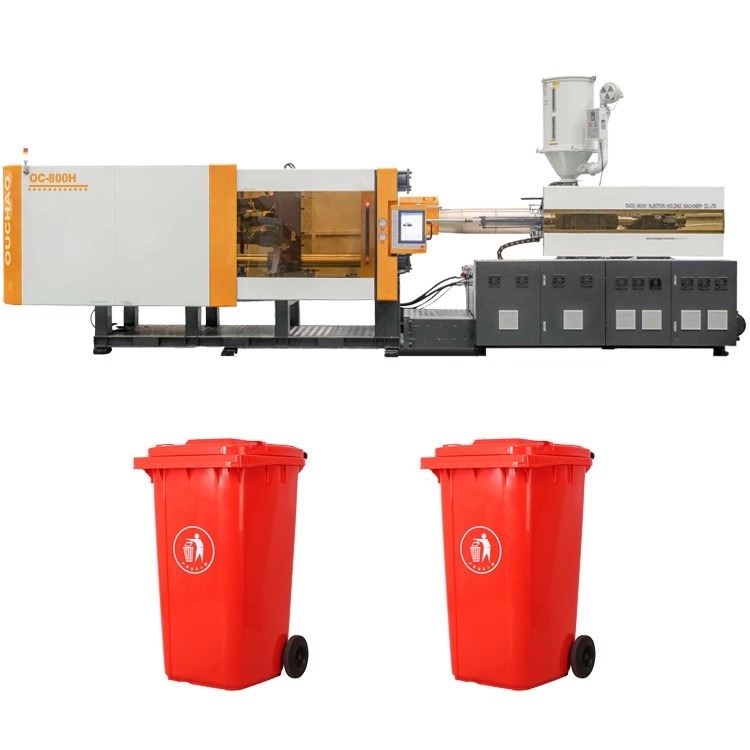

| Product Name: | OUCO 800T For The Production Of Garbage Cans With Support For Customized Injection Moulding Machines | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Production Garbage Cans Injection Moulding Machines,Customized Injection Moulding Machines,Garbage Cans injection machine |
||
Product Advantages
Parameters
| MODEL | OCM-800S | |||||
| Clamping force (kN) | 800 | |||||
| Space between tie bar (mm*mm) | 1070*970 | |||||
| Max. mold thickness (mm) | 1200 | |||||
| Min. mold thickness(mm) | 500 | |||||
| Opening stroke (mm) | 2500 | |||||
| Ejector stroke(mm) | 280 | |||||
| Ejector force forward(Kn) | 212 | |||||
| Screw diameter(mm) | 75 | |||||
| Screw L/D ratio | 21 | |||||
| Theoretical injection volume (cm3) | 1590 | |||||
| Shot weight (PS) g | 1462 | |||||
| Injection pressure(MPa) | 178 | |||||
| Injection speed (mm/s) | 170 | |||||
| Injection rate (g/s) | 750 | |||||
| Motor power (Kw) | 107.5 | |||||
| Oil tank capacity(L) | 900 | |||||
| Heater power (Kw) | 30.02 | |||||
| Machine Weight (kg) | 35 | |||||
| Machine size L×W×H (mm) | 9400*2600*2600 | |||||

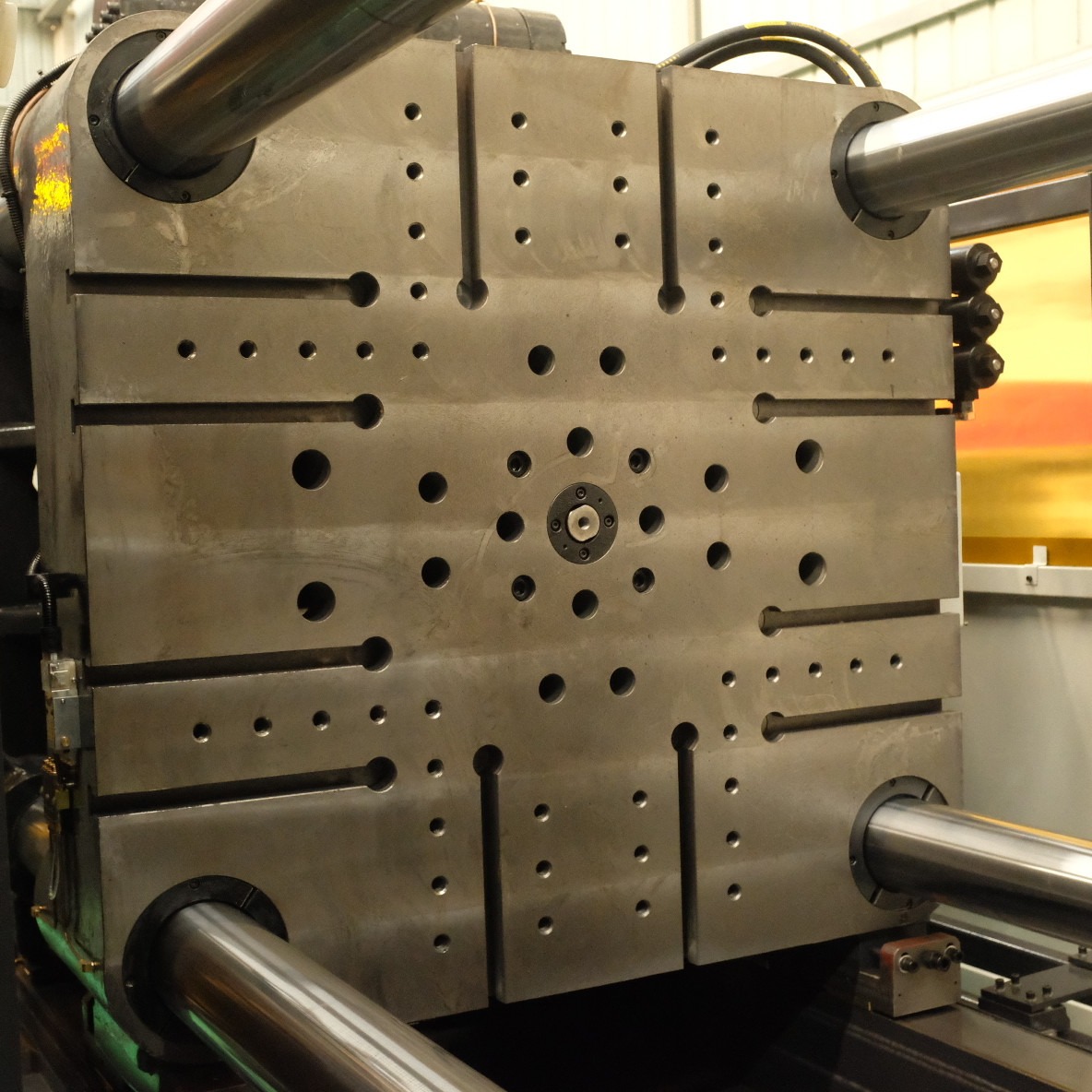

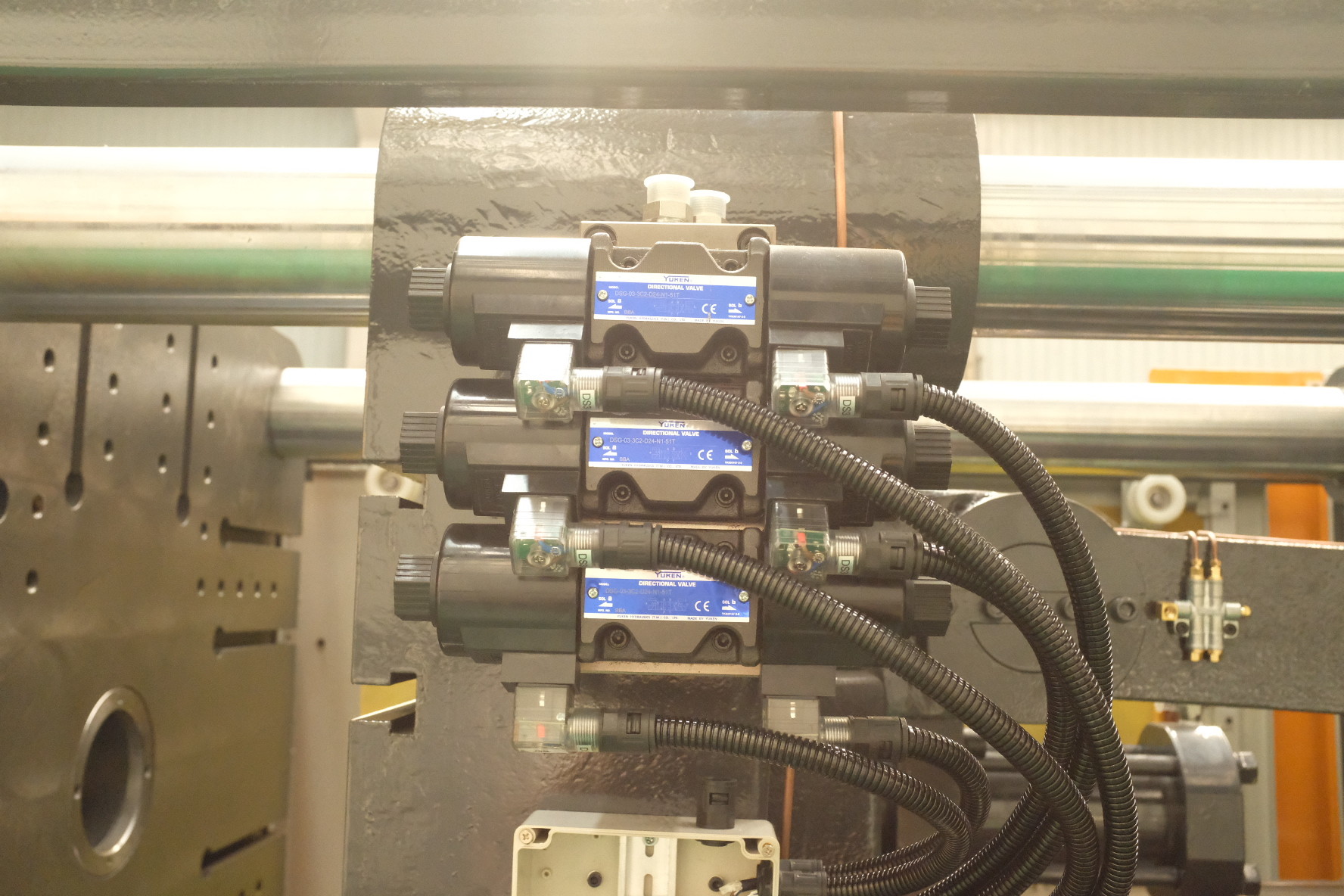

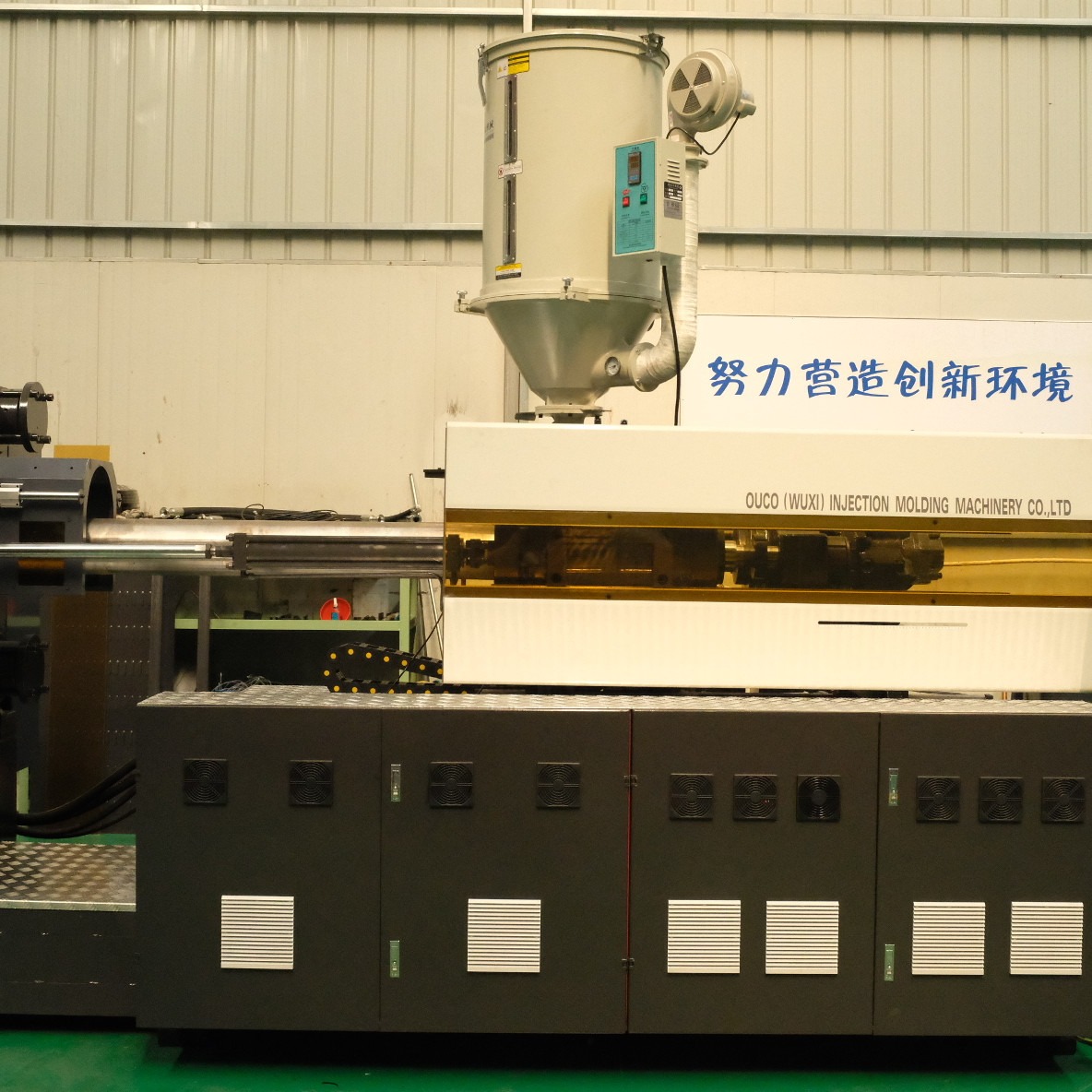

Detail Pictures
