| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-480H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

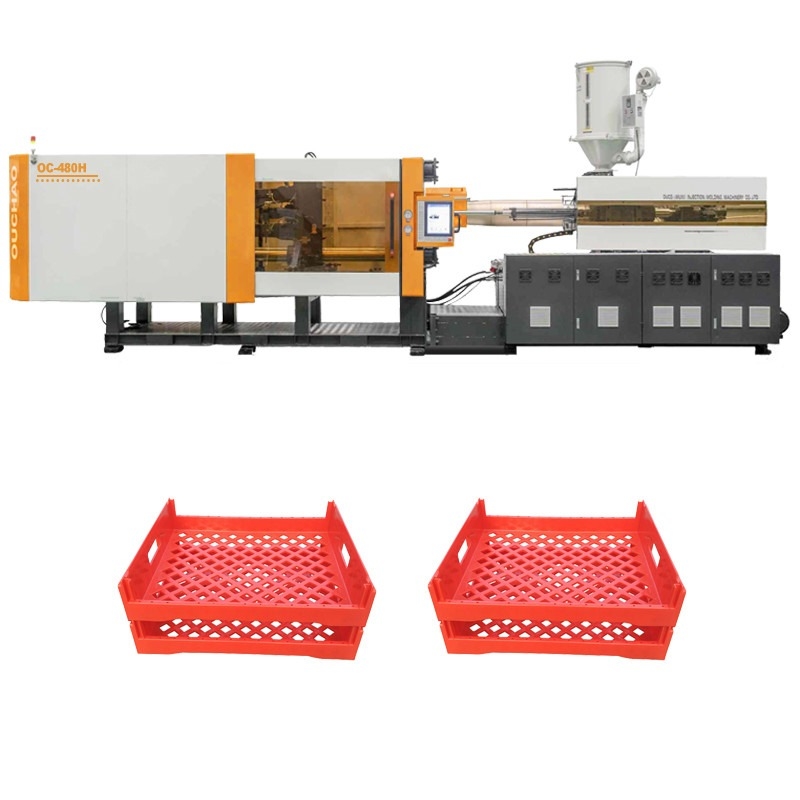

| Product Name: | 480T Bread Transportation Plastic Basket Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | High Efficiency Plastic Injection Molding Machine,Hydraulic Servo Plastic Injection Molding Machine,High Efficiency hydraulic injection molding machine |
||
Company Advantages
We are an injection molding machine manufacturer located in Jiangsu Province. As a source manufacturer, we always keep in mind to bring customers cost-effective injection molding machines to promote our products and achieve a win-win situation for customers and us.
In order to better produce and transport injection molding machines, we introduced large gantry and milling machines and other finishing equipment into the workshop. Injection molding machine parts such as frames and templates are all produced by us. During the assembly process, they will undergo rigorous multiple rounds of testing, and the products will not be shipped until they meet the requirements. Customers will also feel more assured when using high-quality injection molding machines.
In our injection molding machine team, there are experienced veterans with more than 20 years of experience. Others will also ask these experienced people for various technical questions when they are working, just to bring customers more suitable and professional solutions and provide support for your production.
Product Advantages
OC-480H, 480 tons of clamping force ensures that the mold can be tightly closed during the injection process to prevent the product from flashing, thereby ensuring the accuracy of the product. The injection unit is designed with a linear guide rail, which has little obstruction during operation, precise and stable injection control, and improves the quality of the product.
We have equipped the injection molding machine with a control computer from Taiwan TECHMATION. By setting it in advance on the control panel, it can accurately control every process of production and issue an alarm for abnormal data. In conjunction with other auxiliary machines, it can quickly achieve automated production, meet large-scale production needs, and save you labor costs.
The technicians took into account that customers may lack time to maintain the machine after starting production. In this regard, when planning the oil circuit and interface design, we strive to standardize it, which is convenient and easy for your later machine maintenance.
Parameters
| MODEL | OC480H | ||||
| Clamping force (kN) | 4800 | ||||
| Space between tie bar (mm*mm) | 820*780 | ||||
| Max. mold thickness (mm) | 730 | ||||
| Min. mold thickness(mm) | 300 | ||||
| Opening stroke (mm) | 900 | ||||
| Ejector stroke(mm) | 190 | ||||
| Ejector force forward(Kn) | 80 | ||||
| Screw diameter(mm) | 70 | ||||
| Screw L/D ratio | 22 | ||||
| Theoretical injection volume (cm3) | 1597 | ||||
| Shot weight (PS) g | 1543 | ||||
| Injection pressure(MPa) | 208 | ||||
| Injection speed (mm/s) | 106 | ||||
| Injection rate (g/s) | 396 | ||||
| Motor power (Kw) | 65 | ||||
| Oil tank capacity(L) | 680 | ||||
| Heater power (Kw) | 35 | ||||
| Machine Weight (Ton) | 18 | ||||
| Machine size L×W×H (m) | 8.6*2.1*2.2 | ||||

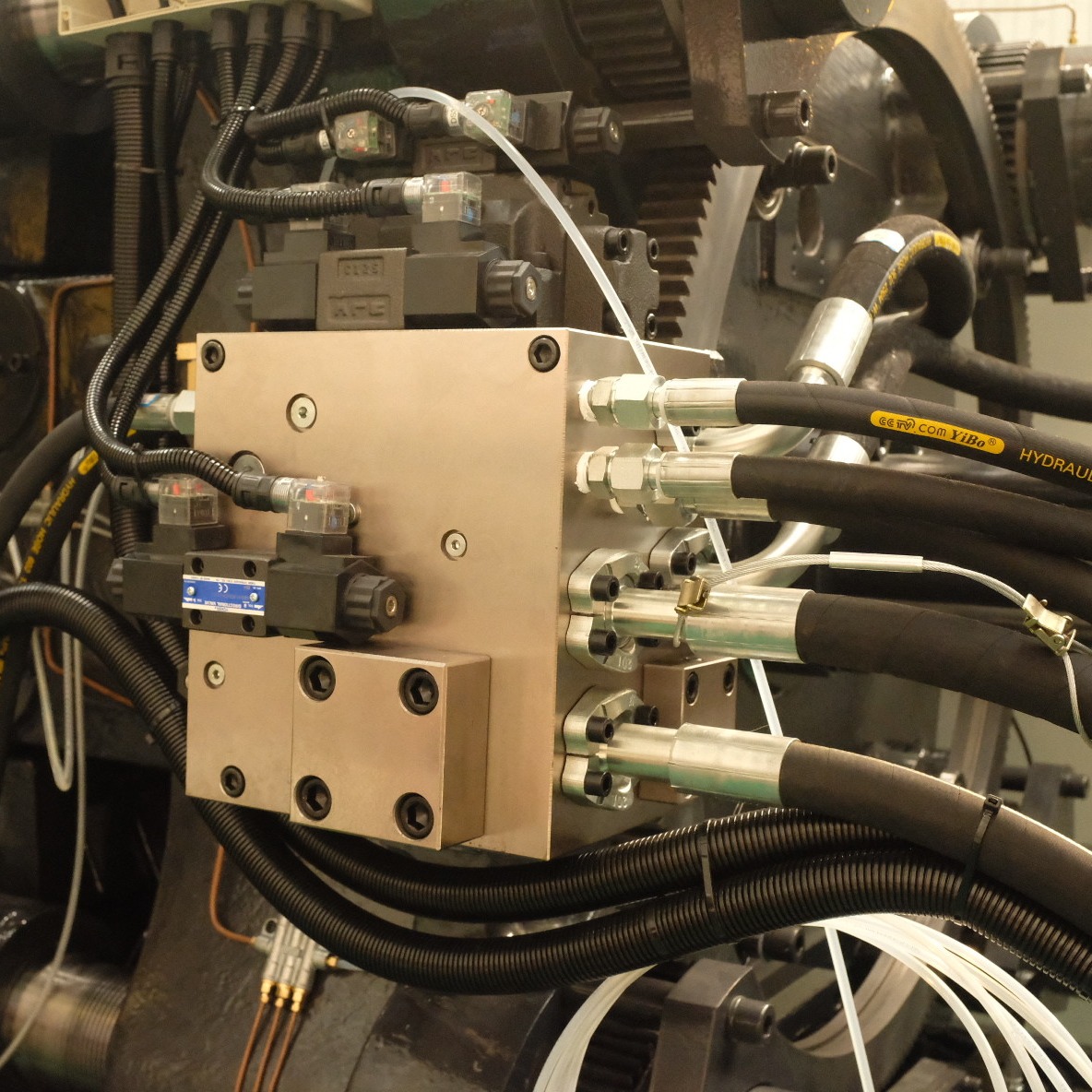

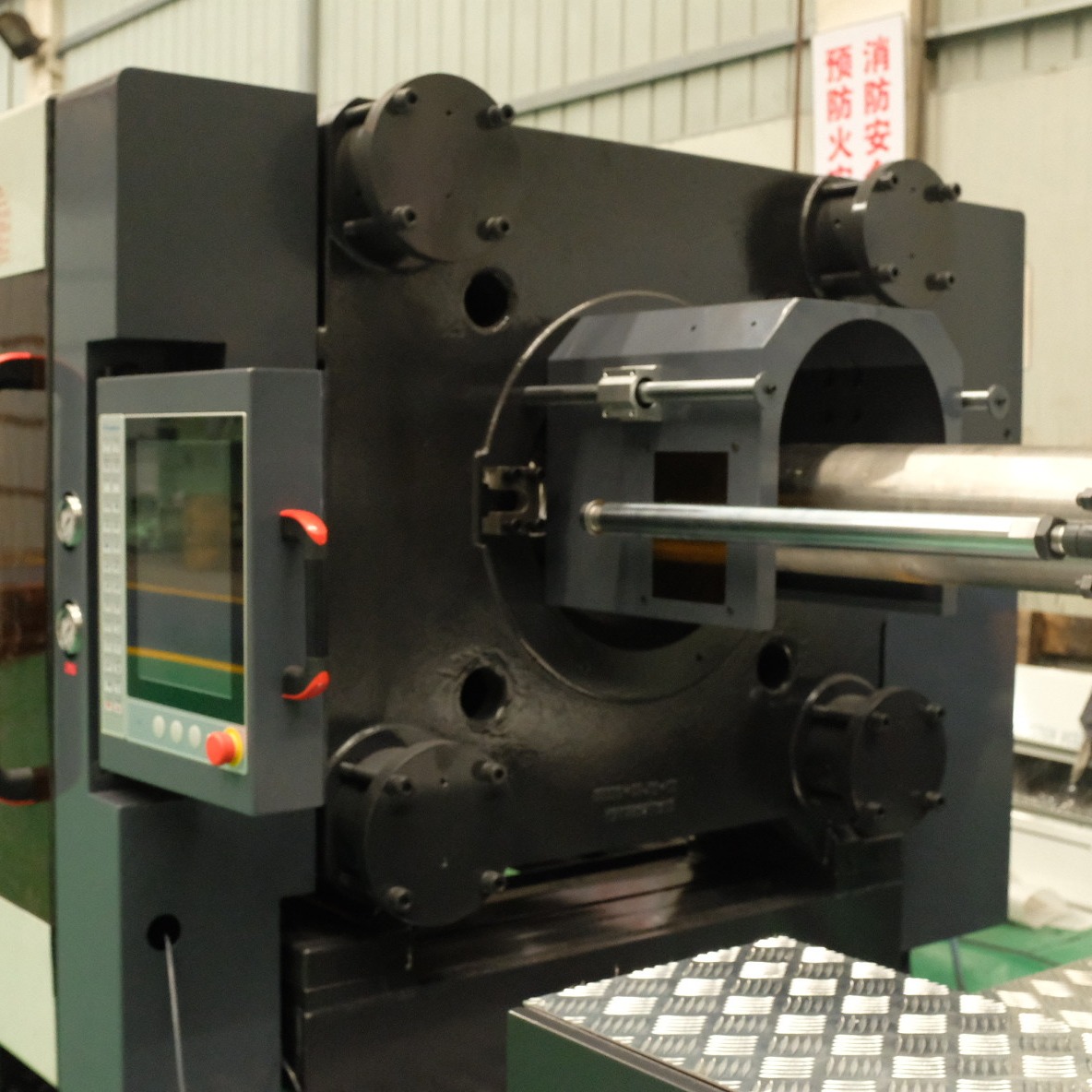

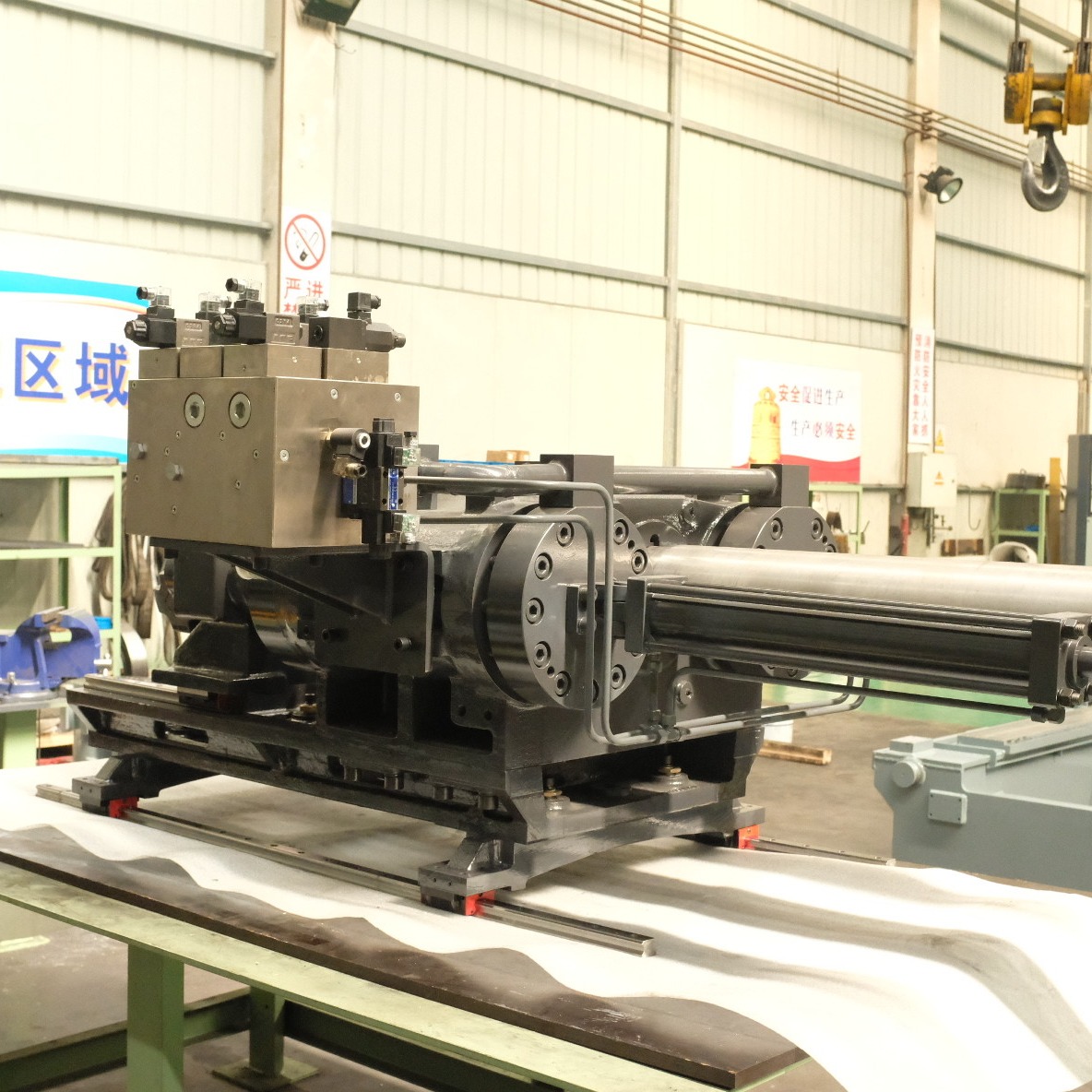

Detail Pictures
