| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-130UV |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

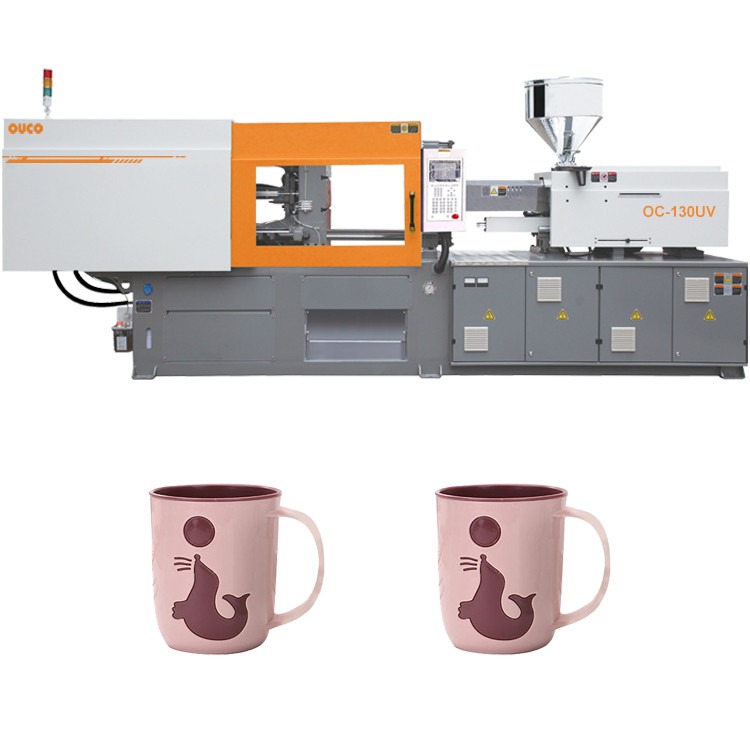

| Product Name: | 130UV Orange Injection Molding Machine For High Precision Production Of Plastic Cups | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Plastic Cups Injection Molding Machine,High Precision Production Injection Molding Machine,High Precision Production hydraulic molding machine |
||
OUCO injection moulding machine has added new functions to its heritage to meet the production requirements of energy saving and emission reduction. We uphold the entrepreneurial spirit of 'technology-based, speed wins', focus on quality, service and innovation, and make every effort to build a modern enterprise with green and intelligent equipment.
Product Advantages
OUCO's injection molding machines for the production of plastic cups are efficient, stable and extremely cost-effective! The centre clamping structure has up to 100% clamping force compared to traditional inward turning machines. Not only producers save raw materials, but also uniform force, less deformation and protect the template. Fully optimised hydraulic system to improve efficiency and ensure stable quality.
Parameters
| MODEL | OCM-130UV | |||||
| Clamping force (kN) | 1300 | |||||
| Space between tie bar (mm*mm) | 410*410 | |||||
| Max. mold thickness (mm) | 450 | |||||
| Min. mold thickness(mm) | 160 | |||||
| Opening stroke (mm) | 380 | |||||
| Ejector stroke(mm) | 120 | |||||
| Ejector force forward(Kn) | 42 | |||||
| Screw diameter(mm) | 45 | |||||
| Screw L/D ratio | 18.5 | |||||
| Theoretical injection volume (cm3) | 302 | |||||
| Shot weight (PS) g | 274 | |||||
| Injection pressure(MPa) | 138 | |||||
| Injection speed (mm/s) | 130 | |||||
| Injection rate (g/s) | 130 | |||||
| Motor power (Kw) | 18.5 | |||||
| Oil tank capacity(L) | 200 | |||||
| Heater power (Kw) | 7.7 | |||||
| Machine Weight (kg) | 4000 | |||||
| Machine size L×W×H (mm) | 4600*1200*1800 | |||||

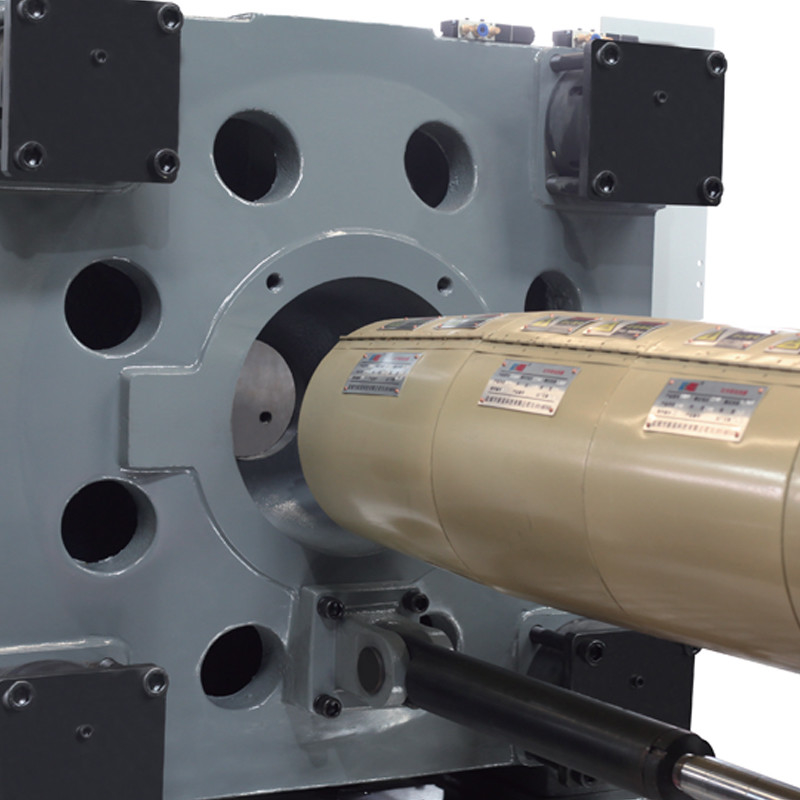

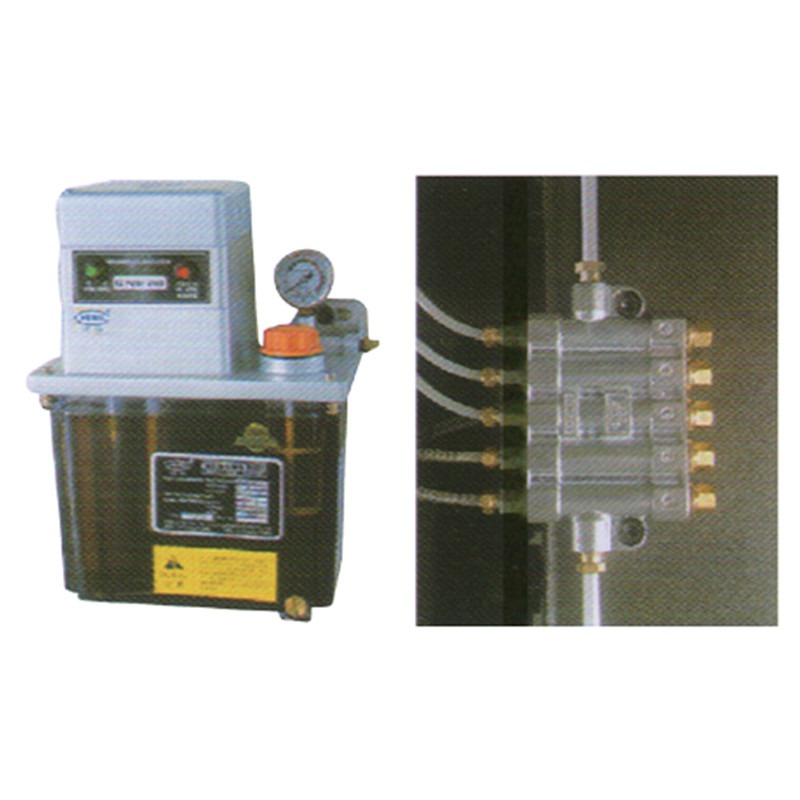

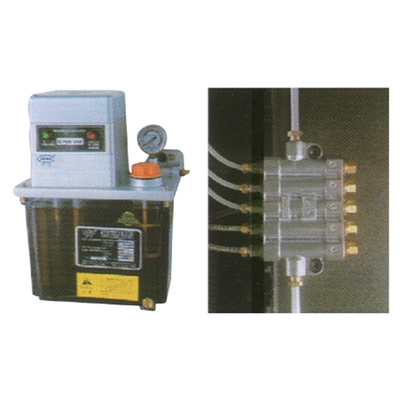

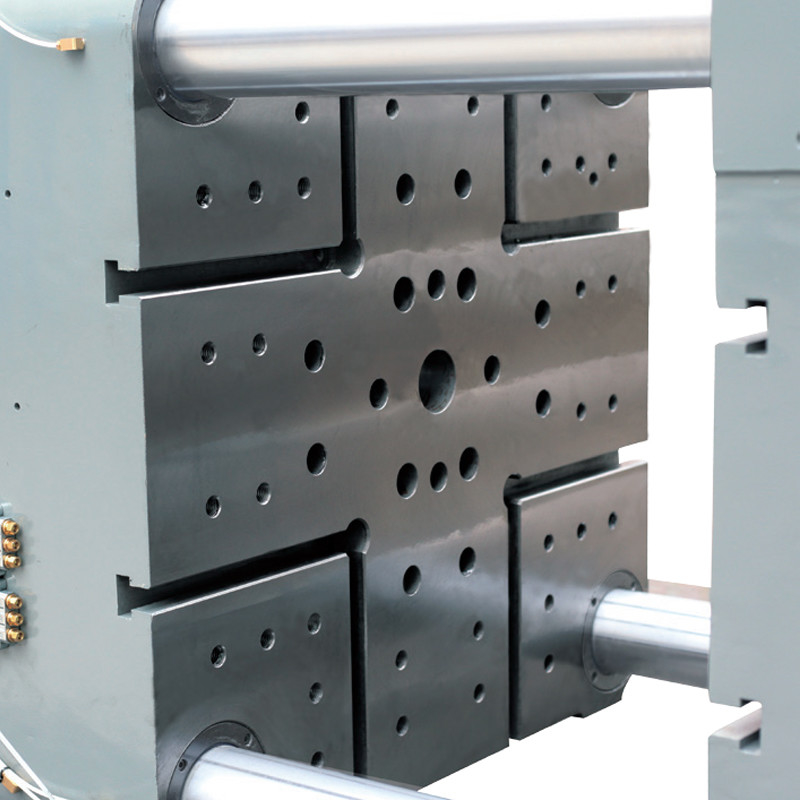

Detail Pictures
