| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-250UV |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

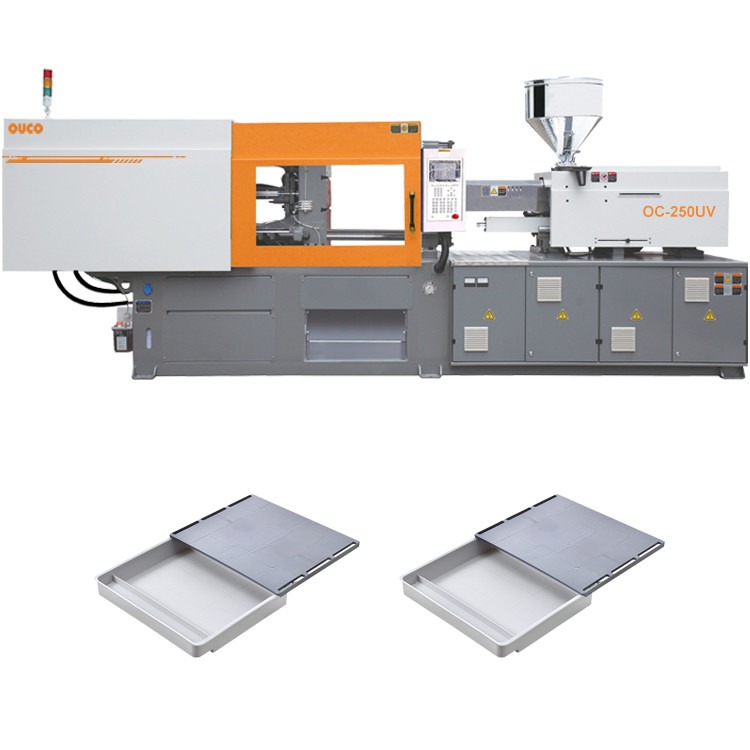

| Product Name: | 250T Injection Molding Machine For Efficient Production Of High Quality Storage Boxes | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 250t plastic injection molding machine,storage boxes plastic injection molding machine,production storage boxes plastic injection machine |
||
OUCO, a well-known company located in the beautiful and rich city of Wuxi, has long been a leader in the injection moulding machine industry. With dedication, professionalism and superb technology, they continue to promote the development of injection moulding machine technology and show the world the power of Made in China.OUCO's product line is rich and diversified, with models ranging from 280T to 800T, and providing solutions to meet various needs, whether they are large or small injection moulding machines. These injection moulding machines are widely used in various applications such as automotive, electronics, home appliances, toys, packaging, etc., and have won the recognition of the market for their high efficiency, stability and accuracy.Servo motor driven rotation:OUCO90UV injection moulding machine adopts servo motor to drive the rotary part. This design not only makes the rotary positioning very accurate and agile, but also significantly improves the machine's operating efficiency and stability. The advantage of the servo motor is that it can provide precise position control and speed control, which ensures high accuracy and efficiency in the injection moulding process.
Product Advantages
1.Computer real-time control: The whole machine movement of OUCO90UV injection moulding machine is controlled by computer in real time. This means that the machine is able to operate precisely according to the pre-set product process requirements. The computer control system can accurately control all the movements of the injection moulding machine, such as opening and closing the mould, injection, pressure holding, etc., so as to ensure the quality of the product and production efficiency.
2.Servo motor driven rotation:OUCO90UV injection moulding machine adopts servo motor to drive the rotary part. This design not only makes the rotary positioning very accurate and agile, but also significantly improves the machine's operating efficiency and stability. The advantage of the servo motor is that it can provide precise position control and speed control, which ensures high accuracy and efficiency in the injection moulding process.
Parameters
| MODEL | OCH-250T | |||||
| Clamping force (kN) | 2500 | |||||
| Space between tie bar (mm*mm) | 570*570 | |||||
| Max. mold thickness (mm) | 580 | |||||
| Min. mold thickness(mm) | 220 | |||||
| Opening stroke (mm) | 520 | |||||
| Ejector stroke(mm) | 150 | |||||
| Ejector force forward(Kn) | 67 | |||||
| Screw diameter(mm) | 65 | |||||
| Screw L/D ratio | 18 | |||||
| Theoretical injection volume (cm3) | 863 | |||||
| Shot weight (PS) g | 785 | |||||
| Injection pressure(MPa) | 132 | |||||
| Injection speed (mm/s) | 106 | |||||
| Injection rate (g/s) | 583 | |||||
| Motor power (Kw) | 28.7 | |||||
| Oil tank capacity(L) | 380 | |||||
| Heater power (Kw) | 16 | |||||
| Machine Weight (t) | 8 | |||||
| Machine size L×W×H (m) | 6.2*1.5*2.2 | |||||

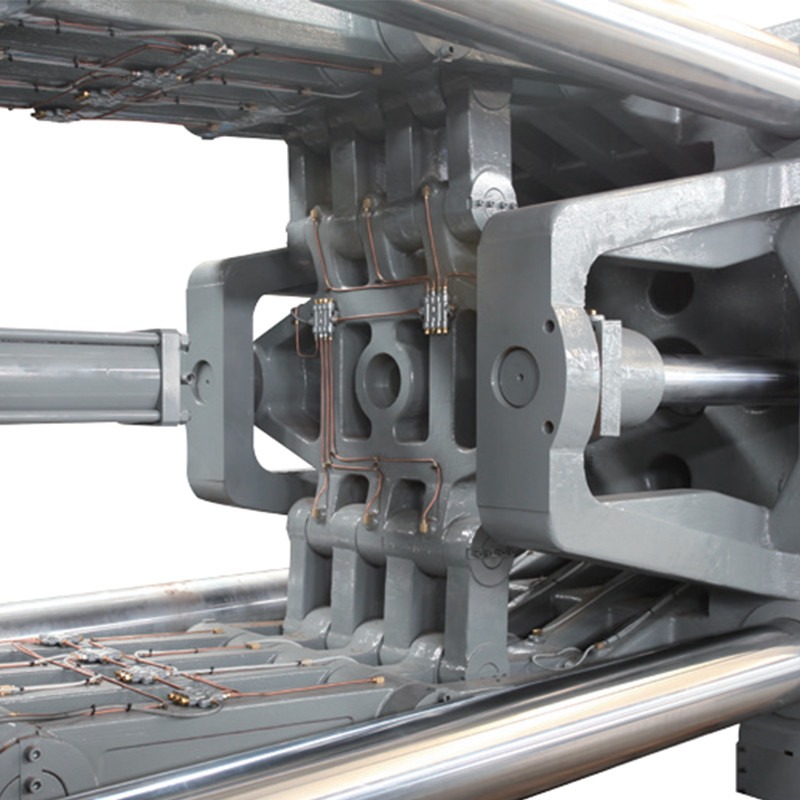

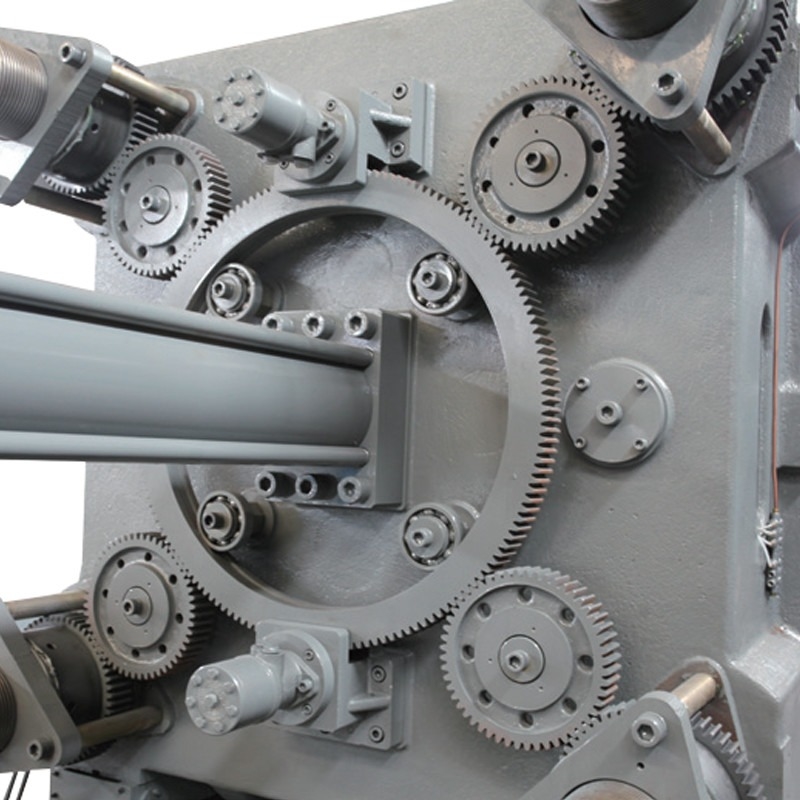

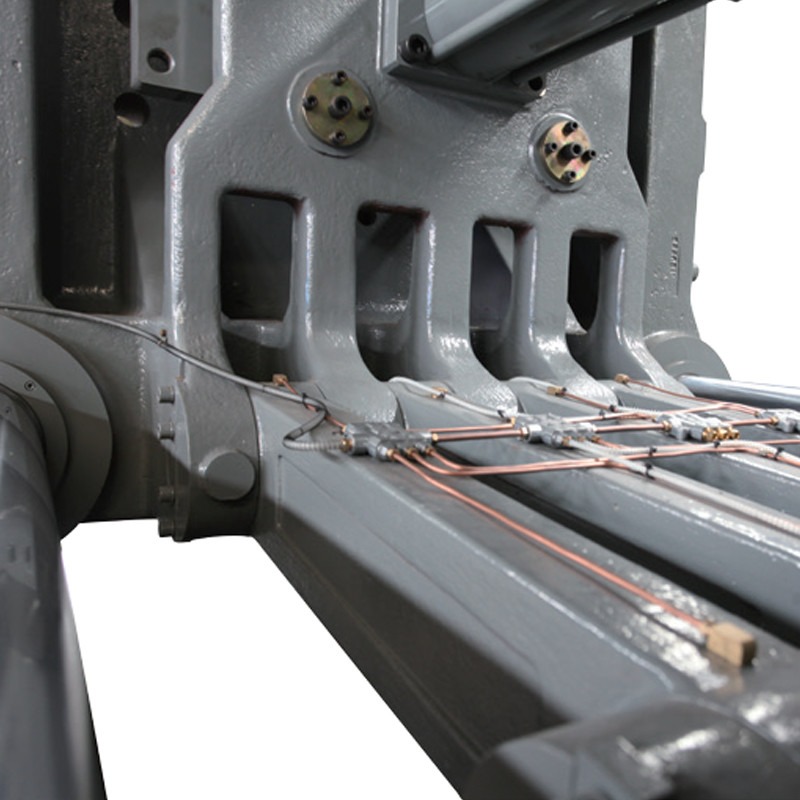

Detail Pictures
