| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-170UV |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

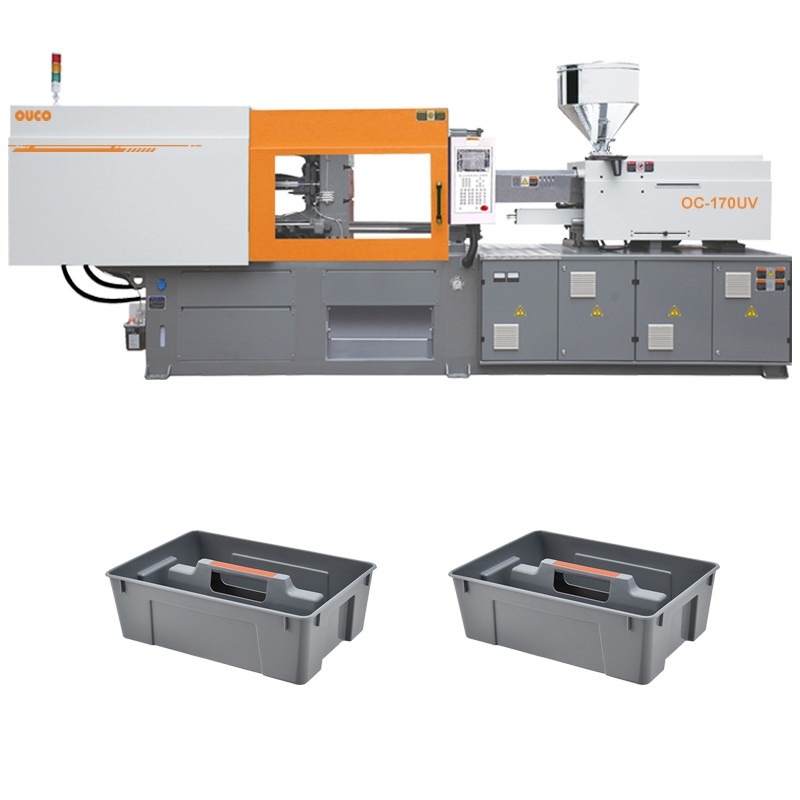

| Product Name: | OUCO 170T Factory Direct Sales Hydraulic Servo Plastic Handheld Tool Storage Basket Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 170T small plastic injection molding machine,OUCO small plastic injection molding machine,170T injection molder |
||
As a professional injection molding machine manufacturer, we attach great importance to product quality and customer experience. We insist on using parts produced by famous domestic and foreign manufacturers to ensure product quality from the whole to every detail. In order to keep up with industry trends and meet your production needs as much as possible, the technical team is also seizing time to improve and develop new technologies. OUCO injection molding machine, a good helper for your production!
Product Advantages
OC-170UV has a simple circuit layout and standardized interfaces to facilitate later machine repair and maintenance. The rigid design of the frame improves the bending resistance of the frame. When the machine is in operation, the frame and template deformation is small, maintaining stable production conditions, improving product quality and achieving a higher yield rate. The oil circuit and operating procedures are further optimized, making the machine run more smoothly and reliably.
| MODEL | OC170UV | |||||
| Clamping force (kN) | 1700 | |||||
| Space between tie bar (mm*mm) | 460*460 | |||||
| Max. mold thickness (mm) | 530 | |||||
| Min. mold thickness(mm) | 200 | |||||
| Opening stroke (mm) | 430 | |||||
| Ejector stroke(mm) | 140 | |||||
| Ejector force forward(Kn) | 50 | |||||
| Screw diameter(mm) | 50 | |||||
| Screw L/D ratio | 18 | |||||
| Theoretical injection volume (cm3) | 392 | |||||
| Shot weight (PS) g | 368 | |||||
| Injection pressure(MPa) | 138 | |||||
| Screw speed (rpm) | 0-200 | |||||
| Dry-cycle time(sec) | 2.0 | |||||
| Motor power (Kw) | 18.5 | |||||
| Oil tank capacity(L) | 210 | |||||
| Heater power (Kw) | 12.6 | |||||
| Machine Weight (Ton) | 4.8 | |||||
| Machine size L×W×H (m) | 4.9*1.2*2.0 | |||||
Detail Pictures
