| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-280H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

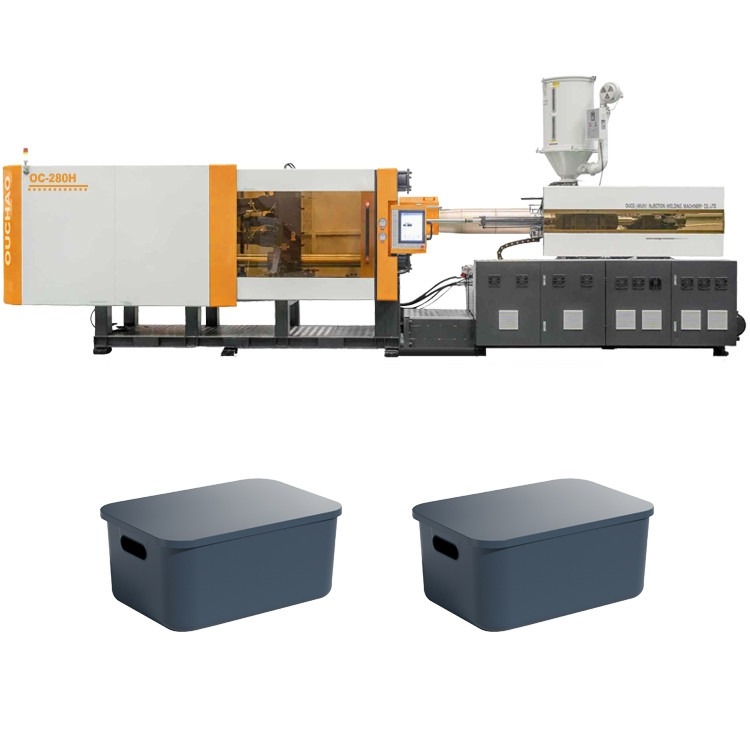

| Product Name: | 280T Energy Saving Automated System Orange Color Plastic Storage Box Servo Motor Making Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 280T plastic injection molding machine,Energy Saving plastic injection molding machine,Automated System injection molder |
||
OUCO specialises in manufacturing injection molding machines with many years of production experience. While advancing with the times, we do not forget our original intention. We have injected scientific and technological vitality into the existing injection molding machines, constantly updated and upgraded them, equipped with high-quality control units and injection units, just to bring you a high-quality sense of use. Vigorous independent research and development, forming a core technology with its own characteristics. Choose OUCO, we will do better.
Product Advantages
OUCO280T injection molding machine is one of our main products, which has a wide range of application, compact and precise design, adopting servo hydraulic system, which realizes the energy can be given as much as it needs to be, and the energy saving is more than 50%, which greatly reduces the energy consumption. Centre clamping structure, clamping force is up to 100%, the plastic storage box is strong and durable, not easy to deform, greatly improving the quality.
Parameters
| MODEL | OCH-280T | |||||
| Clamping force (kN) | 2800 | |||||
| Space between tie bar (mm*mm) | 610*590 | |||||
| Max. mold thickness (mm) | 620 | |||||
| Min. mold thickness(mm) | 220 | |||||
| Opening stroke (mm) | 570 | |||||
| Ejector stroke(mm) | 160 | |||||
| Ejector force forward(Kn) | 77 | |||||
| Screw diameter(mm) | 70 | |||||
| Screw L/D ratio | 20 | |||||
| Theoretical injection volume (cm3) | 1077 | |||||
| Shot weight (PS) g | 980 | |||||
| Injection pressure(MPa) | 130 | |||||
| Injection speed (mm/s) | 106 | |||||
| Injection rate (g/s) | 583 | |||||
| Motor power (Kw) | 36 | |||||
| Oil tank capacity(L) | 380 | |||||
| Heater power (Kw) | 18 | |||||
| Machine Weight (t) | 9 | |||||
| Machine size L×W×H (m) | 6.4*1.5*2.2 | |||||

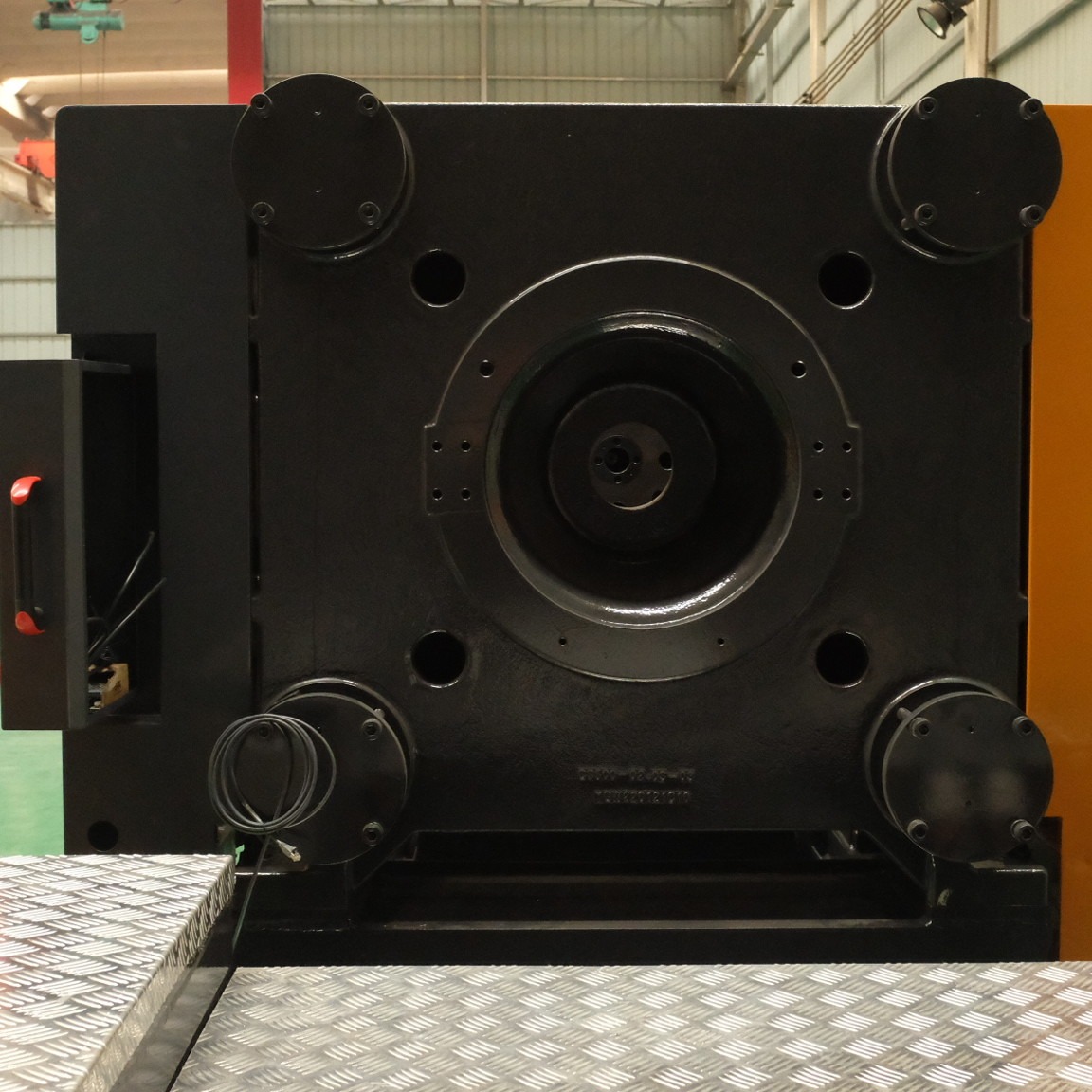

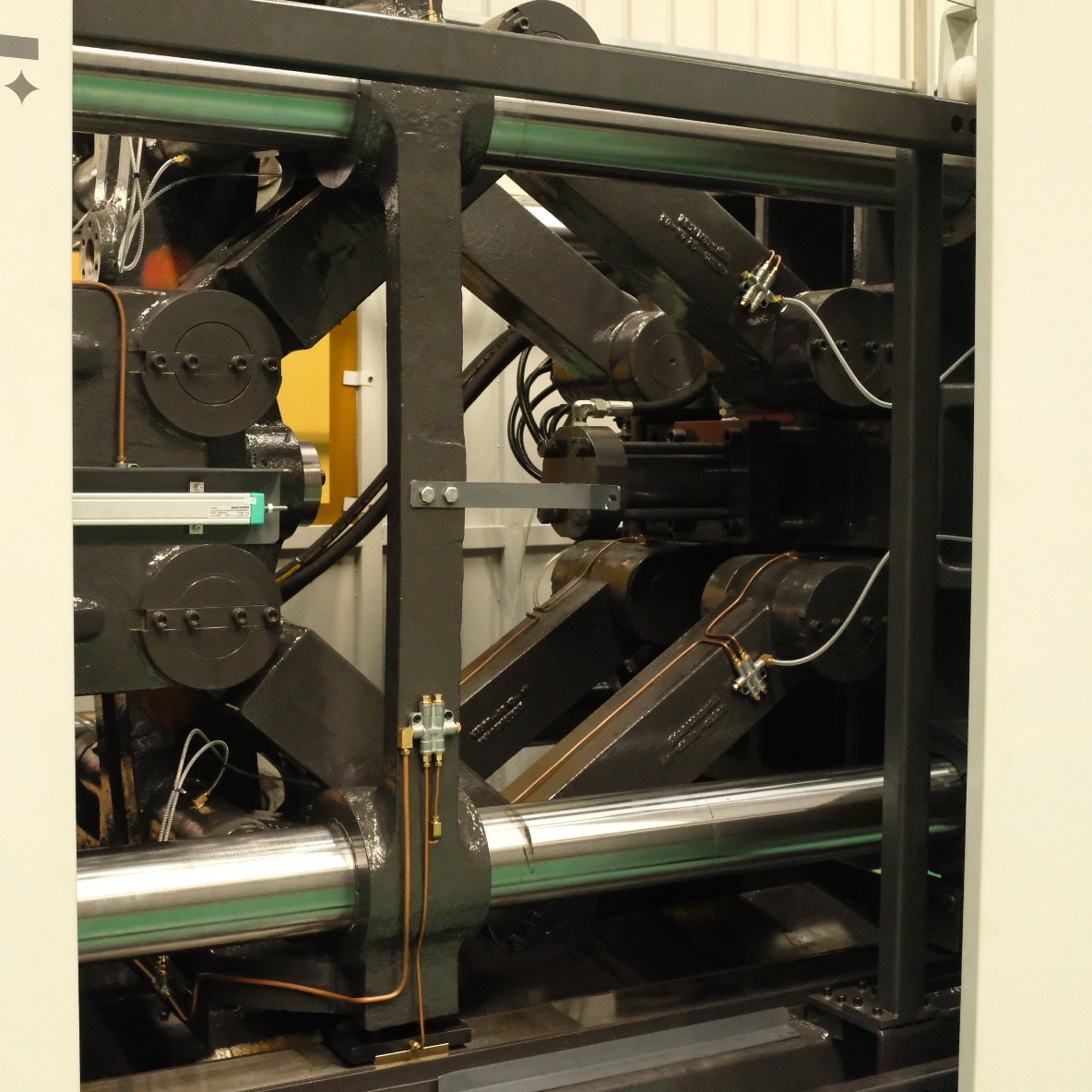

Detail Pictures
