| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-130UV |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

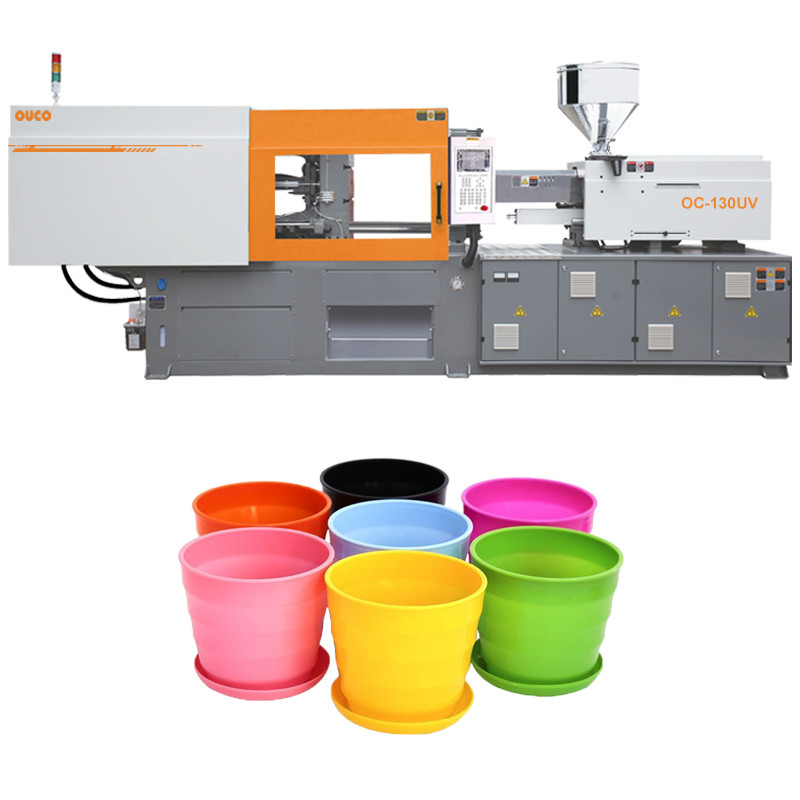

| Product Name: | OUCO 130T Protection Templates Hydraulic Servo Balcony Wear Resistant Plastic Flower Pots Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 130t lsr injection molding machine,flower pots lsr injection molding machine,130t injection molder |
||
Our injection molding machine with its innovative design, not only saves you raw material and labor costs, but also demonstrates excellent performance during the production process. This innovative design can also enhance the texture of the plastic products you need, optimize the appearance and thus enhance the competitiveness of your enterprise in the same industry. We always believe that choosing products from OUCO will bring you an unprecedented experience in using injection molding machines.
Product Advantages
OC-130UV injection molding machine occupies a small area, saving you ample factory space. The design of linear guide rails has a longer service life compared to traditional guide rails and has a smaller friction coefficient, enabling smooth injection movements. The ultra large mold opening stroke ensures even force distribution on the template mold, effectively protecting it and prolonging the usage time of the injection molding machine. Quick and precise synchronous locking settings ensure maximum product quality.
| MODEL | OC130UV | |||||
| Clamping force (kN) | 1300 | |||||
| Space between tie bar (mm*mm) | 410*410 | |||||
| Max. mold thickness (mm) | 450 | |||||
| Min. mold thickness(mm) | 160 | |||||
| Opening stroke (mm) | 380 | |||||
| Ejector stroke(mm) | 120 | |||||
| Ejector force forward(Kn) | 42 | |||||
| Screw diameter(mm) | 45 | |||||
| Screw L/D ratio | 18.5 | |||||
| Theoretical injection volume (cm3) | 302 | |||||
| Shot weight (PS) g | 274 | |||||
| Injection pressure(MPa) | 138 | |||||
| Screw speed (rpm) | 0-180 | |||||
| Dry-cycle time(g/s) | 1.3 | |||||
| Motor power (Kw) | 18.5 | |||||
| Oil tank capacity(L) | 200 | |||||
| Heater power (Kw) | 7.7 | |||||
| Machine Weight (Ton) | 4 | |||||
| Machine size L×W×H (m) | 4.6*1.2*1.8 | |||||

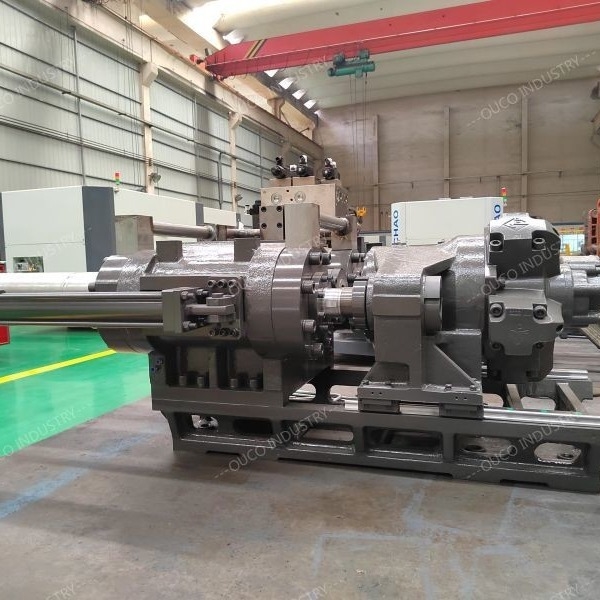

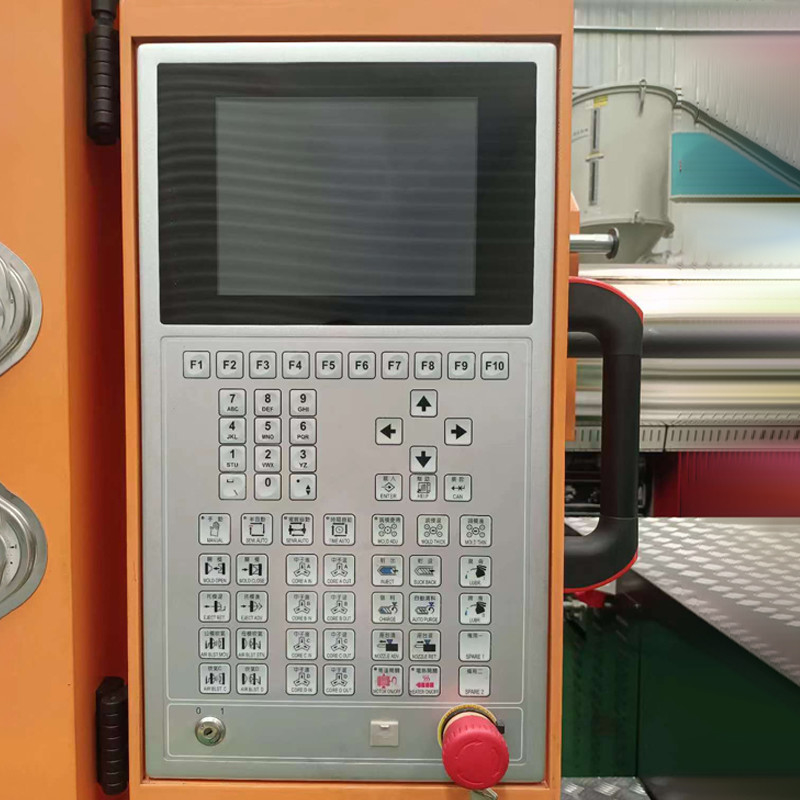

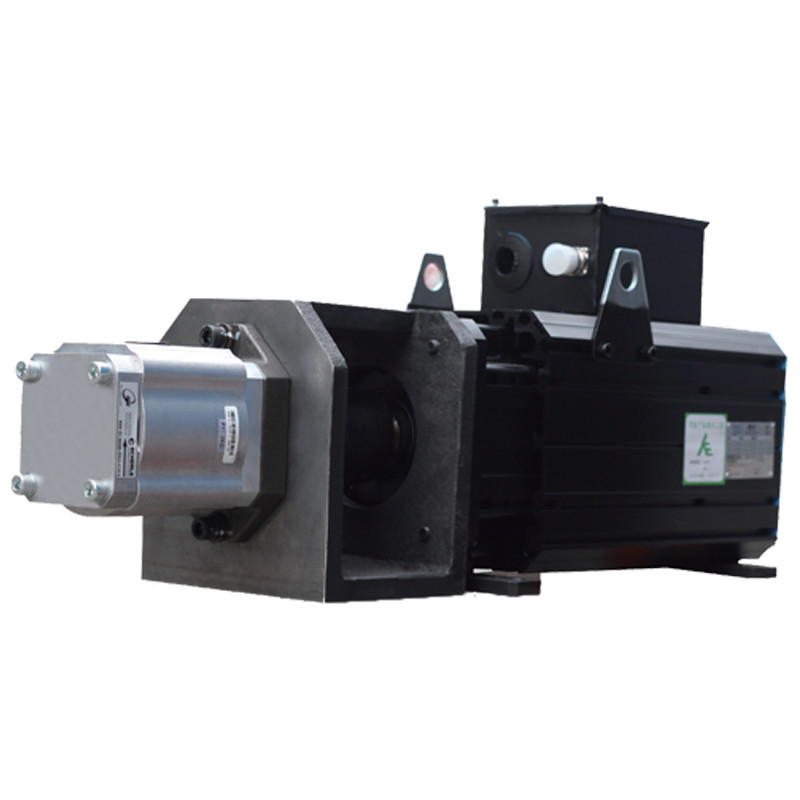

Detail Pictures
