| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-380H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 380T 100% Clamping Force High Performance Orange Color Miniature Garbage Plastic Injection Molding Machine Making | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 380t plastic injection molding machine,garbage making plastic injection molding machine,380t injection molder |
||
OUCO is a high-tech enterprise focusing on the production of plastic injection molding machines, and always takes ''science and technology to develop the factory'' as the strategic goal of development, through scientific and technological innovation, closely combined with the market demand, to create a series of high-quality and efficient new products. Your pursuit is what we have been working hard for. We hope to cooperate with you and make progress hand in hand to create a brilliant future.
Product Advantages
OUCO 380T injection molding machine has double injection cylinders design, which ensures uniform nozzle contact force and injection control precision, producing high precision and high quality products. In addition, it also has timed heating function and screw anti-cold start, the machine runs stably and has high production efficiency, which brings you the maximum production benefit.
Parameters
| MODEL | OCH-380T | |||||
| Clamping force (kN) | 3800 | |||||
| Space between tie bar (mm*mm) | 720*680 | |||||
| Max. mold thickness (mm) | 730 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 800 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 62 | |||||
| Screw diameter(mm) | 80 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 1759 | |||||
| Shot weight (PS) g | 1699 | |||||
| Injection pressure(MPa) | 133 | |||||
| Injection speed (mm/s) | 99 | |||||
| Injection rate (g/s) | 481 | |||||
| Motor power (Kw) | 47.5 | |||||
| Oil tank capacity(L) | 125 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (t) | 13 | |||||
| Machine size L×W×H (m) | 8.2*1.9*2.0 | |||||

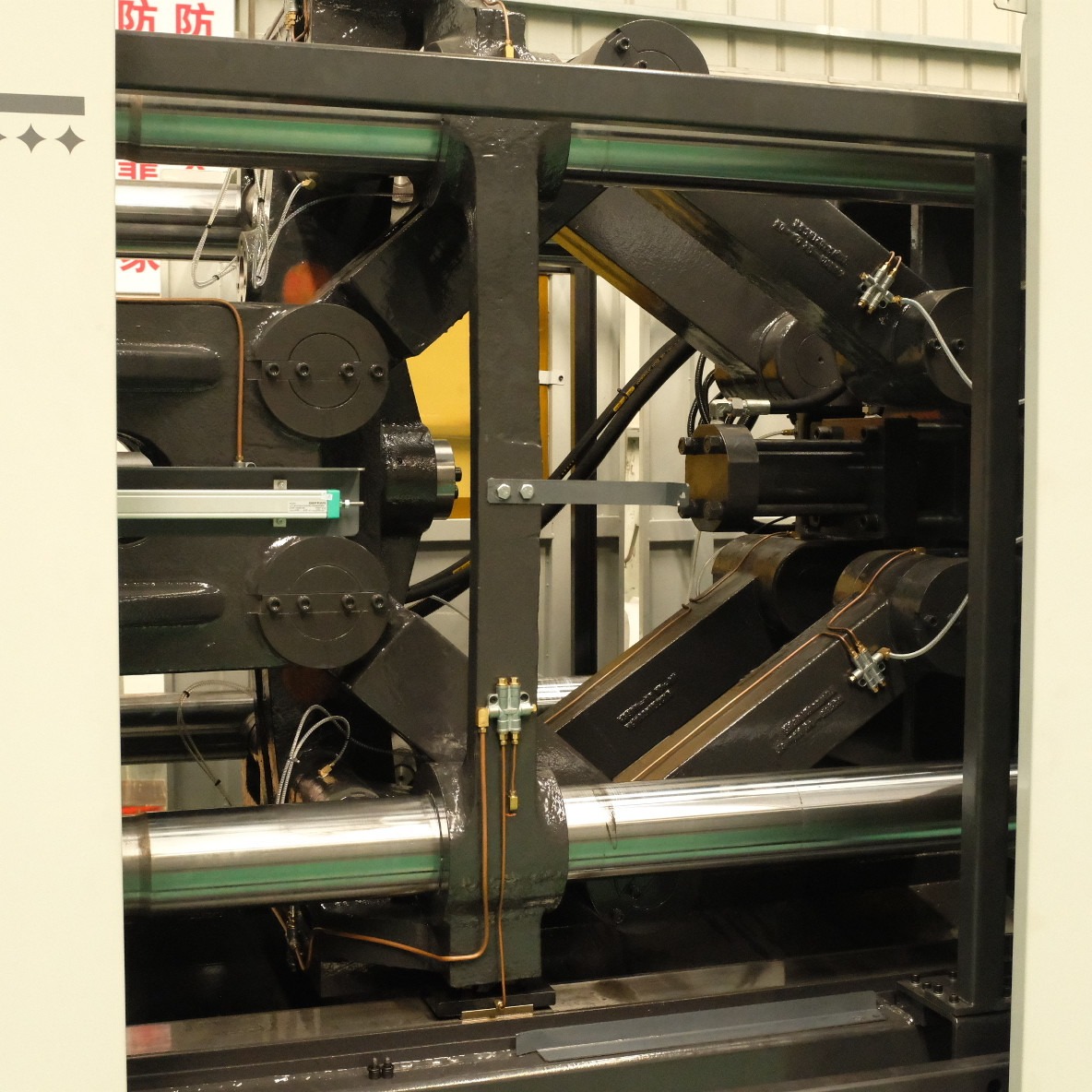

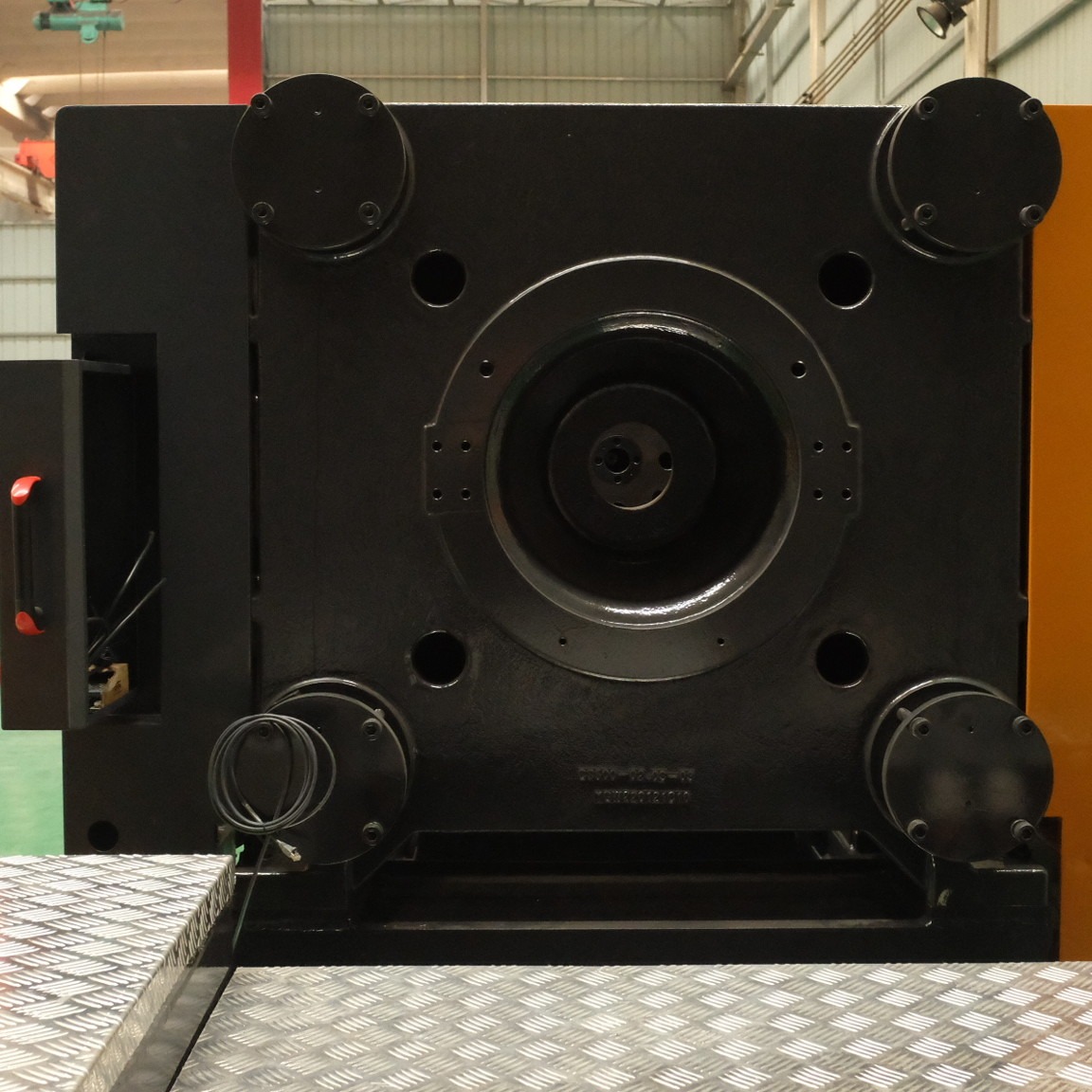

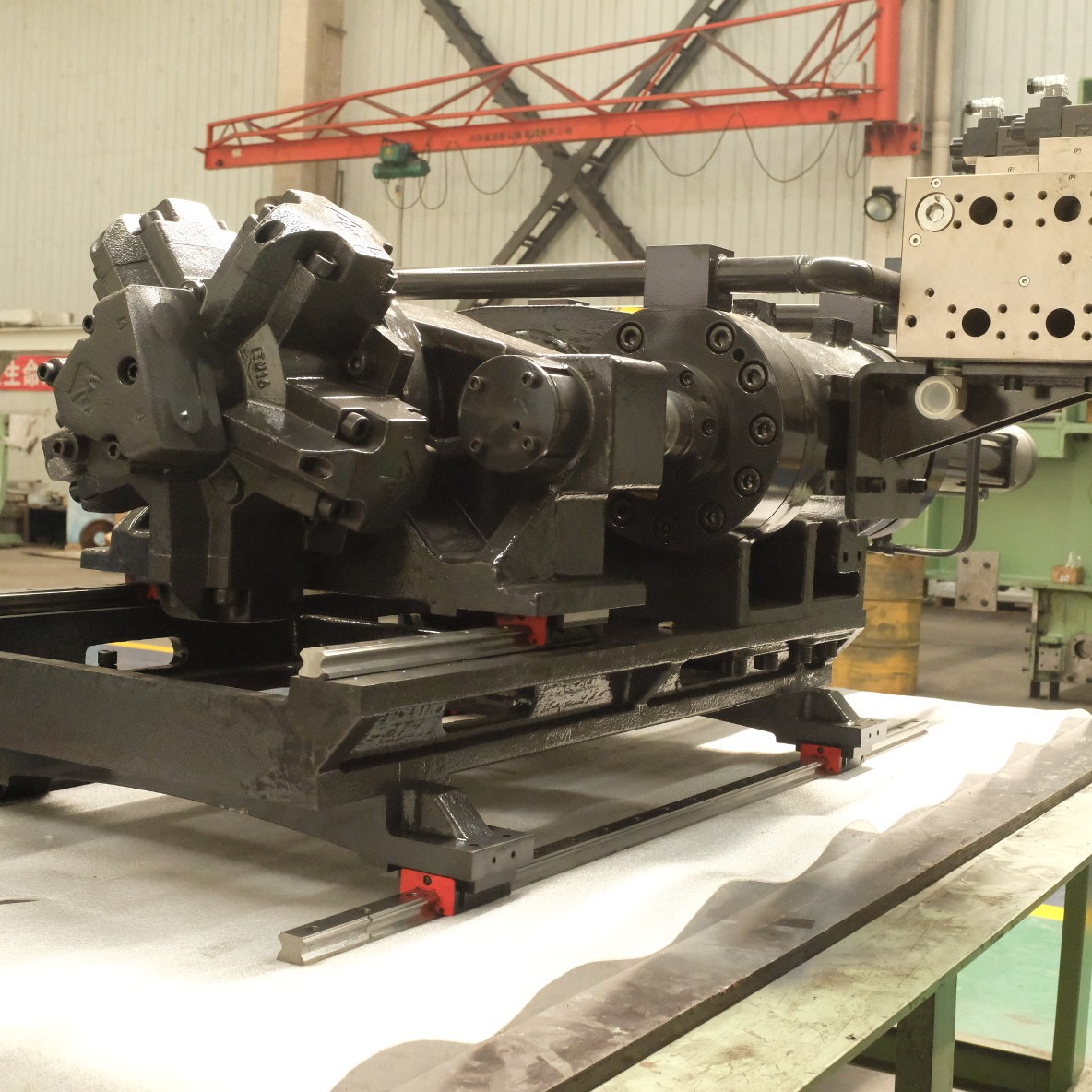

Detail Pictures
