| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-650H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 650t Factory Large Parts Transfer Basket Making Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 650t plastic injection machine,garbage small injection molding machine,garbage injection molder |
||
Company Advantages
The factory covers an area of 35,000 square meters, with a built-in finishing workshop and a complete machine storage workshop. The frames and high-rigidity templates are produced by our own workshop. We strictly control every production procedure, just to bring high-quality injection molding machine products to customers.
At present, our finishing workshop is equipped with high-precision equipment such as CNC machine tools and grinders, which can perform complex frame processing.The complete machine storage workshop ensures that the products are neat and in good condition before leaving the factory.
In addition, we also have an experienced technical team that focuses on the research and development and innovation of injection molding machines, and constantly injects new vitality into OUCO's injection molding machine series products. It also provides solid technical support for the sales team, cooperates sincerely, and provides customers with practical solutions.
Product Advantages

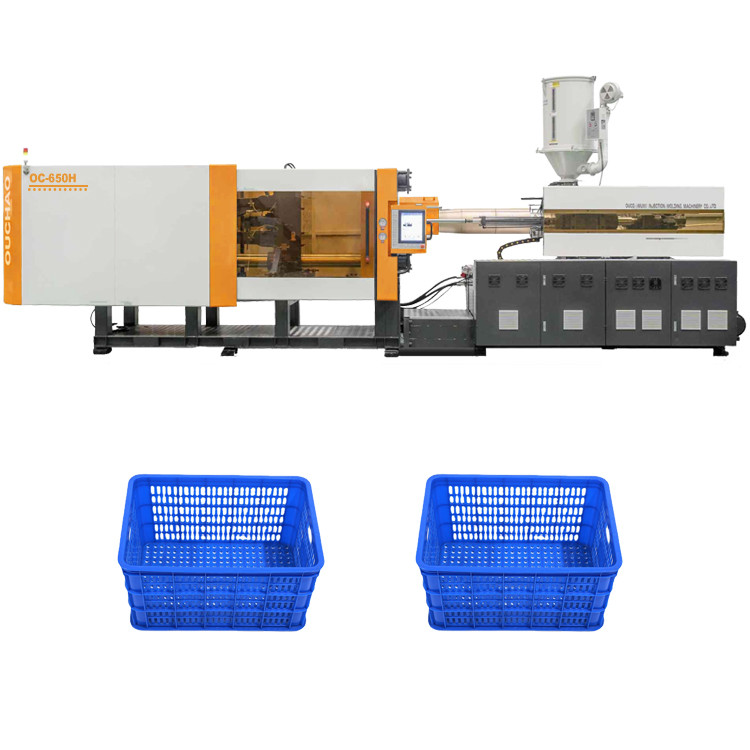

OC-650H is an injection molding machine with a large mold opening stroke, suitable for the production of deep-cavity plastic products.
First, when designing, the technicians focused on the efficient and reasonable configuration of the servo system. After testing, they found that the injection speed would be higher than that of ordinary machines, shortening the product molding cycle time.

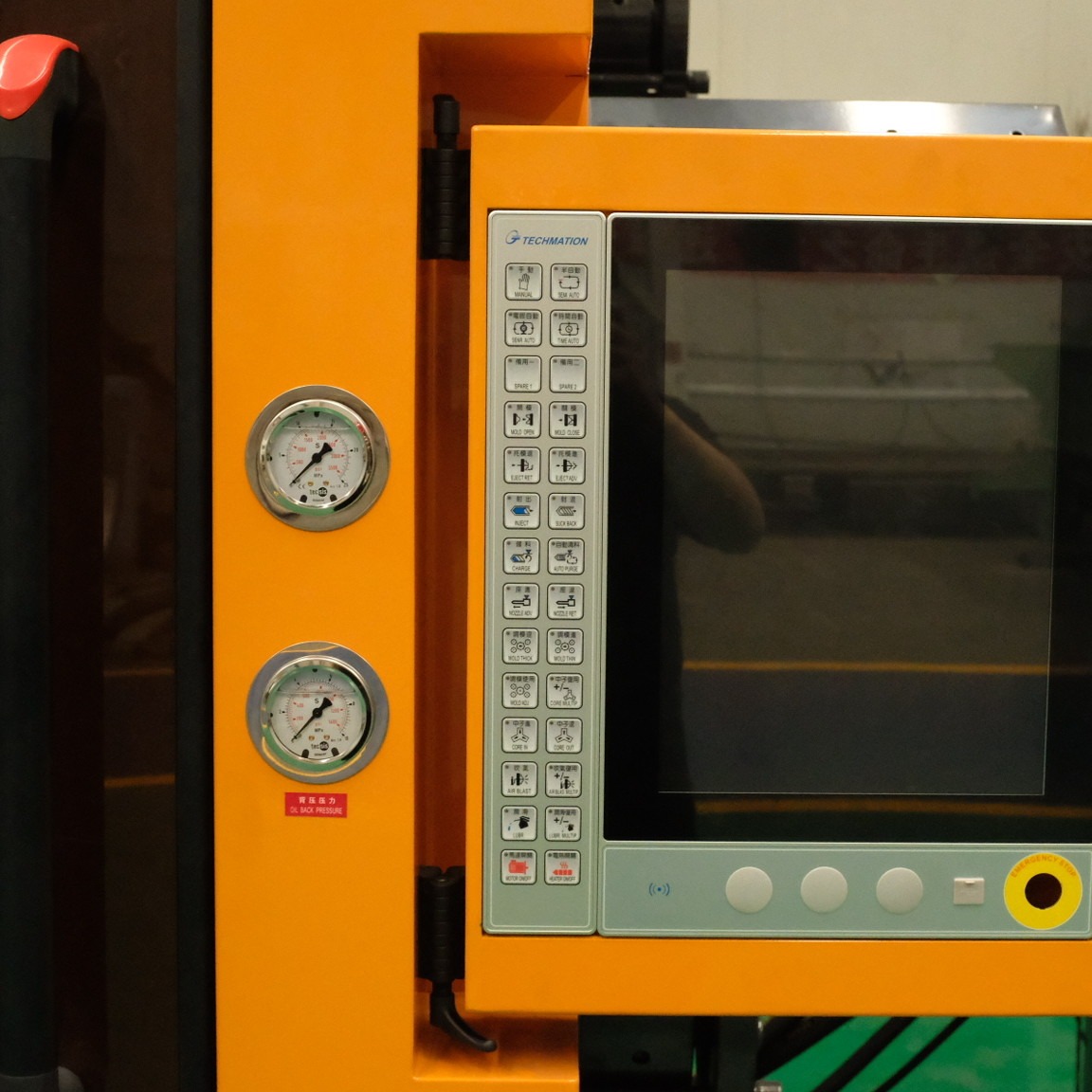

Secondly, the control panel of the injection molding machine can set values such as temperature and pressure in advance, and high-precision temperature control to ensure that the melt is melted thoroughly enough during the melting of the glue, so as not to affect the product quality and produce defective products that are not smooth and flat.
Then, the increased inner spacing of the tie rod is friendly to customers who want to produce larger daily necessities, which is convenient and easy to accommodate larger and deeper molds. Many domestic customers also purchased this product to produce products such as large plastic baskets and storage boxes, and received unanimous praise from customers.
Finally, if the customer has special requirements for the configuration of the injection molding machine or the production of products, we will keep in close contact with the technical team to ensure that a practical solution is provided to the customer.
Parameters
| MODEL | OCH-650T | |||||
| Clamping force (kN) | 6500 | |||||
| Space between tie bar (mm*mm) | 960*820 | |||||
| Max. mold thickness (mm) | 900 | |||||
| Min. mold thickness(mm) | 400 | |||||
| Opening stroke (mm) | 1150 | |||||
| Ejector stroke(mm) | 260 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 95 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3367 | |||||
| Shot weight (PS) g | 3251 | |||||
| Injection pressure(MPa) | 152 | |||||
| Injection speed (mm/s) | 93 | |||||
| Injection rate (g/s) | 637 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 950 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (kg) | 24 | |||||
| Machine size L×W×H (mm) | 9000*2100*2300 | |||||
