| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-500T/700T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

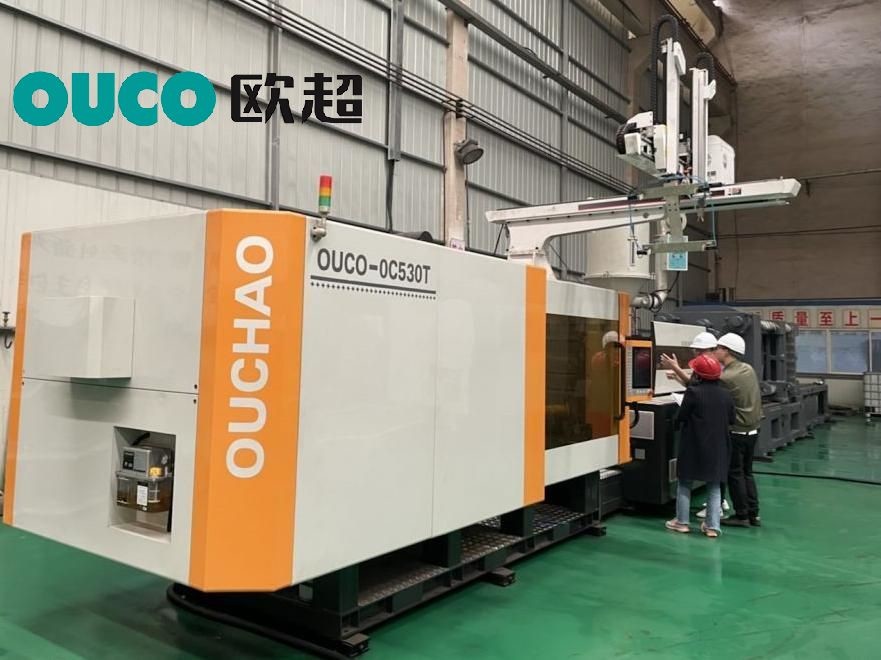

| Product Name: | High-speed Injection Molding Machine For Garbage Can And Trash Basket | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 70mm crate injection molding machine,servo motor crate injection molding machine,70mm plastic crate injection molding machine |
||
Save up to 50% energy with its highly efficient servo energy saving system Greatly enhanced productivity, quality and energy efficiency.

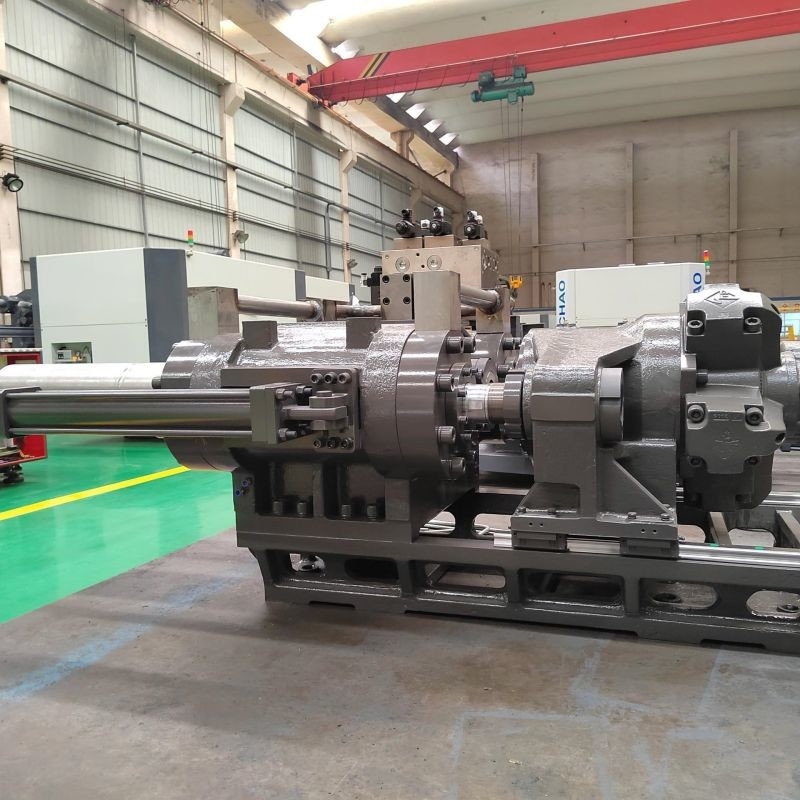

Direct pressure center clamping system with high efficiency, high precision and stability.
With more than 30 years of technology and market experience, we give it a unique clamping structure with precise clamping position accuracy and stability, which can fully meet the requirements of customers in the situation of intelligent trend in plastic industry.
European technology, employing a team of experts to design carefully. Adopting the key components and lubrication system of the world's top brands to ensure the quality of the machine while being cost effective.
Mainly used in civil applications, such as fruit baskets, crates, garbage cans, etc.
Parameters
| Model | 500T | 600T | 700T | |||||||
| Screw Specifications | A | B | C | A | B | C | A | B | C | |
| Screwdi ameter | mm | 70 | 75 | 85 | 75 | 85 | 90 | 85 | 90 | 100 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 1481 | 1700 | 2184 | 1788 | 2297 | 2575 | 2552 | 2861 | 3533 |
| Shot weight (PS) | g | 1377 | 1581 | 2031 | 1645 | 2113 | 2369 | 2348 | 2632 | 3250 |
| injection rate(Ps) | g/S | G03 | 693 | 890 | G13 | 788 | 884 | 788 | 883 | 1091 |
| Injection pressure | MPa | 209 | 182 | 142 | 204 | 159 | 142 | 209 | 187 | 151 |
| Inject on stroke | mm | 385 | 405 | 450 | ||||||
| Max. injection speed | mm/s | 166 | 157 | 147 | ||||||
| Screw speed | r/min | 0-200 | 0-200 | 0-180 | ||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | ||||||
| Pump Motor(Min-Max) | kW | 94 | 101 | 114 | ||||||
| Displacement | ml/r | 125+125 | 160+125 | 160+160 | ||||||
| number of Motors | PC | 2 | 2 | 2 | ||||||
| Heater power | kW | 41 | 47 | 52 | ||||||
| Number oftemp. control zones | 5+1 | 5+1 | 5+1 | |||||||
| Clamping force | kN | 5000 | 6000 | 7000 | ||||||
| Opening stroke | mm | 1000 | 1150 | 1300 | ||||||
| Tie bar distance W×L | mm*mm | 860x760 | 960x860 | 1020x920 | ||||||
| Min. mold thickness | mm | 300 | 350 | 450 | ||||||
| Max. mold thickness | mm | 800 | 920 | 1050 | ||||||
| Ejector stroke | mm | 210 | 210 | 210 | ||||||
| Ejector force forward | kN | 110 | 113 | 113 | ||||||
| Number of ejector bar | PC | 1+12 | 1+12 | 1+12 | ||||||
| Oil tank capacity | L | 850 | 940 | 1020 | ||||||
| Machine dimensions(LxWxH) | m*m*m | 87x2.0x2.1 | 9.3x2.1x2.3 | 9.7x2.2x2.4 | ||||||
| Machine weight | Ton | 19 | 23 | 25 | ||||||
