| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-350T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

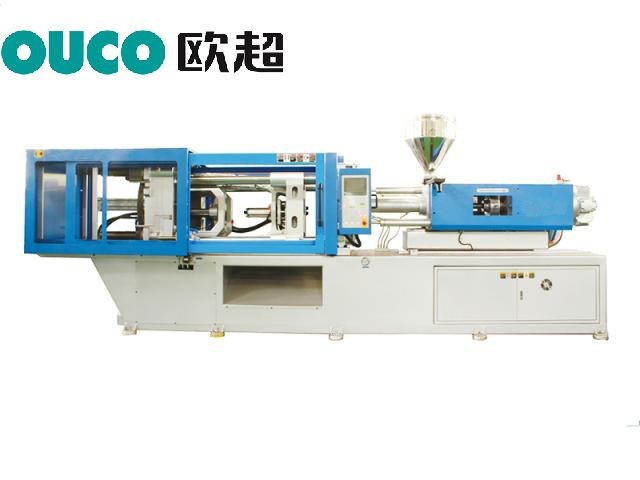

| Product Name: | OUCO High-Speed Thin Wall Injection Molding Machine Precision Molding | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Thin Wall OUCO Injection Molding Machine,420 CM3 Injection Molding Machine,50mm Injection Molding Machine |
||
High pressure and high response servo system makes machine operation more efficient and energy-saving
Parallel bar injection structure, which can quickly reach the maximum shooting speed and improve efficiency
Designed for high-speed operation, the machine runs more smoothly and stably
Effectively meeting the requirements of high-speed thin-walled operation, resulting in more stable product output
Parameters
| Injection Unit | GH350 | |
|
SCREW DIAMETER
|
mm | 50 |
|
INJECITON STROKE
|
mm | 225 |
|
SCREW L/D RATIO
|
L/D | 25 |
|
SHOT VOLUME(THEORETICAL)
|
CM3 | 420 |
|
INJECTION WEIGHT(PP)
|
g | 378 |
|
INJECTION PRESSURE
|
Mpa | 164 |
|
DWELL PRESSYRE
|
kg/cm3 | 1675 |
|
NJECTION SPEED
|
mm/s | 360 |
|
SCREW SPEED
|
rpm | 400 |
| Clamping Unit | ||
|
CLAMP FORCE
|
Kn | 2500 |
|
OPEN STROKE
|
mm | 490 |
|
SPACE BETWEEN TIE BARS(Ｖ×Ｈ)
|
mm*mm | 570*520 |
|
MAX.MOULD HEIGHT
|
mm | 670 |
|
MIN.MOULD HEIGHT
|
mm | 300 |
|
EJECTOR STROKE
|
mm | 150 |
|
EJECTOR STROKE
|
Kn | 61.5 |
|
EJECTOR NUMBER
|
N | 5 |
| Others | ||
|
MAX.PUMP PRESSURE
|
Mpa | 23 |
|
PUMP MOTOR POWER
|
Kw | 61.08 |
|
HEATING POWER
|
Kw | 15.05 |
|
MACHINE DIMENSION(L*W*H)
|
M*m*m | 5.74*1.45*1.78 |
|
OILTANK CUBAGE
|
L | 300 |
|
MACHINE WEIGHT(ESTIMATE)
|
T | 8.7 |

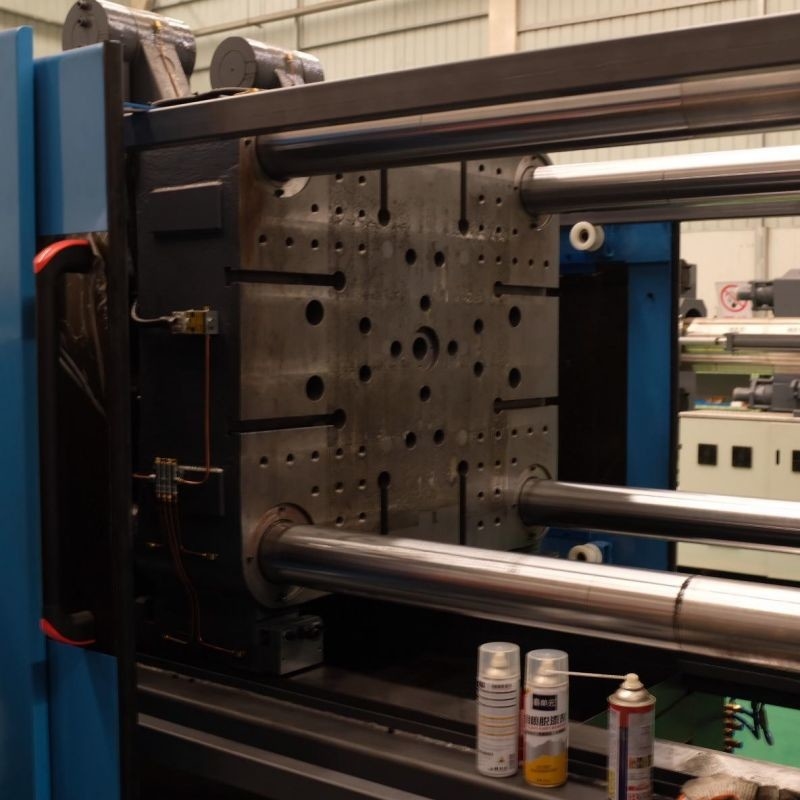

Detail Pictures
