| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-HS-500T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

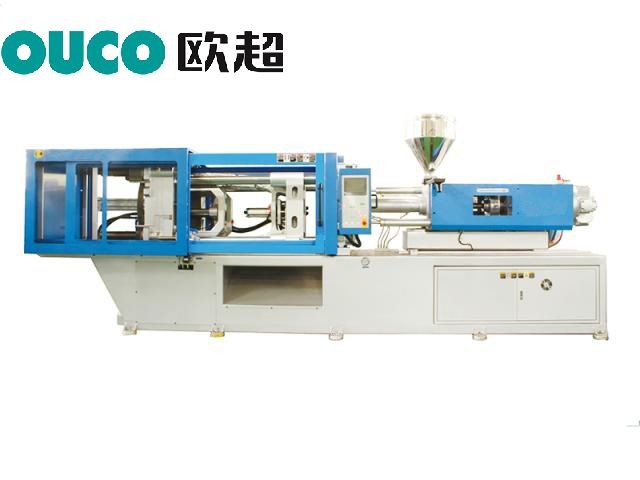

| Product Name: | Automatic Plastic Injection Moulding Machine Trash Can HS-500T PVC/CE | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 200r/Min PVC Plastic Injection Molding Machine,Automatic PVC Plastic Injection Molding Machine,70mm PVC Plastic Injection Molding Machine |
||
Product Advantages
1. Using well-known brand controllers for ultra fast response speed
2. Equipped with electromagnetic directional valve for more accurate measurement
3. Efficient servo motor, more energy-efficient, and equipped with servo motor driver for precise control.
4. Use a gear pump imported from Germany
5. Excellent oil seal, more durable, and longer service life
Parameters
| MODEL | 500T | 600T | |||||
| Spiral Specification | A | B | C | A | B | C | |
| Screw di ameter | mm | 70 | 75 | 85 | 75 | 85 | 90 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection capacity | cm3 | 1481 | 1700 | 2184 | 1788 | 2297 | 2575 |
| Shot weight (PS) | g | 1377 | 1581 | 2031 | 1645 | 2113 | 2369 |
| injection rate(Ps) | g/S | G03 | 693 | 890 | G13 | 788 | 884 |
| Injection pressure | MPa | 209 | 182 | 142 | 204 | 159 | 142 |
| Injection stroke | mm | 385 | 405 | ||||
| Max. injection speed | mm/s | 166 | 157 | ||||
| Screw speed | r/min | 0-200 | 0-200 | ||||
| Sys. Pressure | MPa | 16 | 16 | ||||
| Pump Motor(Min-Max) | kW | 94 | 101 | ||||
| Displacement | ml/r | 125+125 | 160+125 | ||||
| number of Motors | PC | 2 | 2 | ||||
| Heater power | kW | 41 | 47 | ||||
| Number of temp, control zones | 5+1 | 5+1 | |||||
| Clamping force | kN | 5000 | 6000 | ||||
| Opening stroke | mm | 1000 | 1150 | ||||
| Space between tie bar | Mmxmm | 860x760 | 960x860 | ||||
| Min. mold thickness | mm | 300 | 350 | ||||
| Max. mold thickness | mm | 800 | 920 | ||||
| Ejector stroke | mm | 210 | 210 | ||||
| Ejector force forward | kN | 110 | 113 | ||||
| Number of ejector bar | PC | 1+12 | 1+12 | ||||
| Oil tank capacity | L | 850 | 940 | ||||
| Machine dimensions(LxWxH) | Mxmxm | 87x2.0x2.1 | 9.3x2.1x2.3 | ||||
| Machine weight | Ton | 19 | 23 | ||||
Detail Pictures
