| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-OC-530T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 530 T High-Power Hydraulic Injection Molding Machine With Huge Volumetric Modulus | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Hydraulic Injection Molding Machine High Power,151 mm/S Hydraulic Injection Molding Machine,41 kW Hydraulic Injection Molding Machine |
||
The hydraulic high-speed injection molding machine designed and produced by OUCO has a considerable capacity of moduli space and an ultra long opening stroke. Compared with the same model, the opening stroke of OUCO injection molding machine is about 20% longer, which can accommodate larger molds and produce more products.
Based on this design, the same machine can produce multiple models of products, making it more economical. In addition, the price advantage of the Eurosuper injection molding machine itself can save customers a lot of costs.
Parameters
| Model | 530T | |||
| Screw Specifications | C | |||
| Screwdi ameter | mm | 100 | ||
| Screw L/Dratio | 22 | |||
| Theoretical injection volume | cm3 | 3500 | ||
| Shot weight (PS) | g | 3390 | ||
| injection rate(Ps) | g/S | 1145 | ||
| Injection pressure | MPa | 113 | ||
| Inject on stroke | mm | 450 | ||
| Max. injection speed | mm/s | 151 | ||
| Screw speed | r/min | 0-200 | ||
| Sys. Pressure | MPa | 16 | ||
| Pump Motor(Min-Max) | kW | 95 | ||
| Displacement | ml/r | 125+125 | ||
| number of Motors | PC | 2 | ||
| Heater power | kW | 41 | ||
| Number oftemp. control zones | 5+1 | |||
| Clamping force | kN | 5000 | ||
| Opening stroke | mm | 1000 | ||
| Tie bar distance W×L | mm*mm | 860x760 | ||
| Min. mold thickness | mm | 300 | ||
| Max. mold thickness | mm | 800 | ||
| Ejector stroke | mm | 210 | ||
| Ejector force forward | kN | 110 | ||
| Number of ejector bar | PC | 1+12 | ||
| Oil tank capacity | L | 850 | ||
| Machine dimensions(LxWxH) | m*m*m | 87x2.0x2.1 | ||
| Machine weight | Ton | 19 | ||

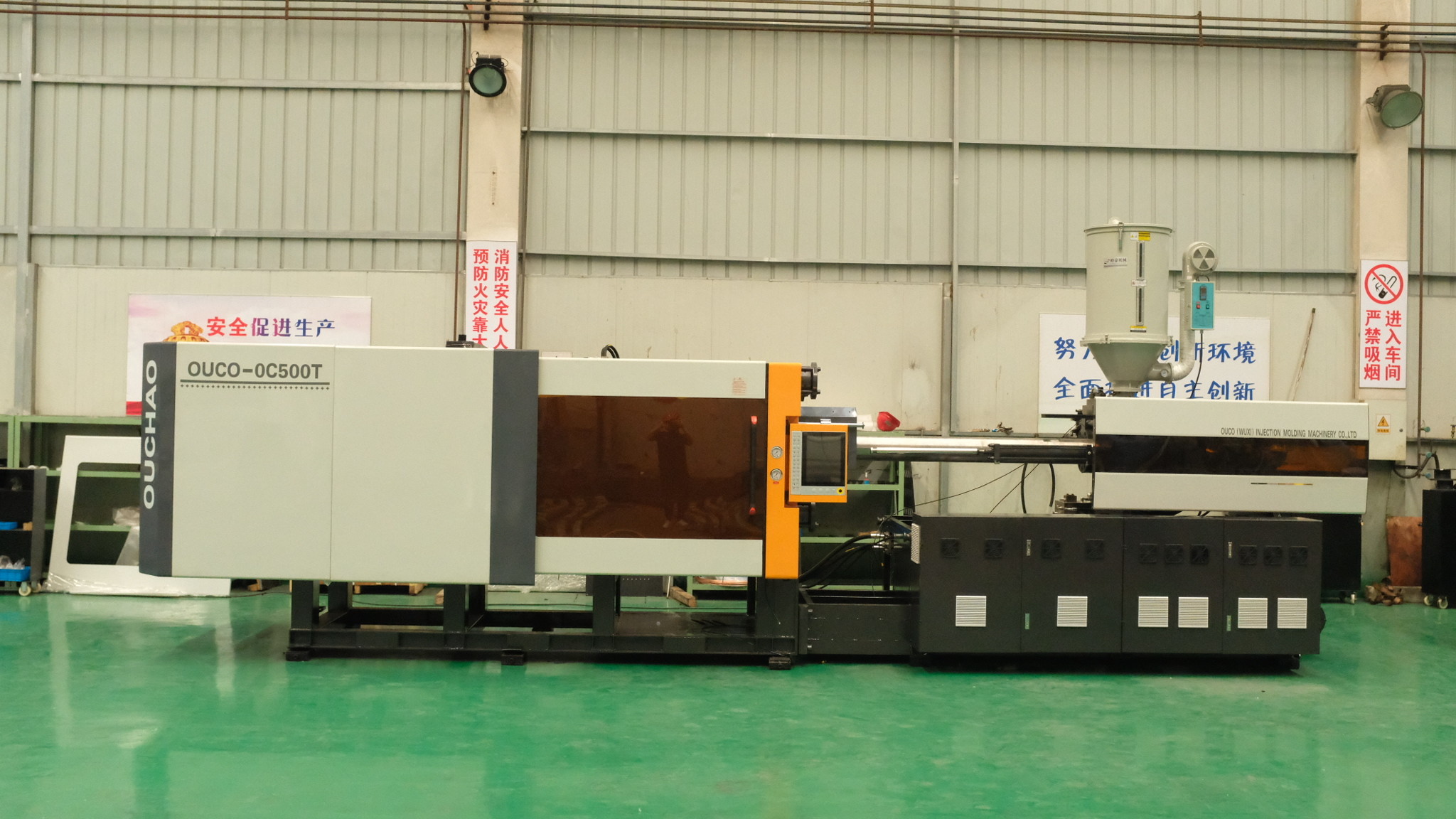

Detail Pictures
