| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-HS-500T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | Automatic 5000 Kn Deep Screw PVC & PE Trash Can Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 5000Kn Plastic Injection Moulding Machines Automatic,Plastic Injection Moulding Machines Deep Screw,PVC PE Plastic Injection Moulding Machines |
||
Product Advantages
1. European KEBA brand controller, high speed response, precision control.
2. Rexroth or Yuken solenoid directional valve for precise metering.
3. Phase, Inovance, Modrol servo motor, energy saving more than 50%.
4. Inovance, Modrol, Techmation servo motor driver, to achieve accurate control.
5. Germany imports eckerle gear pump.
6. INTERMOT, STAFFA brand melt motor, torque, overload capacity, long life.
7. Sealtech, NOK brand oil seal, durable, sealed well.
Parameters
| MODEL | 500T | 600T | |||||
| Spiral Specification | A | B | C | A | B | C | |
| Screw di ameter | mm | 70 | 75 | 85 | 75 | 85 | 90 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection capacity | cm3 | 1481 | 1700 | 2184 | 1788 | 2297 | 2575 |
| Shot weight (PS) | g | 1377 | 1581 | 2031 | 1645 | 2113 | 2369 |
| injection rate(Ps) | g/S | G03 | 693 | 890 | G13 | 788 | 884 |
| Injection pressure | MPa | 209 | 182 | 142 | 204 | 159 | 142 |
| Injection stroke | mm | 385 | 405 | ||||
| Max. injection speed | mm/s | 166 | 157 | ||||
| Screw speed | r/min | 0-200 | 0-200 | ||||
| Sys. Pressure | MPa | 16 | 16 | ||||
| Pump Motor(Min-Max) | kW | 94 | 101 | ||||
| Displacement | ml/r | 125+125 | 160+125 | ||||
| number of Motors | PC | 2 | 2 | ||||
| Heater power | kW | 41 | 47 | ||||
| Number of temp, control zones | 5+1 | 5+1 | |||||
| Clamping force | kN | 5000 | 6000 | ||||
| Opening stroke | mm | 1000 | 1150 | ||||
| Space between tie bar | Mmxmm | 860x760 | 960x860 | ||||
| Min. mold thickness | mm | 300 | 350 | ||||
| Max. mold thickness | mm | 800 | 920 | ||||
| Ejector stroke | mm | 210 | 210 | ||||
| Ejector force forward | kN | 110 | 113 | ||||
| Number of ejector bar | PC | 1+12 | 1+12 | ||||
| Oil tank capacity | L | 850 | 940 | ||||
| Machine dimensions(LxWxH) | Mxmxm | 87x2.0x2.1 | 9.3x2.1x2.3 | ||||
| Machine weight | Ton | 19 | 23 | ||||

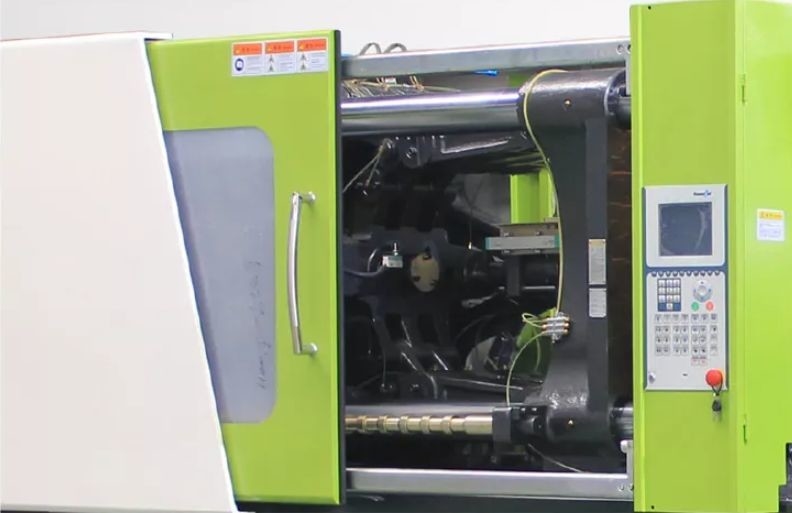

Detail Pictures
