| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-HS-530T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OUCO-350T Injection Molding Machine Saves You In Time, Material And Price In All Aspects | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Plastic Injection Moulding Machine 350Ton,Automation Plastic Injection Moulding Machine,Support customization Plastic Injection Moulding Machine |
||
The HS-350T is a very economical model
Our outflip crankshaft provides longer opening strokes with the same clamping force.
We can make a fruit basket in 16 seconds, this can save you a lot of time.
100% clamping force can reduce the product's spillover, this can save 2%-5% material.
Product Advantages
Hydraulic systems supplied by well-known brands
Specialized oil circuit design and manufacturing
Provide open die ejector synchronization function
Excellence clamping structure
100% clamping force use
Fast ,more 10% output
Save 2-5% material
Parameters
| MODEL | HS-530T | |||||
| CLAMPING UNIT | clamping force (kN) | 3500 | ||||
| Tie bar distance W×L (mm) | 680*680 | |||||
| Max.Daylight(mm) | 800 | |||||
| Max. mold thickness (mm) | 680 | |||||
| Min. mold thickness(mm) | 210 | |||||
| Platen Dimensions W×L (mm) | 680*680 | |||||
| Ejector Stroke(mm) | 190 | |||||
| Ejector Force(Kn) | 62 | |||||
| Ejector Quantily | 1+12 | |||||
| Injection Unit | Screw Diameter(mm) | 85 | ||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 1985 | |||||
| Shot Weight (PS) g | 1886 | |||||
| Injection Pressure(MPa) | 135 | |||||
| Injection Speed (g/s) | 1886 | |||||
| Injection Rate (cm3/s) | 647 | |||||
| Screw Speed (rpm) | 0-200 | |||||
| Other | Motor Power (Kw) | 63 | ||||
| pump capacity(ml/r) | 163 | |||||
| Heater Power (Kw) | 27 | |||||
| Machine Weight (Ton) | 10.5 | |||||
| Machine size L×W×H (m*m*m) | 7.7*1.8*1.8 | |||||

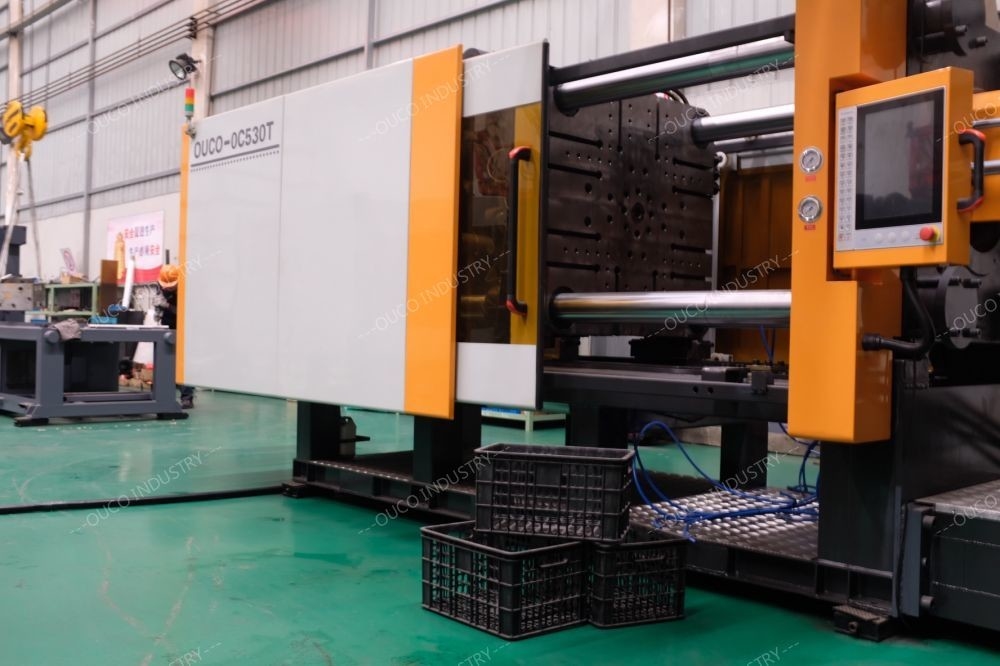

Detail Pictures
