| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-1000T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | Good Price Crate And Painting Bucket Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Crate Plastic Injection Moulding Machines,Hydraulic Automation Plastic Injection Moulding Machines,optimized hydraulic Plastic Injection Moulding Machines |
||
Updated Function:
1.Expanded motor and pump system, optimized hydraulic system for high performance and faster cycles. For example crate (less than 2kg) cycle time 20s,
spray paint barrel (780-800g) cycle time 20S.
2.Special designed screw and barrel structure for faster plasticization and shorter loading cycle.
Optional bimetallic screw and barrel to be compatible with the recycled material of the box.
3.Optional automation equipment is available to improve production efficiency.
Parameters
| Model | 1000T | 1400T | 1850T | |||||||
| Screw Specifications | A | B | C | A | B | C | A | B | C | |
| Screwdi ameter | mm | 100 | 100 | 120 | 110 | 120 | 130 | 125 | 135 | 145 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 4329 | 4329 | 6104 | 5177 | 6161 | 7230 | 8034 | 9371 | 10811 |
| Shot weight (PS) | g | 3900 | 3900 | 5616 | 4763 | 5668 | 6652 | 7391 | 8621 | 9946 |
| injection rate(Ps) | g/S | 920 | 920 | 1325 | 1651 | 1384 | 1628 | 1275 | 1488 | 1717 |
| Injection pressure | MPa | 204 | 204 | 142 | 197 | 165 | 141 | 197 | 169 | 146 |
| Inject on stroke | mm | 540 | 545 | 655 | ||||||
| Max. injection speed | mm/s | 137 | 130 | 130 | ||||||
| Screw speed | r/min | 0-180 | 0-180 | 0-160 | ||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | ||||||
| Pump Motor(Min-Max) | kW | 151 | 178 | 210 | ||||||
| Displacement | ml/r | 160+125+125 | 160+160+160 | 160+160+125 + 125 | ||||||
| number of Motors | PC | 3 | 3 | 4 | ||||||
| Heater power | kW | 61 | 68 | 89 | ||||||
| Number oftemp. control zones | 6+1 | 7+1 | ||||||||
| Clamping force | kN | 10000 | 14000 | 18500 | ||||||
| Opening stroke | mm | 1700 | 1900 | 2300 | ||||||
| Tie bar distance W×L | mm*mm | 1210x1060 | 1460x1320 | 1620x1460 | ||||||
| Min. mold thickness | mm | 500 | 700 | 750 | ||||||
| Max. mold thickness | mm | 1200 | 1400 | 1600 | ||||||
| Ejector stroke | mm | 300 | 350 | 400 | ||||||
| Ejector force forward | kN | 196 | 251 | 332 | ||||||
| Number of ejector bar | PC | 1+16 | 1+28 | 1+28 | ||||||
| Oil tank capacity | L | 1300 | 1530 | 2210 | ||||||
| Machine dimensions(LxWxH) | m*m*m | 10.7x2.4x2.8 | 14.8x3.6x33 | 15x3.2x3.5 | ||||||
| Machine weight | Ton | 44 | 70 | 100 | ||||||

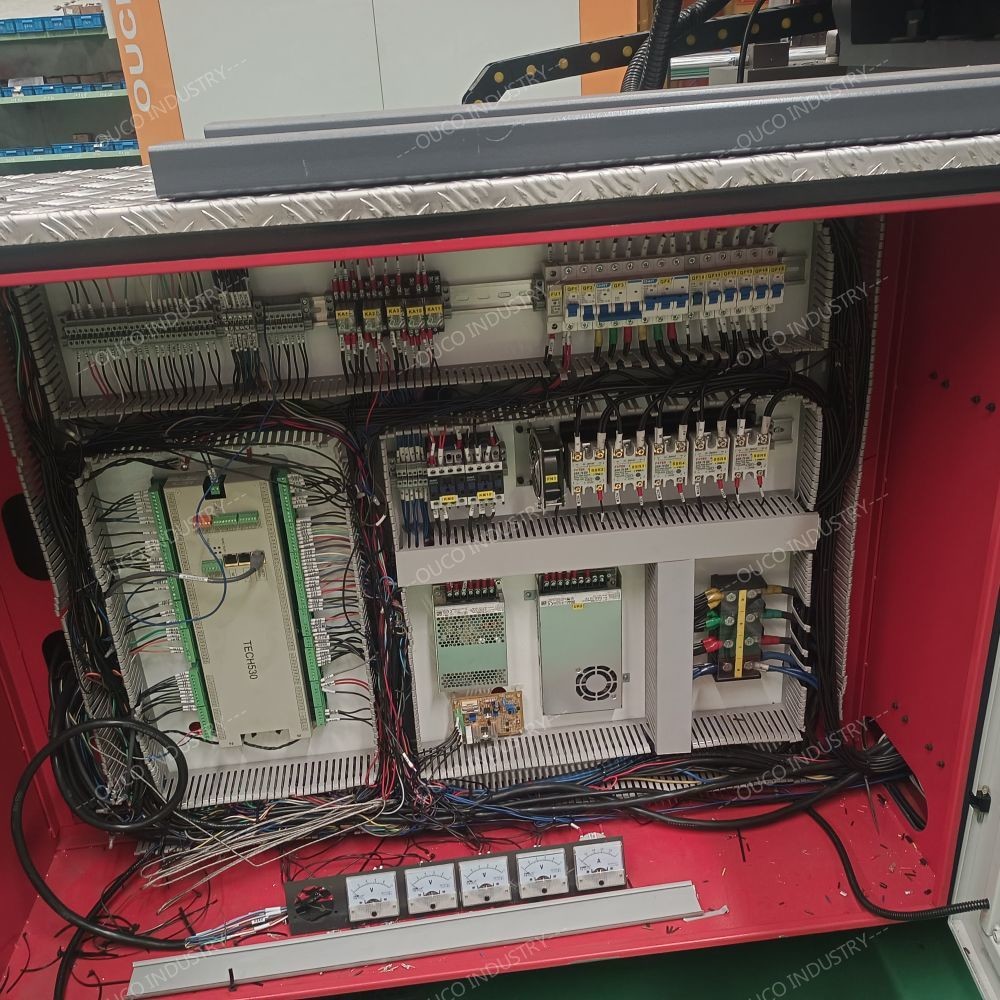

Detail Pictures
