| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-450/600 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |
| Product Name: | AutomaticPVC, UPVC, CPVC Injection Moulding Machine With Fast Response Time, Accurate Pressure | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
Advantage of OUCO GFServo Plastic Molding Machine
1. The one-piece chrome-plated screw specially designed for rigid PVC, UPVC, CPVC, and Powder PVC has super corrosion resistance and ensures balanced plasticization of the powder, which can make the plastic thermally stable at low temperature, high-efficiency plasticization rate, and stable injection Molding, finished product quality is excellent.
2. The storage hydraulic motor adopts high torque and low speed, which can improve the high-quality plasticizing ability, effectively shorten the cooling time, and reduce the cost of raw materials.
3. The widened sheet metal is specially designed for rigid PVC molds, which is convenient for the operator to install the mold, reduces the purchase cost of customers, and improves the safety of the operator.
4. Adopt solid state relay to control temperature to ensure accurate temperature.
5. Two sets of core pulling, each set has two inputs and two outputs, so as to meet the requirements of pulling cores for various PVC products.
6. Using servo drive control, the effect of saving electricity and energy is remarkable.
7. Adopt professionally designed air cover and air cooling device, good color mixing, good heat dissipation, and small material temperature deviation.
8. Multiple sets of core pulling and stainless steel screws are optional.
Product Paraments
| GF快速系列 | |||||||||||
| 机型 | CWI-280GF | CWI-350GF | |||||||||
| 合模装置 | 锁模力 Kn | Clamping Force | 2800 | 3500 | |||||||
| 拉杆间距 mm | Space Between Tie-bars | 630×630 | 710×710 | ||||||||
| 开模最大开距 mm | Clamping Stroke | 600 | 680 | ||||||||
| 最大模厚 mm | Mould Thickness Max | 650 | 720 | ||||||||
| 最小模厚 mm | Mould Thickness Min | 240 | 260 | ||||||||
| 模板尺寸 mm | Size of Platen | 915×915 | 1020×1020 | ||||||||
| 顶出长度 mm | Ejector Stroke | 170 | 200 | ||||||||
| 顶出力 Kn | Ejector Force | 80 | 80 | ||||||||
| 顶针数 | Ejector Quantily | 13 | 13 | ||||||||
| 注射装置 | 射胶装置 | Injection Unit | 860I | 1100I | 1100I | 1700I | |||||
| 螺杆直径 mm | Screw Diameter | 45 | 50 | 50 | 55 | 50 | 55 | 60 | 65 | 70 | |
| 螺杆长径比 | Screw L/D ratio | 23.3 | 21 | 23.1 | 21 | 23.6 | 21 | 22.8 | 21 | 19.5 | |
| 理论射胶容积 cm3 | Shot Size | 358 | 442 | 487 | 589 | 487 | 589 | 820 | 962 | 1115 | |
| 注射重量 (PS)g | Shot Weight | 329 | 406 | 448 | 542 | 448 | 542 | 754 | 885 | 1026 | |
| oz | 11.6 | 14.3 | 15.8 | 19.1 | 15.8 | 19.1 | 26.6 | 31.2 | 36.2 | ||
| 注塑压力 Mpa | Injection Pressure | 256 | 207 | 231 | 191 | 231 | 191 | 215 | 183 | 158 | |
| 注射速度 mm/s | Injection Speed | 231 | 207 | 259 | 193 | ||||||
| 注塑速率 cm3/s | Injection Rate | 367 | 453 | 406 | 492 | 508 | 614 | 545 | 640 | 742 | |
| 螺杆最大转速 rpm | Screw Speed | 400 | 350 | 350 | 300 | ||||||
| 其他 | 油泵电机功率 Kw | Motor Power | 34+34 | 34+36 | |||||||
| 油泵排量 L/min | 352 | 440 | |||||||||
| 电热功率 Kw | Heater Power | 13 | 15.9 | 15.9 | 22.4 | ||||||
| 机器净重 ton | Machine Weight | 11.8 | 13 | ||||||||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 6375×1680×2250 | 6705×1920×2350 | ||||||||

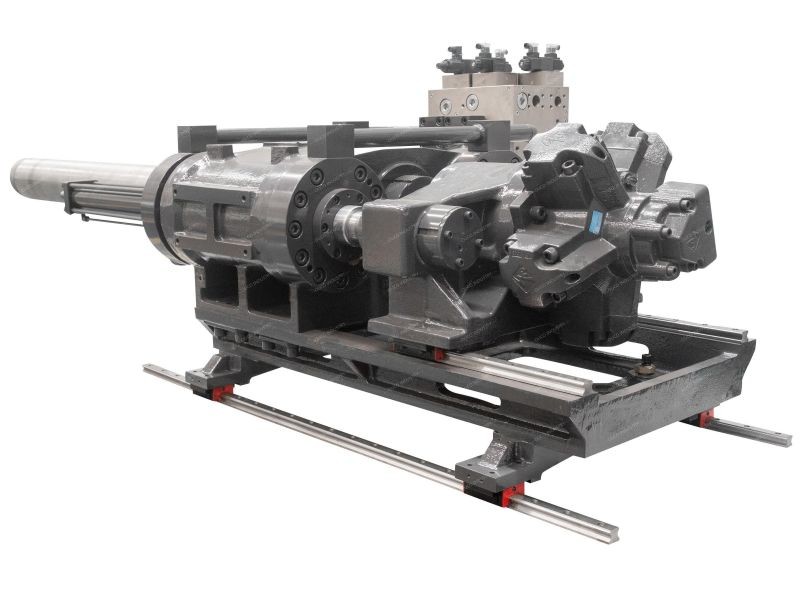

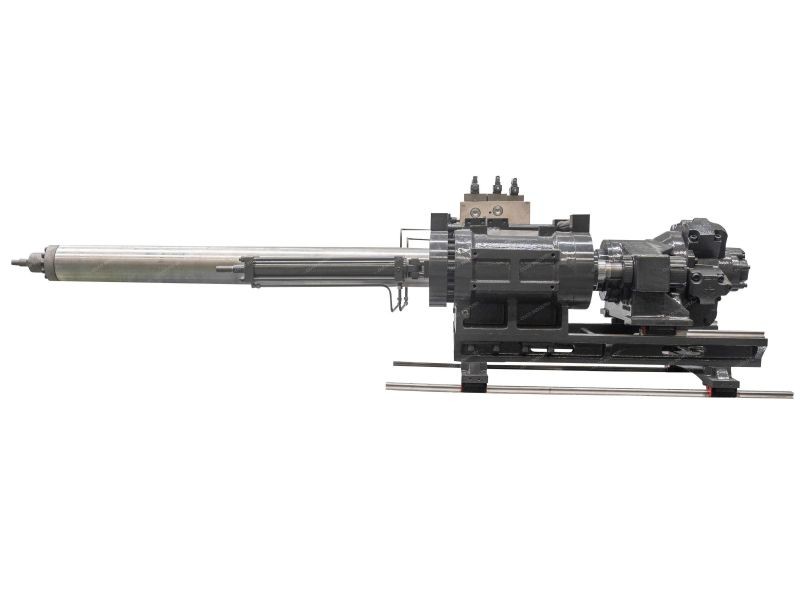

Detailed Pictures
