| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-450/600 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

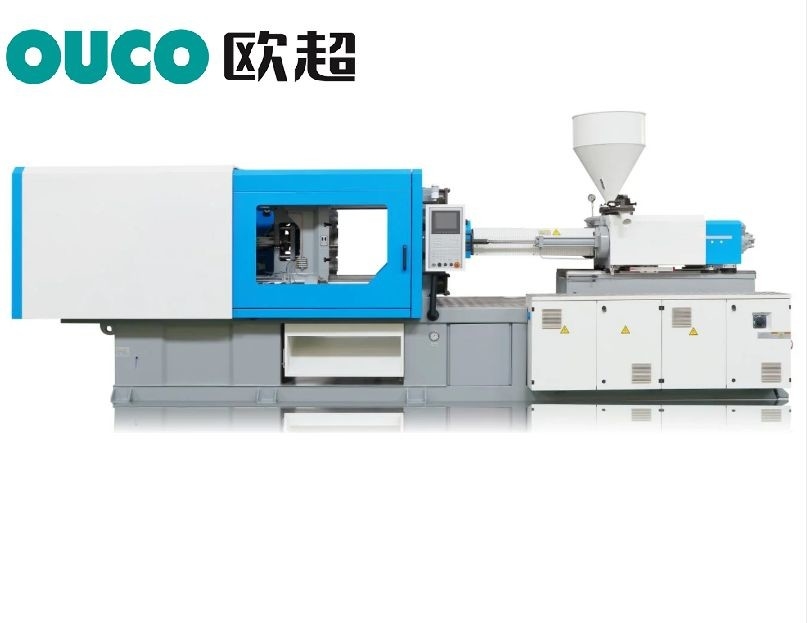

| Product Name: | GF OUCO 450T-600T Injection Molding Machine High Speed With Speed Control, High Forming Precision | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| Highlight: | 600T high speed injection machine,450Ton high speed injection machine,GF servo injection molding machine |
||
Advantage of OUCO GFServo Plastic Molding Machine
1. Advantages of the plasticizing part: using good materials, barrel and screw, fast melting and shortening the melting time. The connection and positioning of the nozzle and the precursor flange is designed as built-in positioning, which is more effective. The connection and positioning of the nozzle and the precursor flange is designed as a built-in positioning, which has better effect and is not easy to leak glue. High pressure and high speed will not easily cause the precursor to crack.
2. Advantages of the sheet metal door part: the sheet metal door part adopts a fully enclosed mold locking door, which can effectively prevent foreign objects from entering the clamping device, which is more beautiful and safer. The mechanical safety door adopts a brake line braking device, which is safe, reliable and flexible convenient.
3.Some advantages of hydraulic system: unique hydraulic oil circuit design adopts cartridge valve plate, fast response time, accurate pressure and speed control, high forming precision.
Product Paraments
| GF快速系列 | ||||||||||||||
| 机型 | CWI-450GF | CWI-600GF | ||||||||||||
| 合模装置 | 锁模力 Kn | Clamping Force | 4500 | 6000 | ||||||||||
| 拉杆间距 mm | Space Between Tie-bars | 820×820 | 920×920 | |||||||||||
| 开模最大开距 mm | Clamping Stroke | 790 | 900 | |||||||||||
| 最大模厚 mm | Mould Thickness Max | 800 | 900 | |||||||||||
| 最小模厚 mm | Mould Thickness Min | 300 | 350 | |||||||||||
| 模板尺寸 mm | Size of Platen | 1170×1170 | 1320×1320 | |||||||||||
| 顶出长度 mm | Ejector Stroke | 220 | 250 | |||||||||||
| 顶出力 Kn | Ejector Force | 113 | 151 | |||||||||||
| 顶针数 | Ejector Quantily | 13 | 21 | |||||||||||
| 注射装置 | 射胶装置 | Injection Unit | 1700I | 2800I | 2800I | 4000I | ||||||||
| 螺杆直径 mm | Screw Diameter | 60 | 65 | 70 | 70 | 75 | 80 | 70 | 75 | 80 | 80 | 85 | 90 | |
| 螺杆长径比 | Screw L/D ratio | 22.8 | 21 | 19.5 | 22.3 | 21 | 19.8 | 22.3 | 21 | 19.8 | 22.3 | 21 | 19.8 | |
| 理论射胶容积 cm3 | Shot Size | 820 | 962 | 1115 | 1385 | 1590 | 1809 | 1385 | 1590 | 1809 | 2060 | 2325 | 2607 | |
| 注射重量 (PS)g | Shot Weight | 754 | 885 | 1026 | 1274 | 1462 | 1664 | 1274 | 1462 | 1664 | 1895 | 2139 | 2398 | |
| oz | 26.6 | 31.2 | 36.2 | 44.9 | 51.6 | 58.7 | 44.9 | 51.6 | 58.7 | 66.8 | 75.5 | 84.6 | ||
| 注塑压力 Mpa | Injection Pressure | 215 | 183 | 158 | 204 | 178 | 156 | 204 | 178 | 156 | 196 | 174 | 155 | |
| 注射速度 mm/s | Injection Speed | 217 | 168 | 187 | 149 | |||||||||
| 注塑速率 cm3/s | Injection Rate | 614 | 720 | 835 | 647 | 743 | 845 | 508 | 825 | 939 | 748 | 845 | 947 | |
| 螺杆最大转速 rpm | Screw Speed | 300 | 250 | 250 | 200 | |||||||||
| 其他 | 油泵电机功率 Kw | Motor Power | 36+48 | 48+48 | ||||||||||
| 油泵排量 L/min | 495 | 550 | ||||||||||||
| 电热功率 Kw | Heater Power | 22.4 | 30.2 | 30.2 | 43.9 | |||||||||
| 机器净重 ton | Machine Weight | 20 | 32 | |||||||||||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 7960×2100×2460 | 10000×2320×2470 | |||||||||||

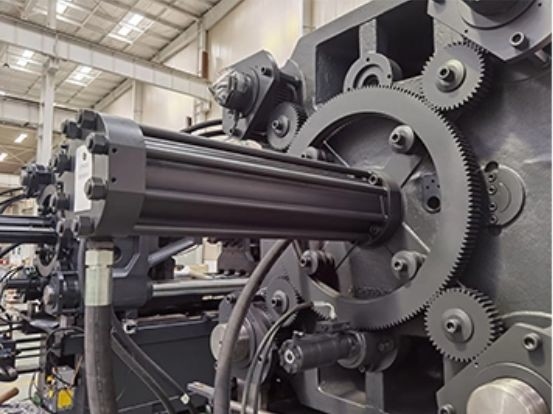

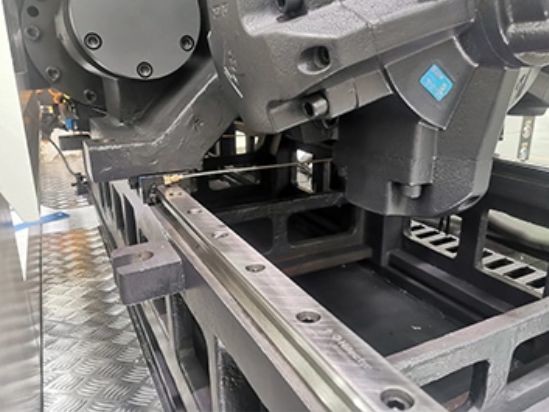

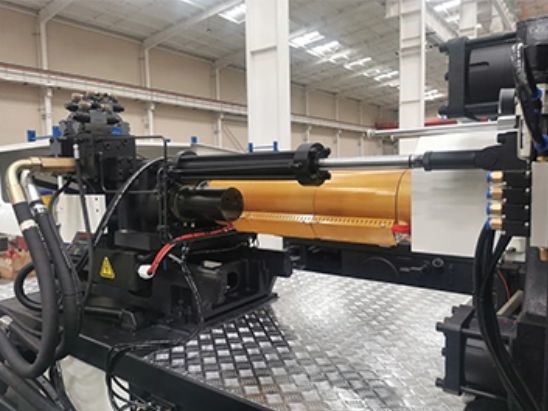

Detailed Pictures
