| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-400/500/600T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |
| Product Name: | High-Quality Speed Mini Plastic Molding Machine For Cup Production Line | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
OUCO's special injection molding machine developed for fruit crates and other products. It makes our plastic crate injection molding machines perfectly match with crate molds to ensure higher production capacity and stable product quality.
Advantage of OUCO Mini Plastic Molding Machine
1. Reinforced steel plate and square tube for machine frame Strengthened toggle, bushing and platen Tie bars are manufactured from high grade steel Longer mould opening and ejector stroke and stronger ejection force Moving platen using lubrication free bushing
2. Advantage of the injection unit: The double cylinder structure on the injection unit can ensure cantering performance of the nozzle and seal betten between mould and nozzle, so no plastic leaks. Higher injection accuracy, low coefficient friction and more uniform during injection and plasticising process; easy to adjust and greatly reduce movement inertia during injection, hence improve injection speed and plasticising capacity
3. Advantage of computer control unit: Our European computer control unit has high speed CPU and DSP module and it increases high control to analogue output module, back plane module and has fast response.
5.Advantage of enclosed slide door: The fully enclosed slide door could effectively prevent foreign matter entre the clamping unit, and is beautiful and more secure. Mechanical safety door use brakes device or brake line, it is safe and reliable, flexible and convenient.
6. Advantage of the hydraulic unit: Unique hydraulic circuit design using cartridge valve plate. It has fast response time, pressure and speed control is precise, so higher product precision and repeatability
7. Advantage of plasticising unit: Adopt high quality material barrel screw, plastic melting is fast, so reduces melting time. Injection nozzle and front flange connection design is inside position, result in better connection, hard to leak and can withstand high pressure and high speed injection.
Product Paraments
| CWI-110GB CWI-150GB | |||||||||||
| 机型 | CWI-110GB | CWI-150GB | |||||||||
| 合模装置 | 锁模力 Kn | clamping force (kN) | 1100 | 1500 | |||||||
| 拉杆间距 mm | Tie bar distance W×L (mm) | 420×420 | 470×470 | ||||||||
| 开模最大开距 mm | Clamping Stroke | 400 | 450 | ||||||||
| 最大模厚 mm | Max. mold thickness (mm) | 450 | 520 | ||||||||
| 最小模厚 mm | Min. mold thickness(mm) | 150 | 170 | ||||||||
| 模板尺寸 mm | Platen Dimensions W×L (mm) | 605×605 | 680×680 | ||||||||
| 顶出长度 mm | Ejector Stroke | 110 | 140 | ||||||||
| 顶出力 Kn | Ejector Force | 38 | 53 | ||||||||
| 顶针数 | Ejector Quantily | 5 | 5 | ||||||||
| 310D | 420D | 420D | 650D | ||||||||
| 注射装置 | 螺杆直径 mm | Screw Diameter(mm) | 28 | 32 | 35 | 35 | 40 | 35 | 40 | 40 | 45 |
| 螺杆长径比 | Screw L/D ratio | 23.4 | 23 | 21 | 24 | 21 | 24 | 21 | 23.6 | 21 | |
| 理论射胶容积 cm3 | Theoretical injection volume (cm3) | 89 | 117 | 140 | 163 | 214 | 163 | 214 | 251 | 318 | |
| 注射重量 (PS)g | Shot Weight | 81 | 108 | 129 | 150 | 196 | 150 | 196 | 231 | 292 | |
| 注塑压力 Mpa | Injection Pressure(MPa) | 306 | 234 | 204 | 256 | 196 | 256 | 196 | 240 | 190 | |
| 注射速度 mm/s | Injection Speed | 129 | 101 | 126 | 100 | ||||||
| 注塑速率 cm3/s | Injection Rate (cm3/s) | 76 | 99 | 119 | 93 | 121 | 116 | 151 | 138 | 175 | |
| 螺杆最大转速 rpm | Screw Speed | 330 | 250 | 300 | 220 | ||||||
| 其他 | 油泵电机功率 Kw | Motor Power | 16 | 20 | |||||||
| 油泵排量 L/min | 88 | 110 | |||||||||
| 电热功率 Kw | Heater Power | 7.11 | 8.91 | 8.91 | 10.9 | ||||||
| 机器净重 ton | Machine Weight (kg) | 4.2 | 5.2 | ||||||||
| 机器尺寸(长×宽×高) mm | Machine size L×W×H (mm) | 4255×1430×1690 | 5095×1500×1745 | ||||||||

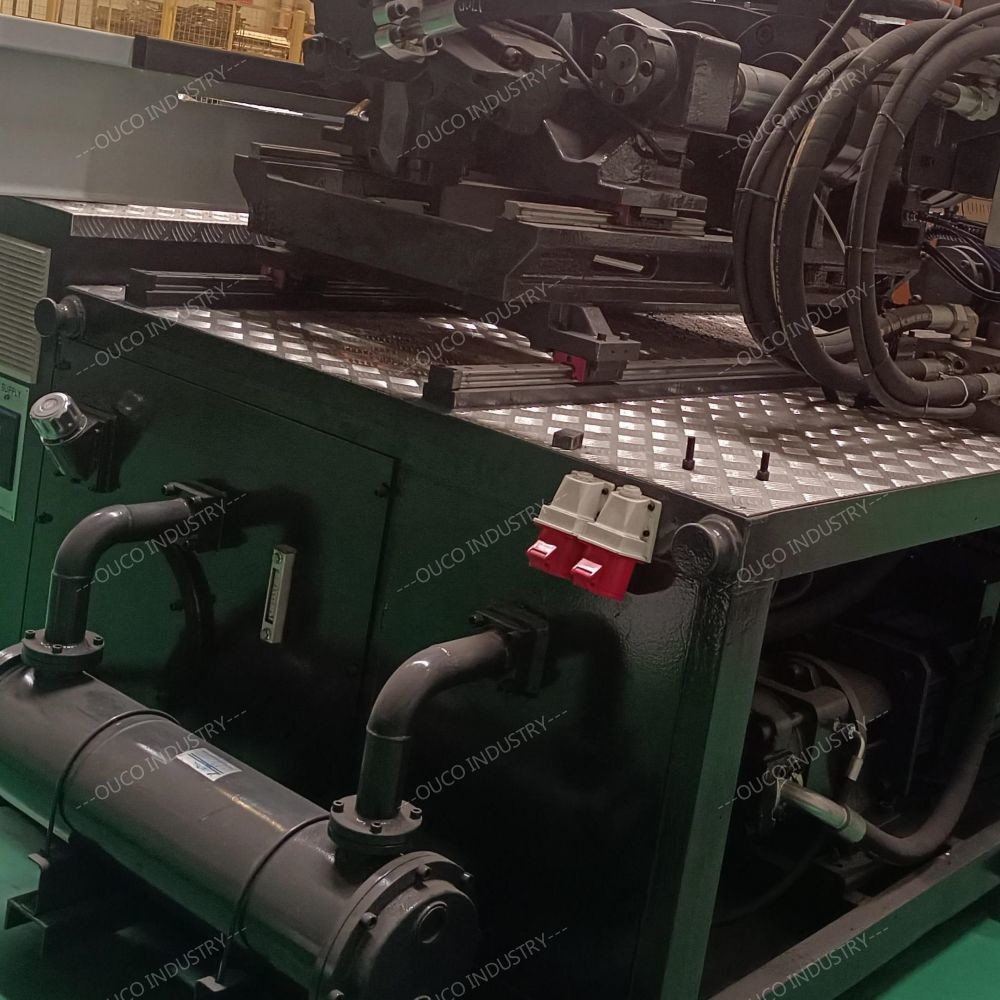

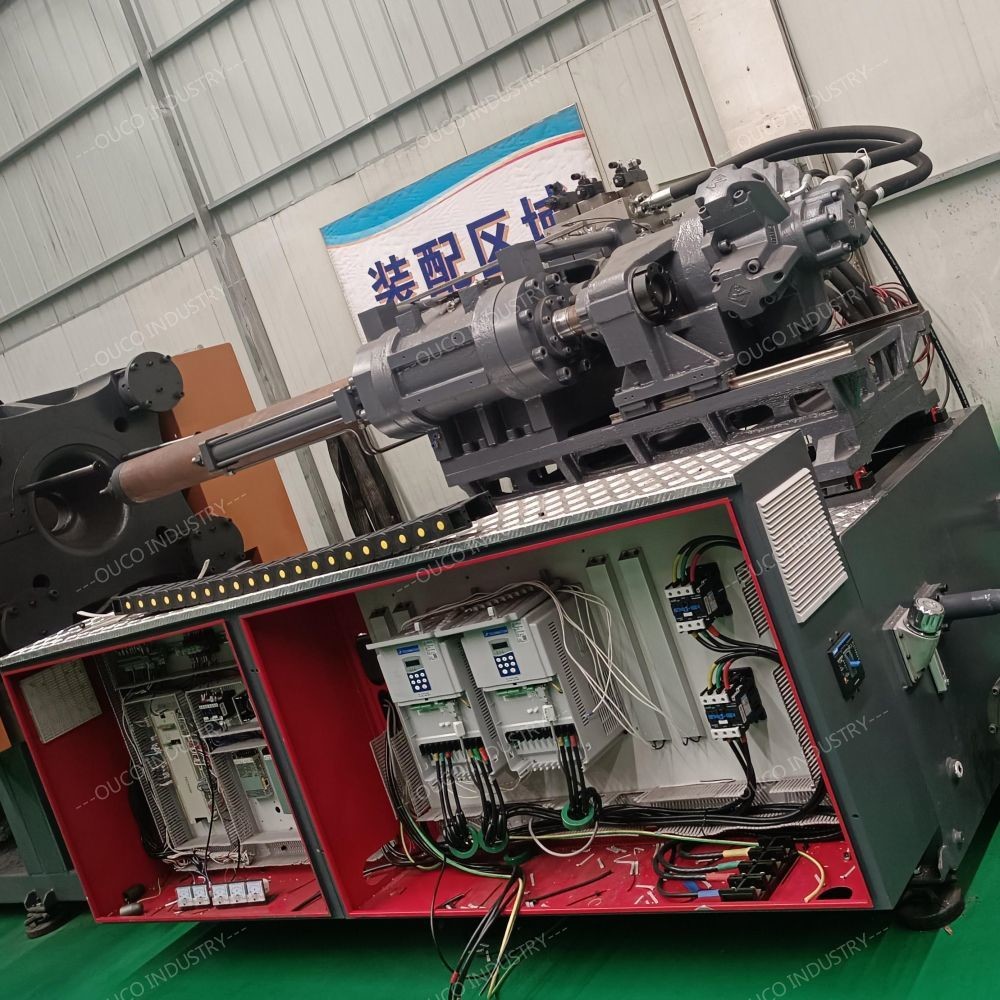

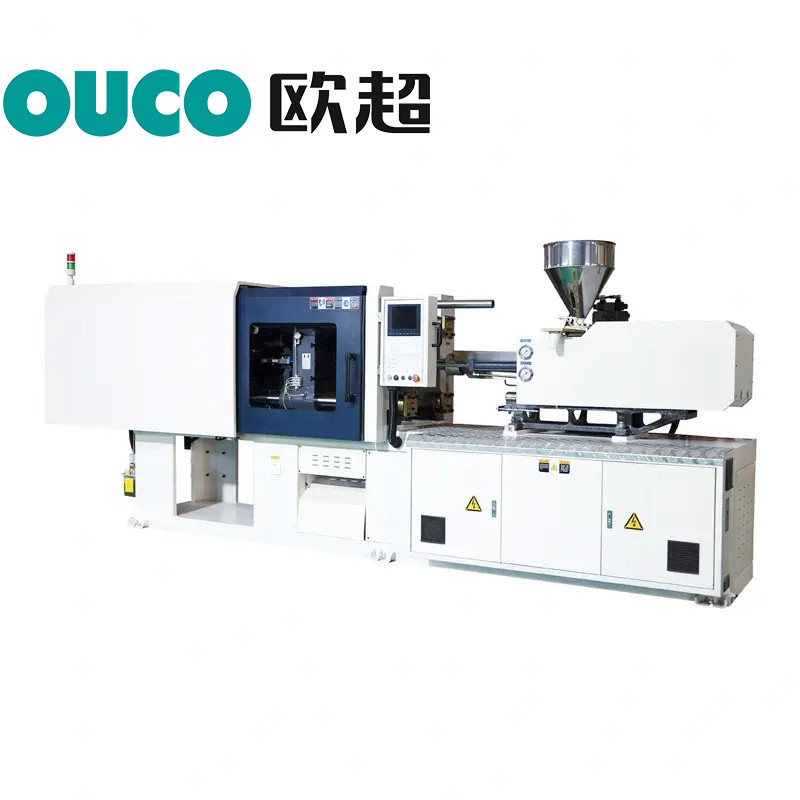

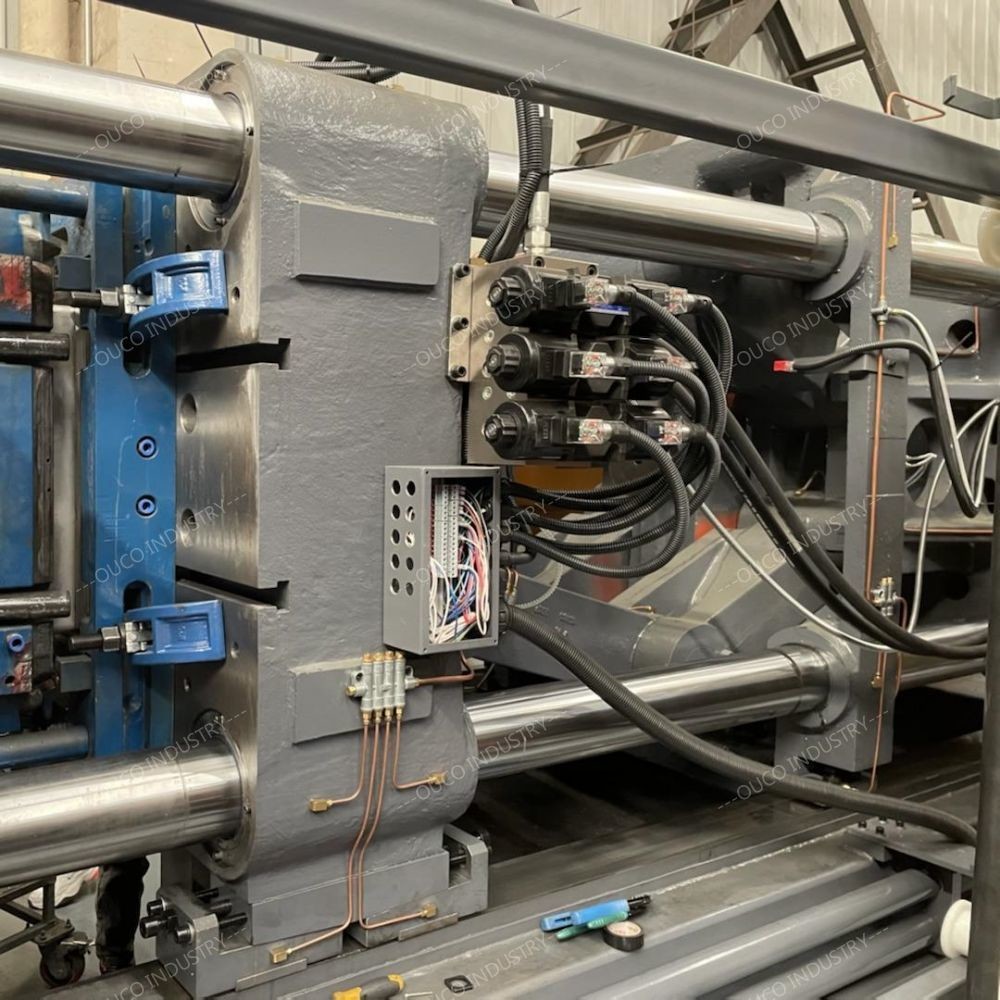

Detailed Pictures
