| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-2200T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 2200 T Servo Injection Molding Machine With Operator's Manual | Type: | Automation |
|---|---|---|---|

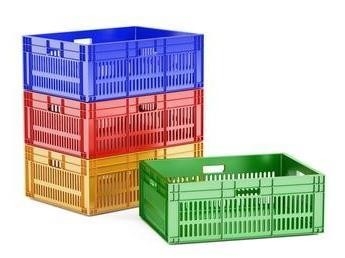

| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | OUCO 2200 ton injection molding machine,110mm 2200 ton injection molding machine,197MPa high efficiency injection molding machine |
||

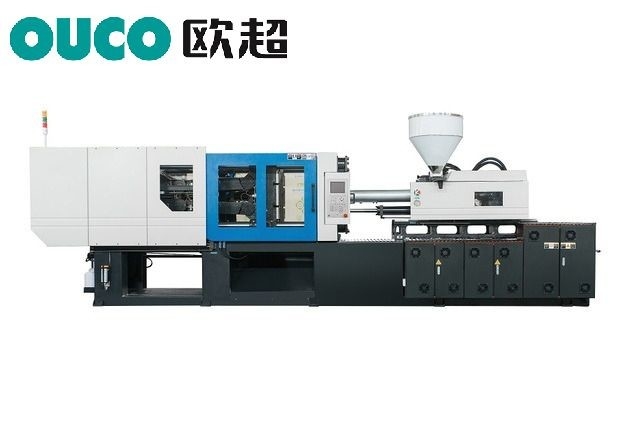

2200 T Servo Injection Molding Machine With Operator's Manual
High quality features
The "new breakthrough" of hydraulic injection molding machine - "pressure valve ring control" and "energy supply and demand matching", leading the development trend of injection molding machine!
Pressure valve loop control. Real-time comparison of actual pressure and set pressure, and correction until the actual pressure is equal to the set pressure.
Energy supply and demand matching: The electric system will provide the corresponding energy according to the working needs of the injection molding machine, and the energy loss is very small.
Super energy saving
40% energy saving than variable pump system. 60% energy saving than fixed pump + fixed speed motor (energy saving varies depending on the product).
High precision and high response
Adopt high-precision and high-sensitivity pressure sensor and rotary encoder to realize closed-loop control of pressure and flow rate, and repeat progress error is less than 1%. It takes only 0.05 seconds for the servo motor to reach the maximum output power.
Low noise
The noise value is within 78db. When the machine is not moving, the servo motor stops rotating and there is almost no noise.
Saving cooling water
Adopting the overflow heating method of "no fixed pump + fixed speed motor system". The temperature of hydraulic oil is lower, and the amount of cooling water is greatly reduced.
New clamping structure
Adopting five-point toggle clamping mechanism of internal rolling, casting linkage and template, reinforced by finite element analysis, can effectively reduce stress and deformation and improve the stiffness and precision of clamping part.
New power composition

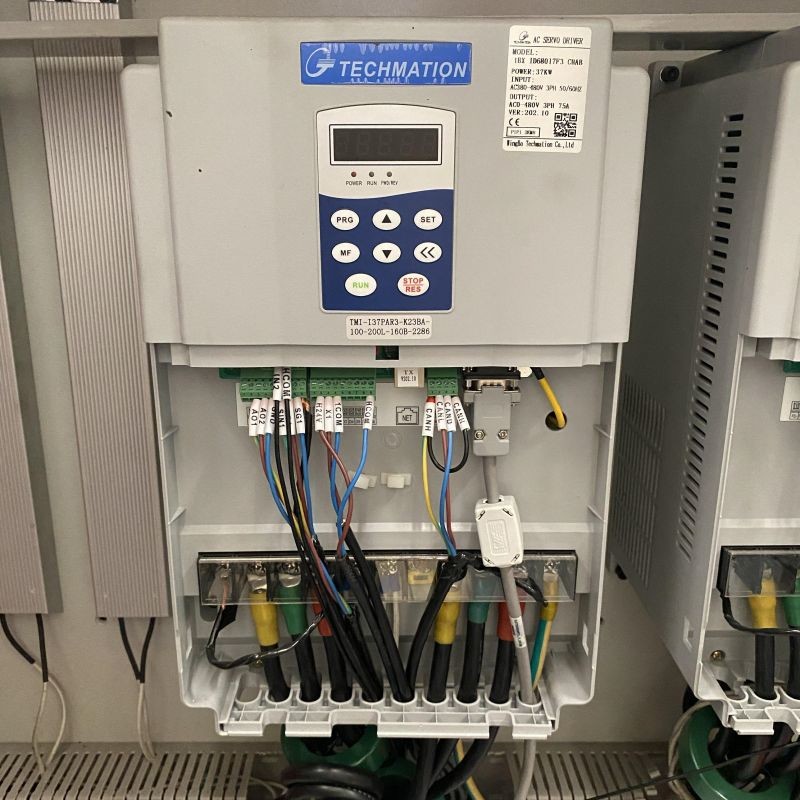

The new power system consisting of servo motor, servo driver, pressure sensor, rotary encoder, gear pump and high precision special controller best meets the energy requirement of injection molding machine.
Product Parameters
| Model | 1400T | 1850T | 2200T | |||||||
| Screw Specifications | A | B | C | A | B | C | A | B | C | |
| Screwdi ameter | mm | 110 | 120 | 130 | 125 | 135 | 145 | 135 | 145 | 155 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 5177 | 6161 | 7230 | 8034 | 9371 | 10811 | 10015 | 11553 | 13202 |
| Shot weight (PS) | g | 4763 | 5668 | 6652 | 7391 | 8621 | 9946 | 9213 | 10629 | 12146 |
| injection rate(Ps) | g/S | 1651 | 1384 | 1628 | 1275 | 1488 | 1717 | 1647 | 1932 | 2208 |
| Injection pressure | MPa | 197 | 165 | 141 | 197 | 169 | 146 | 187 | 162 | 142 |
| Inject on stroke | mm | 545 | 655 | 700 | ||||||
| Max. injection speed | mm/s | 130 | 130 | 124 | ||||||
| Screw speed | r/min | 0-180 | 0-160 | 0-150 | ||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | ||||||
| Pump Motor(Min-Max) | kW | 178 | 210 | 235 | ||||||
| Displacement | ml/r | 160+160+160 | 160+160+125 + 125 | 125+125+125+125+125 | ||||||
| number of Motors | PC | 3 | 4 | 5 | ||||||
| Heater power | kW | 68 | 89 | 115 | ||||||
| Number oftemp. control zones | 6+1 | 7+1 | 8+1 | |||||||
| Clamping force | kN | 14000 | 18500 | 22000 | ||||||
| Opening stroke | mm | 1900 | 2300 | 2500 | ||||||
| Tie bar distance W×L | mm*mm | 1460x1320 | 1620x1460 | 1760x1560 | ||||||
| Min. mold thickness | mm | 700 | 750 | 750 | ||||||
| Max. mold thickness | mm | 1400 | 1600 | 1750 | ||||||
| Ejector stroke | mm | 350 | 400 | 450 | ||||||
| Ejector force forward | kN | 251 | 332 | 425 | ||||||
| Number of ejector bar | PC | 1+28 | 1+28 | 1+28 | ||||||
| Oil tank capacity | L | 1530 | 2210 | 2550 | ||||||
| Machine dimensions(LxWxH) | m*m*m | 14.8x3.6x33 | 15x3.2x3.5 | 18.5x3.6x3.7 | ||||||
| Machine weight | Ton | 70 | 100 | 140 | ||||||

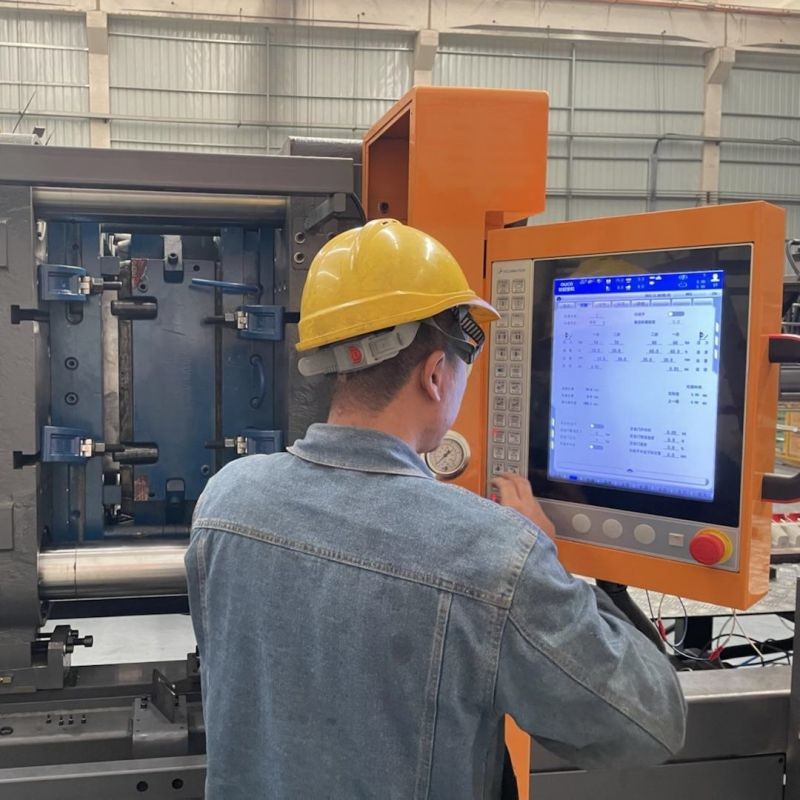

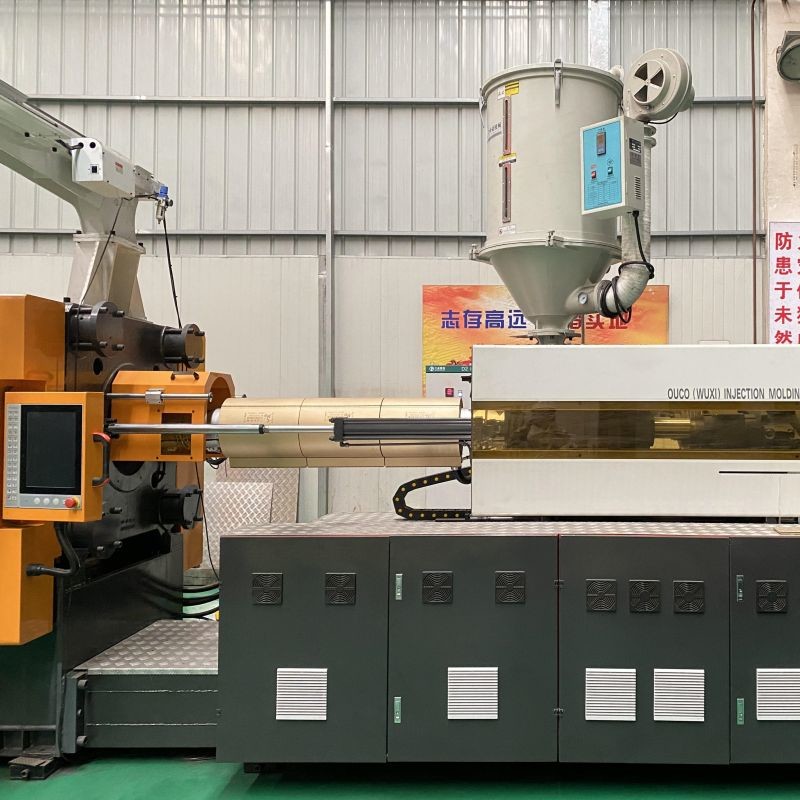

Detail Pictures
