| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-2200T/2500T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

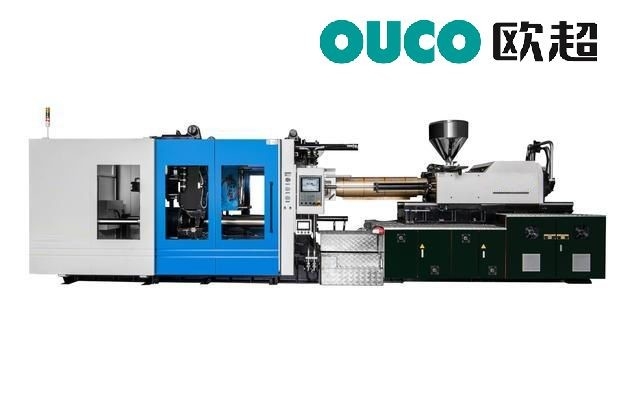

| Product Name: | 2200 Ton Low Pressure Servo Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 2200 Ton servo plastic injection moulding machine,SGS servo plastic injection moulding machine,2500Ton low pressure injection molding machine |
||
High Quality Features
The "new breakthrough" of hydraulic injection molding machine, "pressure valve ring control" and "energy supply and demand matching", leads the development trend of injection molding machine!
Pressure valve loop control: Real-time comparison of actual pressure and set pressure, and correction until the actual pressure equals the set pressure.
Energy supply and demand matching: the electric system will provide as much energy as the injection molding machine needs to do its work, with very little energy loss.
Super energy saving
40% energy saving than variable pump system. 60% energy saving than fixed pump + fixed speed motor (energy saving effect varies according to the product).
High precision and high response
Adopting high-precision and high-sensitivity pressure sensor and rotary encoder, closed-loop control of pressure and flow is realized, and the error of repeated progress is less than 1%. It takes only 0.05 seconds for the servo motor to reach the maximum output power.
Low noise
The noise value is within 78db. When the machine is not moving, the servo motor stops rotating and there is almost no noise.
Cooling water saving
Overflow heating is adopted by "no fixed pump + fixed speed motor system". The temperature of the hydraulic oil is lower, which greatly reduces the amount of cooling water
New clamping structure
The five-point toggle clamping mechanism for internal rolling, casting linkage and template, strengthened by finite element analysis, can effectively reduce stress and deformation and improve the stiffness and accuracy of the clamping part.
New power composition
The new power system consisting of servo motor, servo driver, pressure sensor, rotary encoder, gear pump and high-precision special controller best matches the energy demand of the injection molding machine.
Energy supply and demand matching:How much energy the injection molding machine does and how much energy the power system provides, with minimal energy loss.

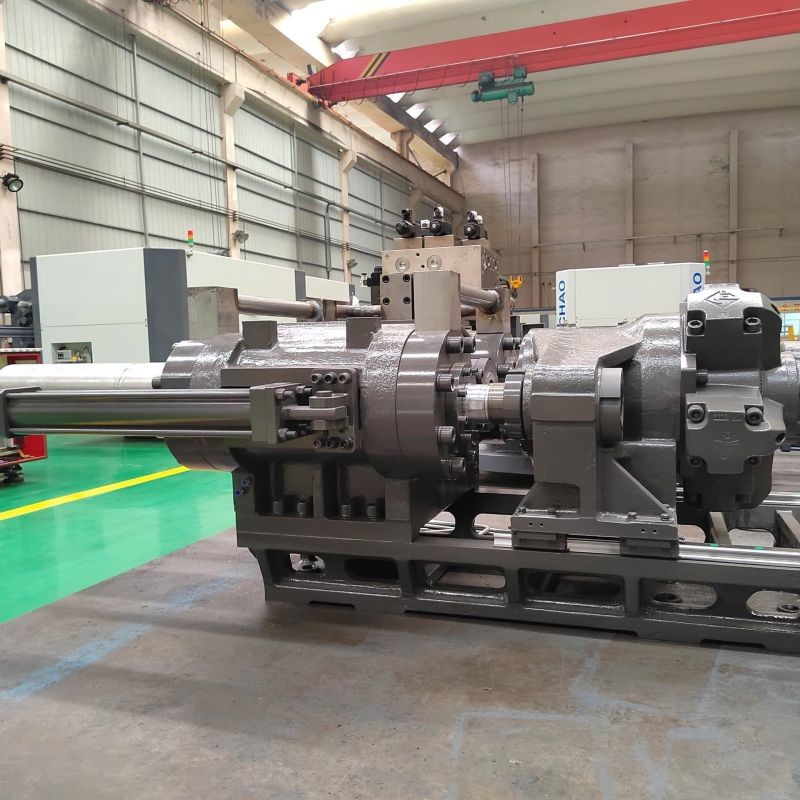

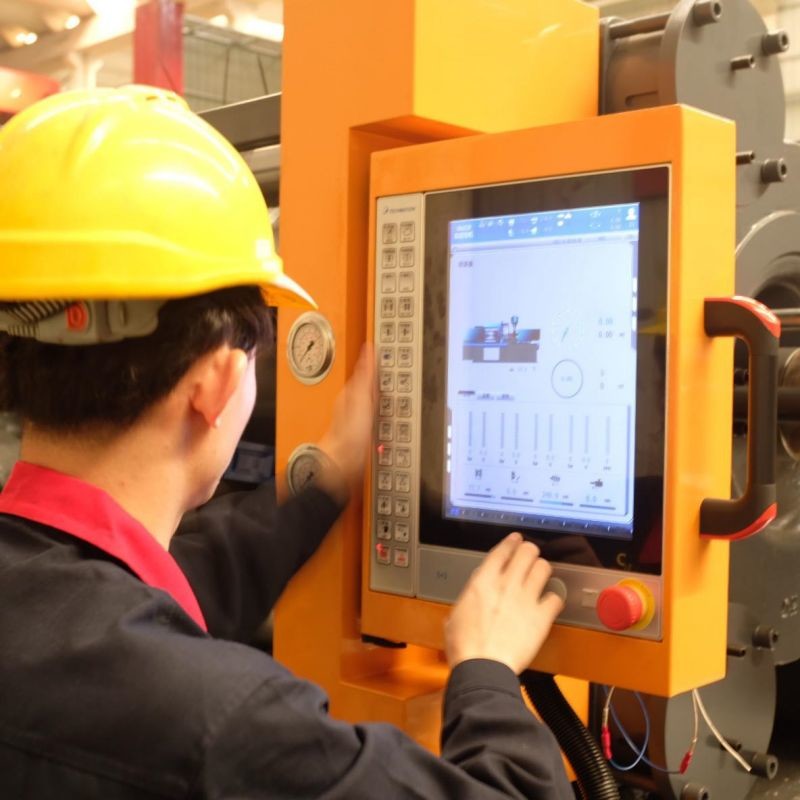

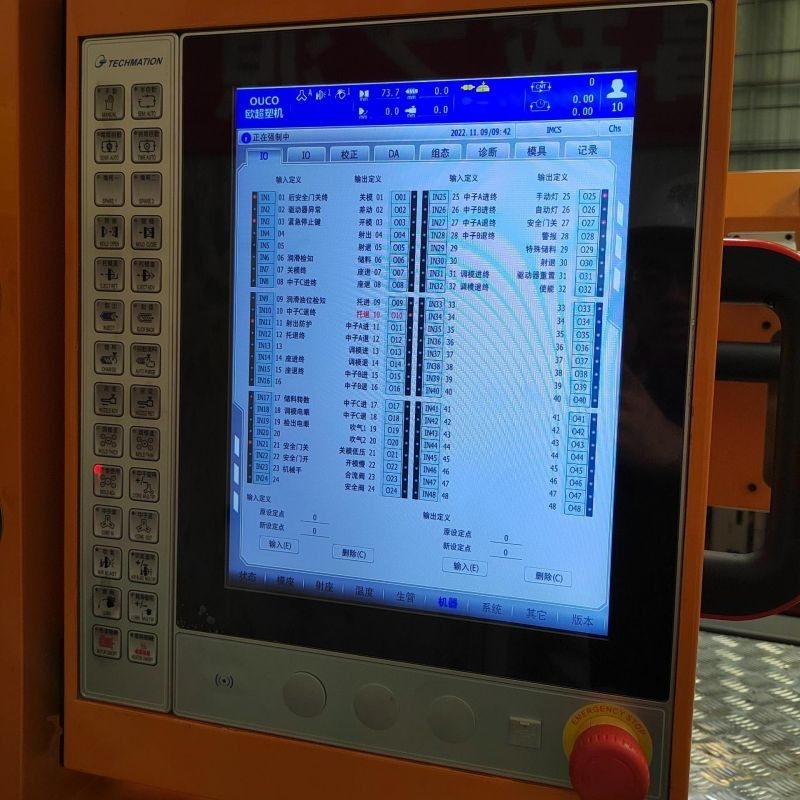

Detail Pictures
