| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-2000T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

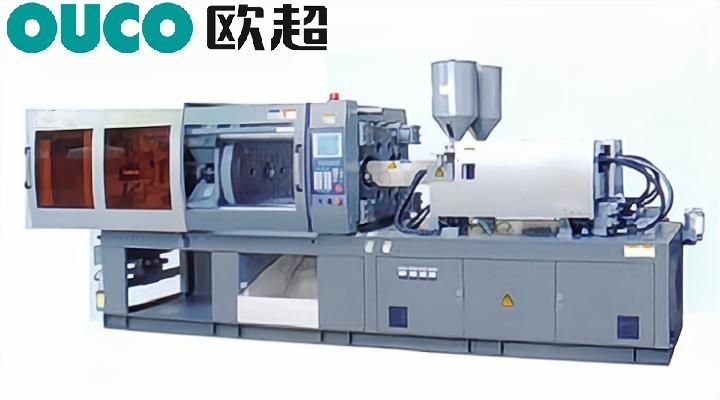

| Product Name: | High Configuration Big Deep Cavity Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 209MPa Large Injection Molding Machine,85mm Large Injection Molding Machine,SGS High Configuration plastic molding machine |
||
Outstanding design features make OUCO's injection moulding machines versatile, more efficient, durable and easy to maintain.
Components from world renowned manufacturers and brands such as our Phase or Modrol servo systems, KEBA brand controllers, Eckerle gear pumps, electrical components and lubrication components are designed with very robust mechanical components.
All types of thermoplastic and thermoset materials can be processed using a wide range of screws and barrels suitable for every application.
With clamping forces ranging from 300 to 2000 tonnes, you can be sure that OUCO products will give you the highest returns and the lowest costs.
Parameters
| Model | 700T | 900T | 1000T | |||||||
| Screw Specifications | A | B | C | A | B | C | A | B | C | |
| Screwdi ameter | mm | 85 | 90 | 100 | 90 | 100 | 110 | 100 | 100 | 120 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 2552 | 2861 | 3533 | 3147 | 3886 | 4702 | 4329 | 4329 | 6104 |
| Shot weight (PS) | g | 2348 | 2632 | 3250 | 2896 | 3575 | 4326 | 3900 | 3900 | 5616 |
| injection rate(Ps) | g/S | 788 | 883 | 1091 | 975 | 1204 | 1457 | 920 | 920 | 1325 |
| Injection pressure | MPa | 209 | 187 | 151 | 214 | 173 | 143 | 204 | 204 | 142 |
| Inject on stroke | mm | 450 | 495 | 540 | ||||||
| Max. injection speed | mm/s | 147 | 146 | 137 | ||||||
| Screw speed | r/min | 0-180 | 0-180 | 0-180 | ||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | ||||||
| Pump Motor(Min-Max) | kW | 114 | 141 | 151 | ||||||
| Displacement | ml/r | 160+160 | 125+125+125 | 160+125+125 | ||||||
| number of Motors | PC | 2 | 3 | 3 | ||||||
| Heater power | kW | 52 | 59 | 61 | ||||||
| Number oftemp. control zones | 5+1 | 5+1 | ||||||||
| Clamping force | kN | 7000 | 9000 | 10000 | ||||||
| Opening stroke | mm | 1300 | 1500 | 1700 | ||||||
| Tie bar distance W×L | mm*mm | 1020x920 | 1120x1030 | 1210x1060 | ||||||
| Min. mold thickness | mm | 450 | 450 | 500 | ||||||
| Max. mold thickness | mm | 1050 | 1150 | 1200 | ||||||
| Ejector stroke | mm | 210 | 270 | 300 | ||||||
| Ejector force forward | kN | 113 | 152 | 196 | ||||||
| Number of ejector bar | PC | 1+12 | 1+16 | 1+16 | ||||||
| Oil tank capacity | L | 1020 | 1190 | 1300 | ||||||
| Machine dimensions(LxWxH) | m*m*m | 9.7x2.2x2.4 | 10.2x2.2x2.5 | 10.7x2.4x2.8 | ||||||
| Machine weight | Ton | 25 | 39 | 44 | ||||||

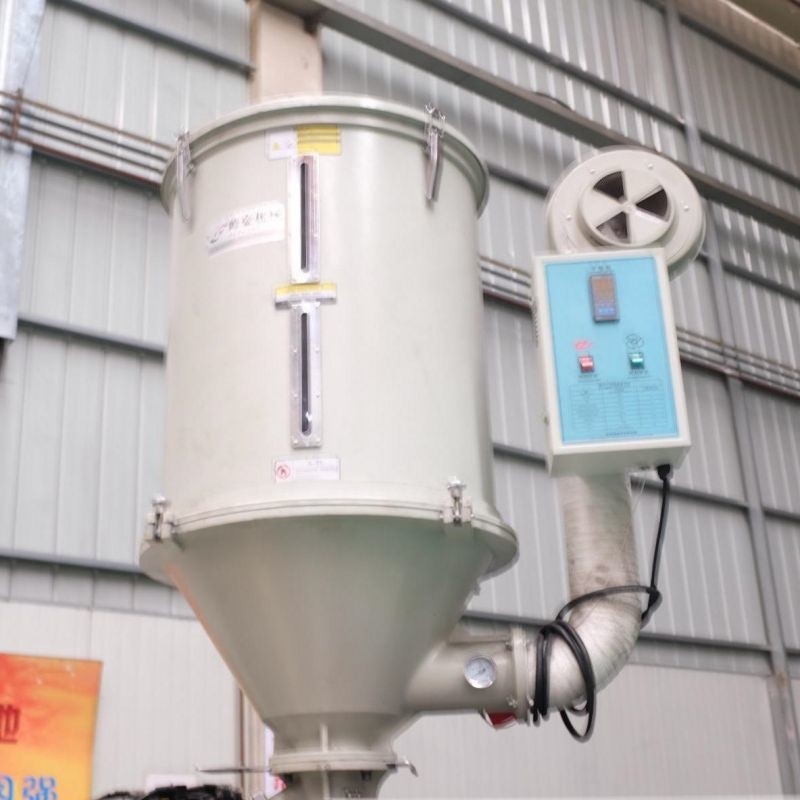

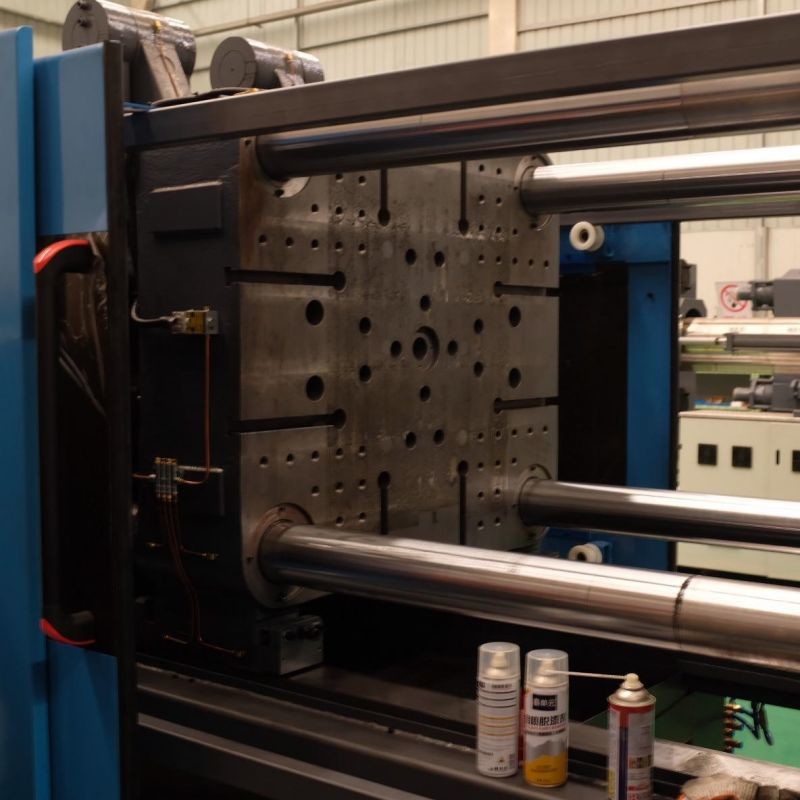

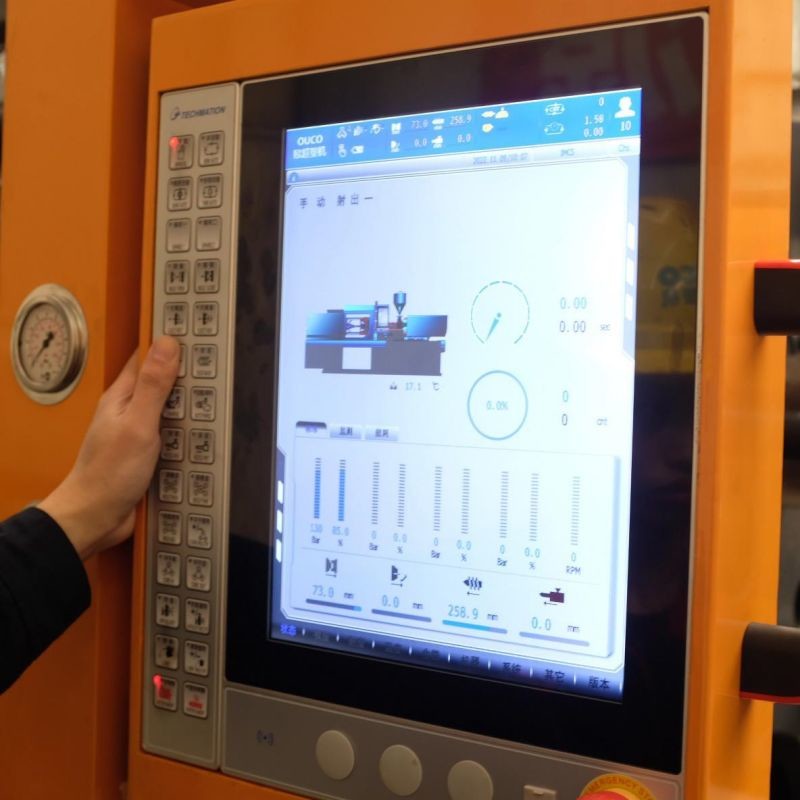

Detail Pictures
