| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-HS-530T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

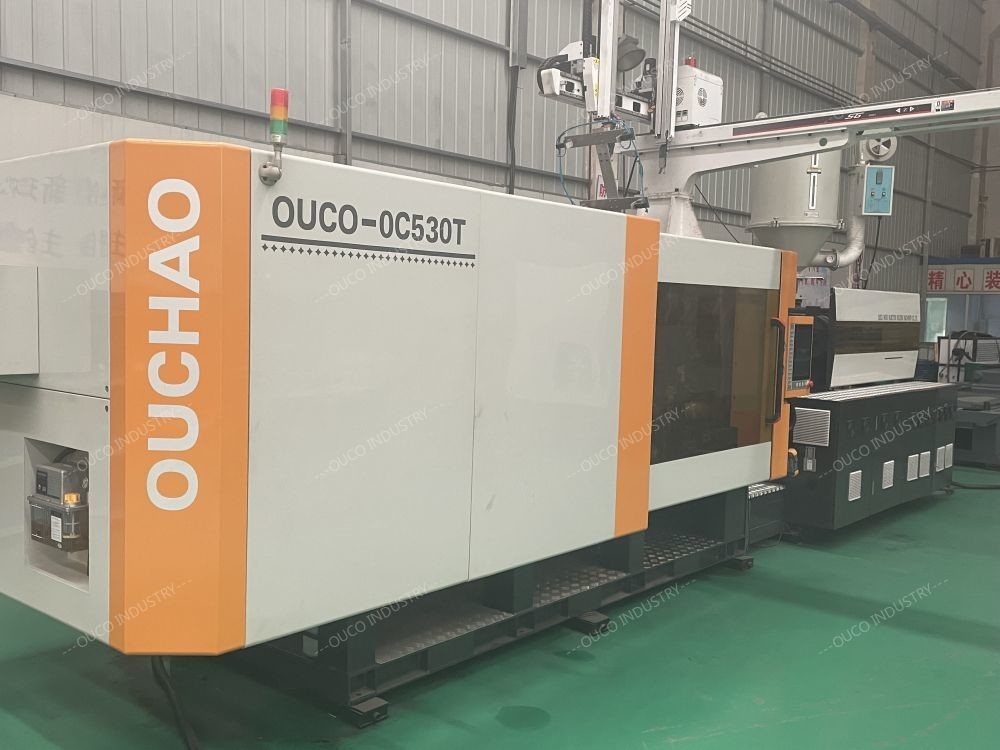

| Product Name: | Civilian Injection Moulding Machine Big Deep Cavity 5300Kn Clamping Force | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 5300Kn automatic moulding machine,530T automatic moulding machine,Civilian Injection Moulding Machine |
||
Excellent design features make Elite machinery very versatile to use high productivity, durability, and easy to maintain.
Elite utilizes key components from the world-renowned manufacturing of Servo system, Microprocessor controller hydraulic systems electrical parts and lubrication parts.
The design utilizes very sturdy mechanical components.
Ability to process all types of Thermoplastic and Thermoset materials with a wide range of Screw and Barrel for each application.
Machine range from 550 Ton to 3300 Ton and Immediately available range from 400 Ton to 2200 Ton.
Elite machine offers the best combination of ROI (Return of Investment) and COW (Cost of Ownership).
Product Advantages
Precision Control Technology For All Applications
intuitive Operation Touch Screens
Exclusive and Standard with Larger Tonnage All-Electric Machines
Full Stroke Mold Protection
Provide you with a variety of clamp and injection devices
Parameters
| MODEL | 500T | 600T | |||||
| Spiral Specification | A | B | C | A | B | C | |
| Screw di ameter | mm | 70 | 75 | 85 | 75 | 85 | 90 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection capacity | cm3 | 1481 | 1700 | 2184 | 1788 | 2297 | 2575 |
| Shot weight (PS) | g | 1377 | 1581 | 2031 | 1645 | 2113 | 2369 |
| injection rate(Ps) | g/S | G03 | 693 | 890 | G13 | 788 | 884 |
| Injection pressure | MPa | 209 | 182 | 142 | 204 | 159 | 142 |
| Injection stroke | mm | 385 | 405 | ||||
| Max. injection speed | mm/s | 166 | 157 | ||||
| Screw speed | r/min | 0-200 | 0-200 | ||||
| Sys. Pressure | MPa | 16 | 16 | ||||
| Pump Motor(Min-Max) | kW | 94 | 101 | ||||
| Displacement | ml/r | 125+125 | 160+125 | ||||
| number of Motors | PC | 2 | 2 | ||||
| Heater power | kW | 41 | 47 | ||||
| Number of temp, control zones | 5+1 | 5+1 | |||||
| Clamping force | kN | 5000 | 6000 | ||||
| Opening stroke | mm | 1000 | 1150 | ||||
| Space between tie bar | Mmxmm | 860x760 | 960x860 | ||||
| Min. mold thickness | mm | 300 | 350 | ||||
| Max. mold thickness | mm | 800 | 920 | ||||
| Ejector stroke | mm | 210 | 210 | ||||
| Ejector force forward | kN | 110 | 113 | ||||
| Number of ejector bar | PC | 1+12 | 1+12 | ||||
| Oil tank capacity | L | 850 | 940 | ||||
| Machine dimensions(LxWxH) | Mxmxm | 87x2.0x2.1 | 9.3x2.1x2.3 | ||||
| Machine weight | Ton | 19 | 23 | ||||
