| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC400H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | High Output 400T Plastic Dirty Clothes Basket Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 400T Injection Molding Machine,High Output Injection Molding Machine,Dirty Clothes Basket Injection Molding Machine |
||
Why Choose OUCO
Strict selection of high-quality parts: We have always insisted on purchasing precision parts from well-known domestic and foreign brands to ensure that the core components of the machine are of stable and reliable quality.
Lean manufacturing process: Adopt advanced production technology and strict quality control system to ensure that products meet high standards in every link.
Strict factory inspection: Each injection molding machine undergoes strict testing before leaving the factory, including no-load test run, load test run, functional test, etc., to ensure excellent product performance and stable operation.
Continuous iterative upgrades: We keep up with market demand and technological development trends, continue to iteratively upgrade our products, and provide customers with the most advanced injection molding machine solutions.
Product Advantages
Rich products: We have injection molding machines of different specifications and models to better meet your needs for producing dirty clothes baskets of different sizes.
Customized service: If you have specific needs for certain parameters of the injection molding machine, such as injection volume, injection pressure, mold opening stroke, etc., we can also customize the machine for you.
Energy saving and environmental protection: Our injection molding machines adopt advanced energy-saving technology, such as servo motor drive, etc., which can effectively reduce energy consumption and reduce production costs.
Ex-factory price advantage: As a direct manufacturer of injection molding machines, all our machines are ex-factory prices, and there will be no third party to make the difference. You can directly enjoy the price discount and get higher cost performance.
Parameters
MODEL | OC400H |
Clamping force (kN) | 4000 |
Space between tie bar (mm*mm) | 720*680 |
Max. mold thickness (mm) | 730 |
Min. mold thickness(mm) | 300 |
Opening stroke (mm) | 800 |
Ejector stroke(mm) | 190 |
Ejector force forward(Kn) | 62 |
Screw diameter(mm) | 80 |
Screw L/D ratio | 21 |
Theoretical injection volume (cm³) | 1759 |
Shot weight (PS) g | 1699 |
Injection pressure(MPa) | 134 |
Injection rate (g/s) | 481 |
Motor power (Kw) | 47.5 |
Heater power (Kw) | 27 |
Machine Weight (T) | 16 |
Machine size L×W×H (m) | 8.2*1.9*2.0 |

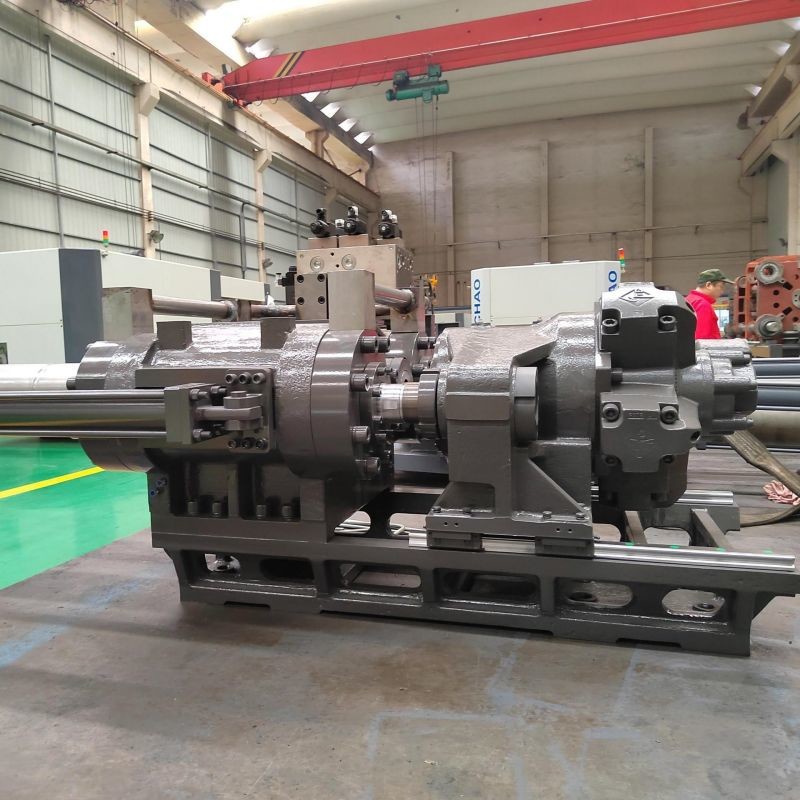

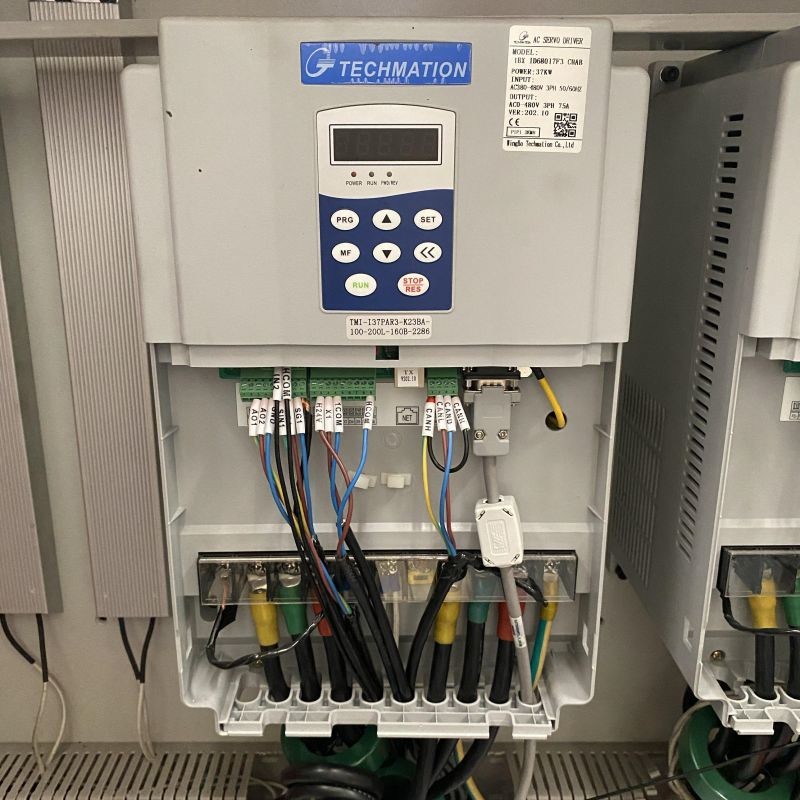

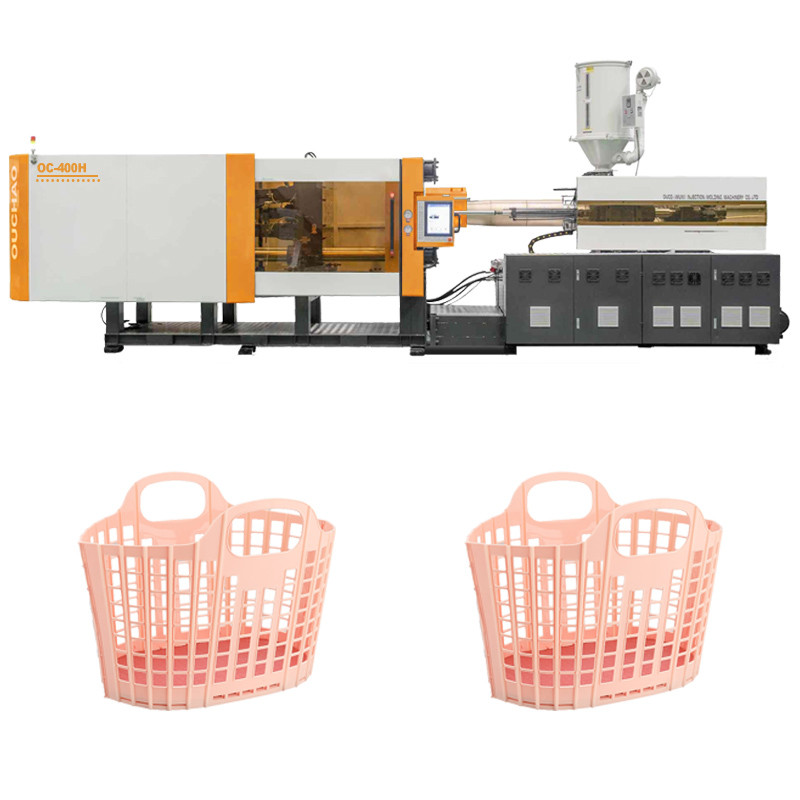

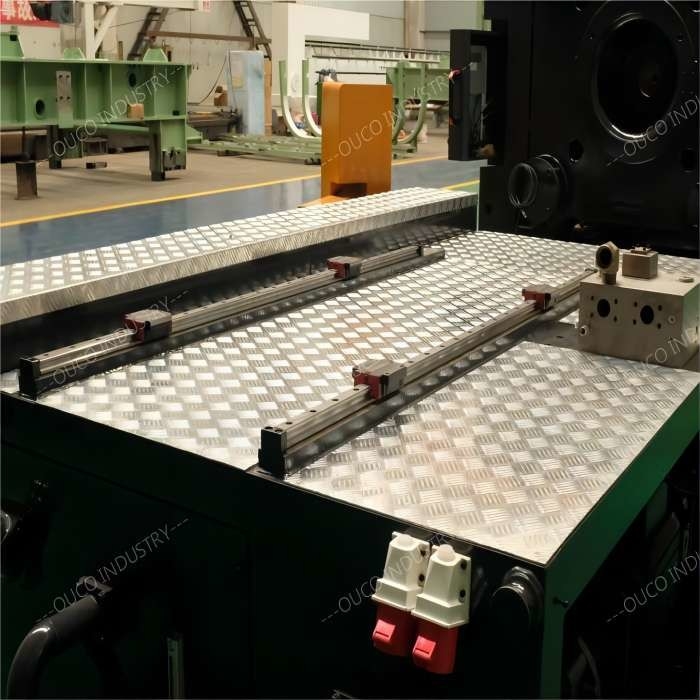

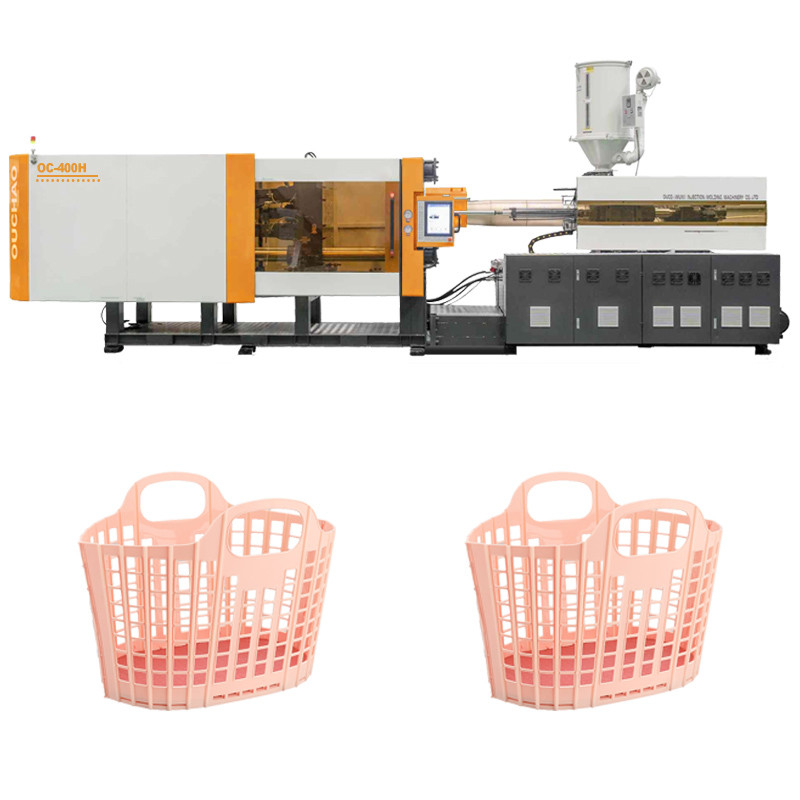

Detail Pictures
