| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-650H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 650T High Performance Manufacturing Fruit Basket Injection Molding Machine Boxes | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 650T Injection Molding Machine,Fruit Boxes Injection Molding Machine,High Performance Injection Molding Machine |
||
OUCO has horizontal and vertical machines ranging from 150 to 2,200 tons, with a focus on precision electric models. We have the ability to provide you with the solutions you need as well as the design, engineering, and production knowledge and processes to make your project a success.OUCO stays abreast of the latest injection molding machine technology to provide our customers with the most efficient and appropriate options.Our servo-motor injection molding machine is undoubtedly one of the best in the industry. Not only do they offer industry-leading solutions, but they also deliver unimaginable performance for your every production need. Whether you're producing small, precision parts or huge industrial products, these machines offer unprecedented precision, speed and energy economy thanks to their advanced servo motor technology. Choosing one of our servo motor injection molding machines means you are choosing an efficient, reliable and widely applicable production tool. We are always committed to helping you easily meet various production challenges through innovative and cutting-edge solutions, embracing the future of injection molding together, and driving your production and company forward to a brighter tomorrow.
Product Advantages
1. Unnecessary differential pressure across the oil circuit is virtually non-existent. In general, oil circuits are subject to overshoots or fluctuations, especially during fast reactions. Precision hydraulics effectively avoids these instabilities, even at high speeds.
2. Stable, non-fluctuating pressure control (especially in the holding pressure section) greatly contributes to improved product quality and yield.
3. High steady-state control technology helps you solve all control problems at once, making even normal production run smoother.
Parameters
| MODEL | OCH-650T | |||||
| Clamping force (kN) | 6500 | |||||
| Space between tie bar (mm*mm) | 960*820 | |||||
| Max. mold thickness (mm) | 900 | |||||
| Min. mold thickness(mm) | 400 | |||||
| Opening stroke (mm) | 1150 | |||||
| Ejector stroke(mm) | 260 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 100 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3730 | |||||
| Shot weight (PS) g | 3602 | |||||
| Injection pressure(MPa) | 137 | |||||
| Injection speed (mm/s) | 93 | |||||
| Injection rate (g/s) | 706 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 950 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (kg) | 24 | |||||
| Machine size L×W×H (mm) | 9000*2100*2300 | |||||

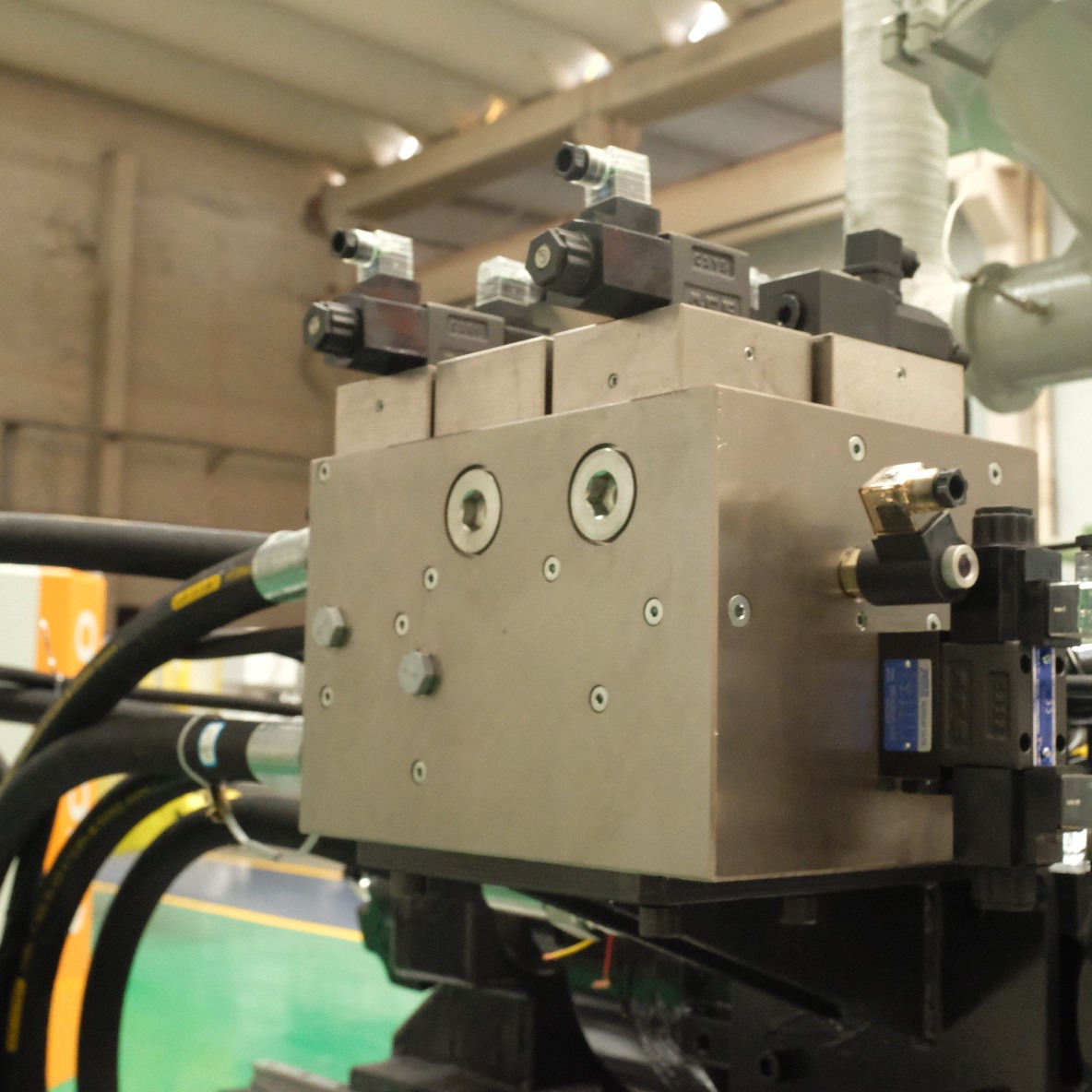

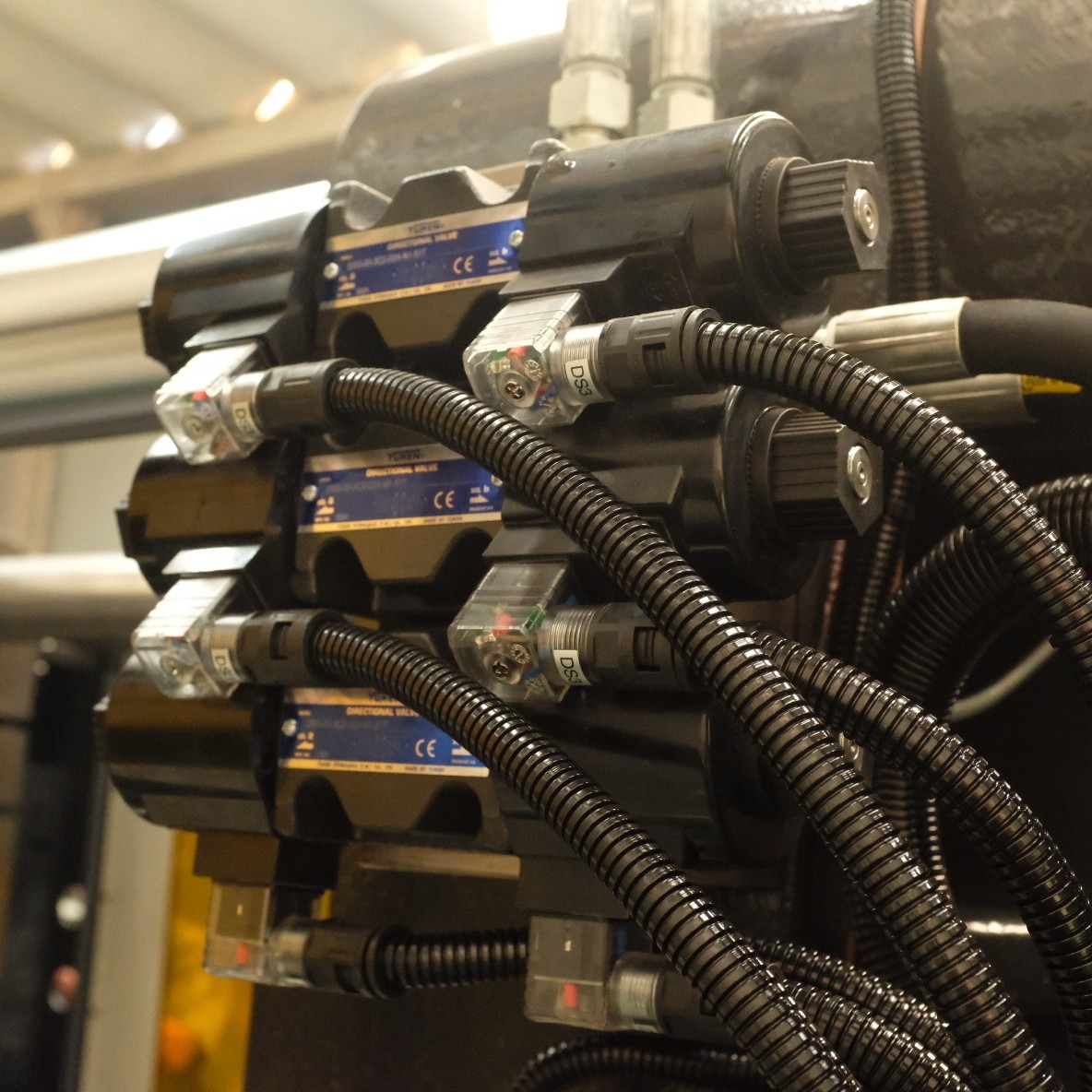

Detail Pictures
