| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-480H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

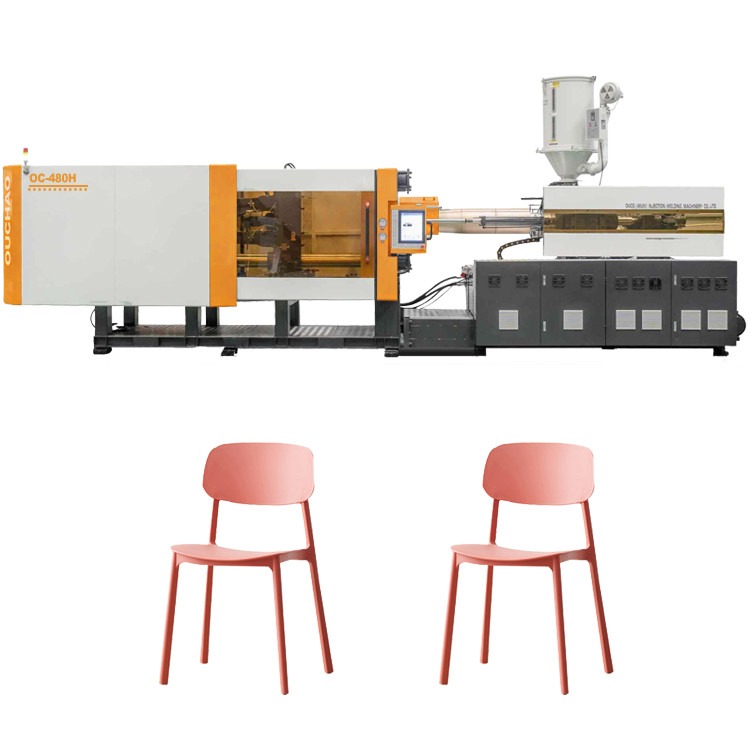

| Product Name: | Horizontal Yellow 480T Sturdy And Durable Support Customization Plastic Basin Injection Molding Machine Making | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Production Plastic Chair Injection Molding Machine,High Efficiency Injection Molding Machine,Injection Molding Machine For Plastic Chair |
||
OUCO is located in the beautiful scenery of Taihu Lake, the geographical position is superior. We are committed to developing and manufacturing high-quality, high-performance injection moulding equipment for automotive parts, medical devices, large pipe fittings, bins, trays and fruit baskets, and other market sectors, customizing high-efficiency, energy-saving and professional production solutions for our customers. We have three series of machines: high speed machines for deep cavity products built to European standards, new universal servo machines, and large two-version machines. Our motto is to be determined to pursue perfection. ouco is always committed to meet the needs of our customers and create greater value for them. We make constant efforts in energy-saving, automation, precision and humanisation of machines to bring the best using experience to our customers.
Product Advantages
1. Energy saving and emission reduction: Adopting servo motor plus meshing gear pump power system to achieve the power output mode of how much energy is needed and how much is given, which greatly saves energy and reduces energy consumption by 20%-80% compared with the traditional power output mode. Direct pressure external curved centre clamping structure, clamping force utilization rate of 100%.
2. Extra large mould opening stroke: leading injection moulding machine industry-wide extra large mould opening stroke, designed for deep cavity users to reduce the cost of purchasing the machine. Template, mould force uniformity, effective protection of the template mould.
3. Power saving and material saving: compared with the traditional injection moulding structure, high precision, less flying edge, power saving, material saving, time saving and manpower saving.

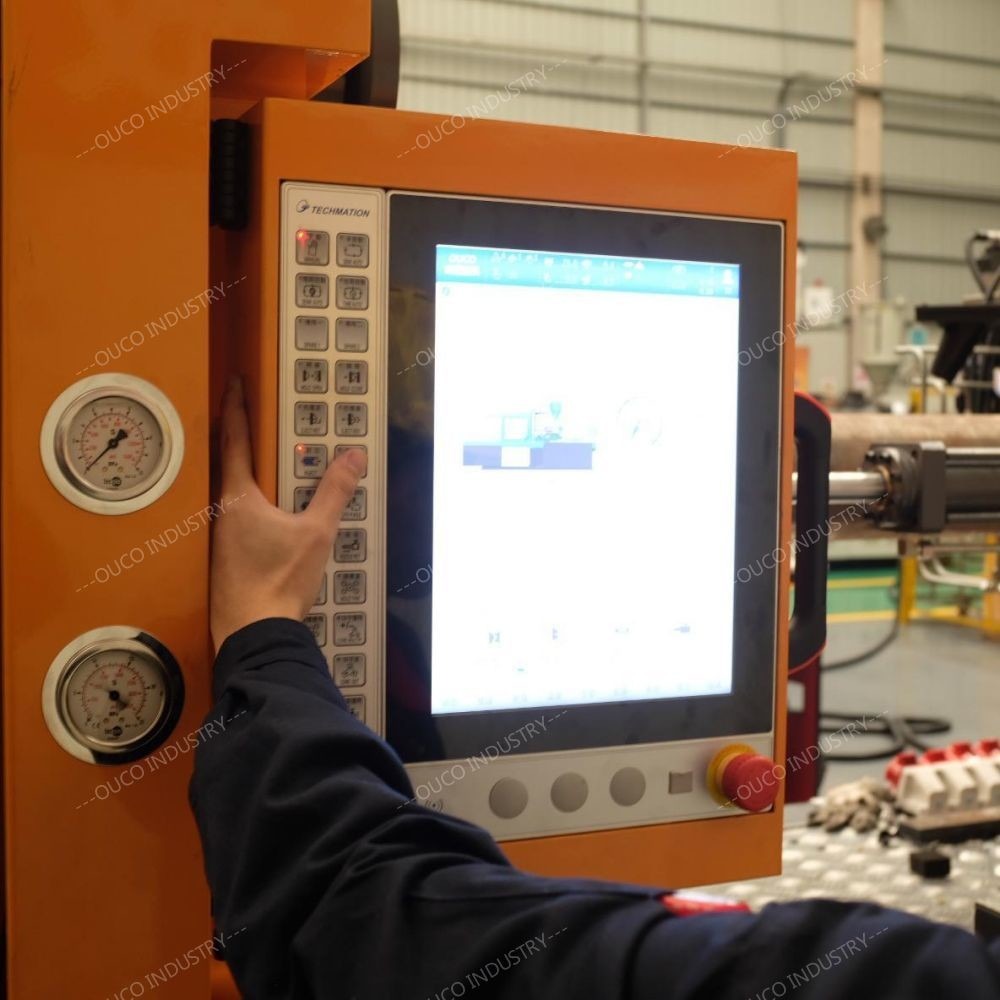

4. Strong adaptability: the use of Taiwan Hongxun computer, fast response speed, high control accuracy, more convenient operation, a variety of languages to choose from, better adapted to the servo system, wide applicability.
Parameters
| MODEL | OCH-480T | |||||
| Clamping force (kN) | 4800 | |||||
| Space between tie bar (mm*mm) | 820*780 | |||||
| Max. mold thickness (mm) | 730 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 900 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 80 | |||||
| Screw diameter(mm) | 85 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2355 | |||||
| Shot weight (PS) g | 2275 | |||||
| Injection pressure(MPa) | 141 | |||||
| Injection speed (mm/s) | 106 | |||||
| Injection rate (g/s) | 583 | |||||
| Motor power (Kw) | 65 | |||||
| Oil tank capacity(L) | 680 | |||||
| Heater power (Kw) | 35 | |||||
| Machine Weight (t) | 18 | |||||
| Machine size L×W×H (m) | 8.6*2.1*2.2 | |||||

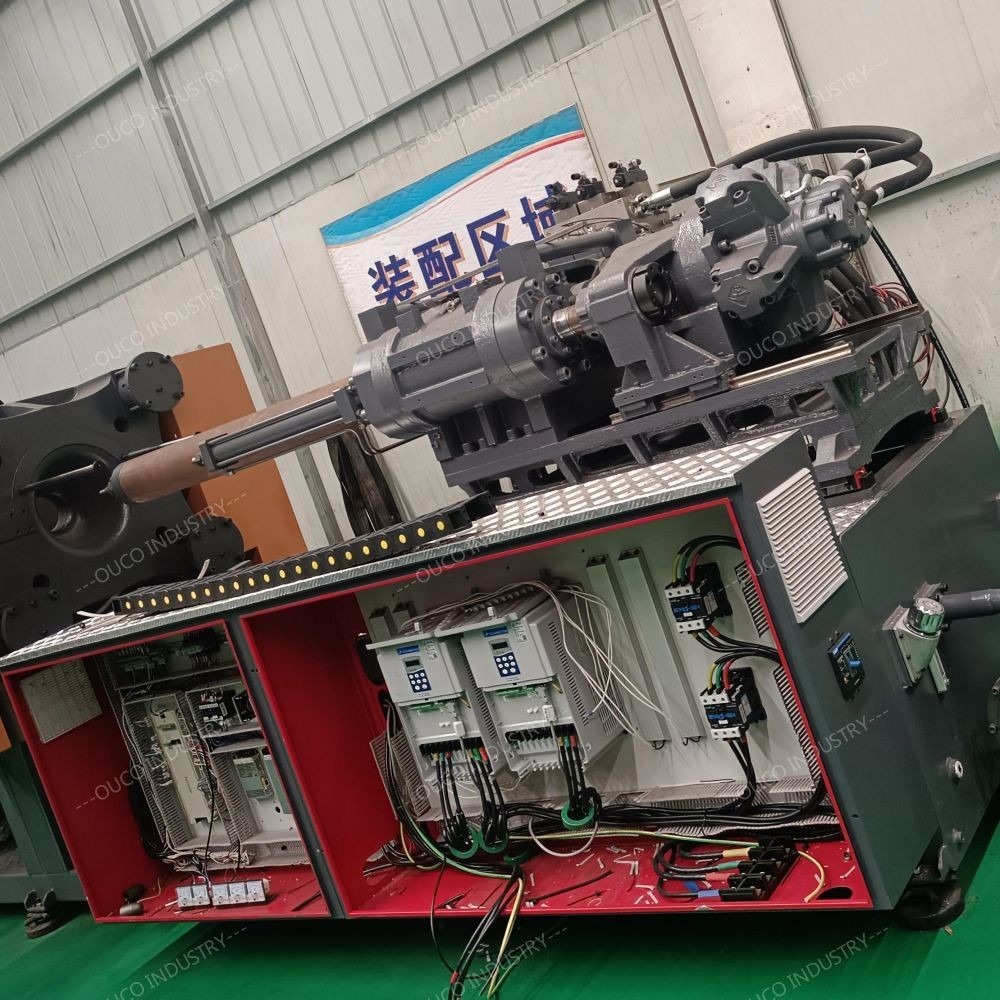

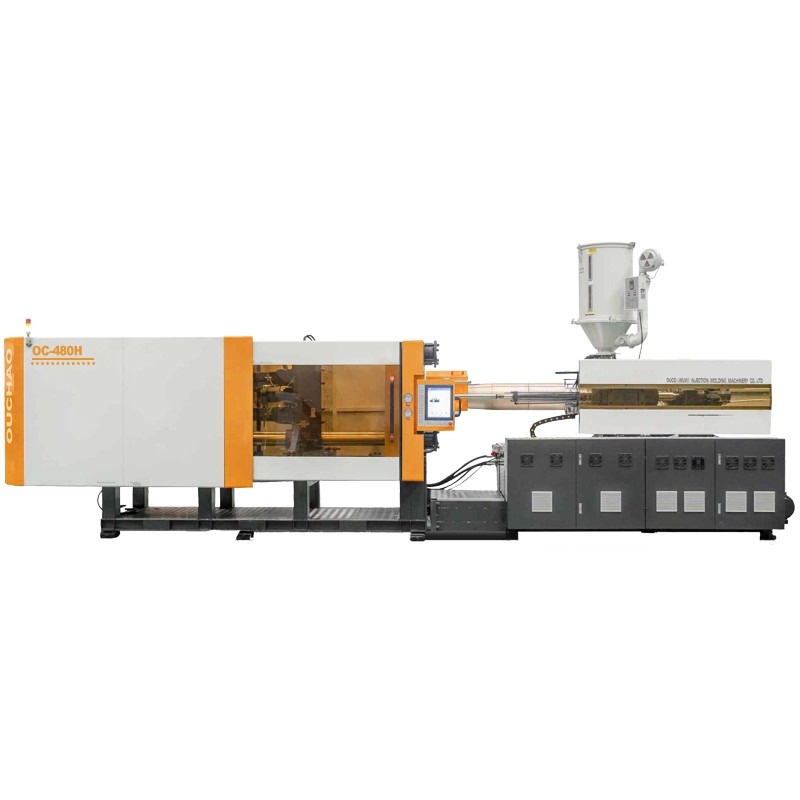

Detail Pictures
