| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC800H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

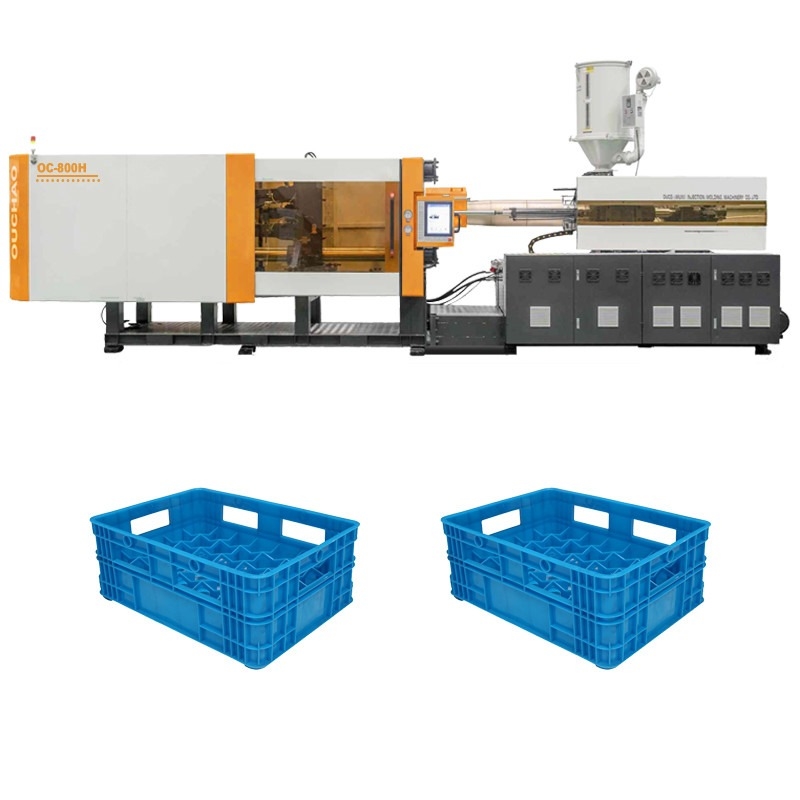

| Product Name: | OUCO 800T Advanced Technology Hydraulic Servo Juice Bottle Plastic Crate Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| Highlight: | Hydraulic Injection Molding Machine,Advanced Injection Molding Machine,800T Injection Molding Machine |
||
Years of experience in the injection molding machine industry have made us well aware that every customer's needs are unique, so we provide a variety of machine models and screw diameters to choose from to meet the production needs of different customers. Innovative injection molding machine design can not only save raw materials, save manpower, and improve production efficiency. After feedback from customers, our machines perform well in production and can also improve the texture and appearance of the required plastic products, which can enhance the competitiveness of your company in the same industry. OUCO injection molding machines are reliable, durable and easy to maintain. They can better adapt to the needs of automated production and flexibly respond to customers' special applications. It is not only a high-performance production tool, but also your competitive weapon. With it, you will have a strong competitive advantage and stay one step ahead in the industry.
Product Advantages

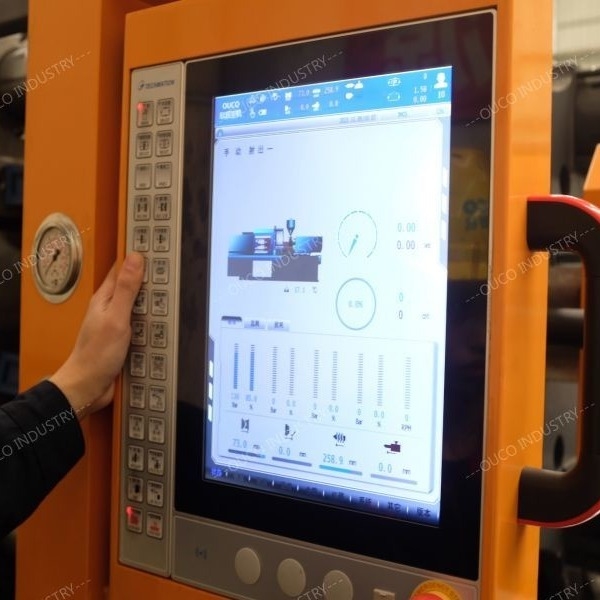

OC-800H has an industry-leading ultra-large mold opening stroke and is designed to reduce purchase costs for customers who produce deep-cavity plastic products. The increased injection volume and space between tie bars can accommodate larger and deeper molds and produce larger plastic products. The whole machine is driven by a servo motor, which has the characteristics of high efficiency and energy saving. They can automatically adjust power output according to actual load demand, thereby reducing unnecessary energy consumption and lowering production costs. The humanized control system has powerful functions, fast speed, precise control, simple operation, and the program can meet various process needs. The injection position is controlled by an electronic ruler and adopts European imported brands, which ensures the accuracy and consistency of the injection molding process, thus improving product quality and production efficiency. This series of advantages comprehensively reflects the high efficiency and excellent quality of OC-800H. Choosing OC-800H will provide strong support for your production.
Parameters
| MODEL | OC800H | |||||
| Clamping force (kN) | 8000 | |||||
| Space between tie bar (mm*mm) | 1060*860 | |||||
| Max. mold thickness (mm) | 1000 | |||||
| Min. mold thickness(mm) | 450 | |||||
| Opening stroke (mm) | 1300 | |||||
| Ejector stroke(mm) | 280 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 100 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3927 | |||||
| Shot weight (PS) g | 3729 | |||||
| Injection pressure(MPa) | 151 | |||||
| Injection speed (mm/s) | 89 | |||||
| Injection rate (g/s) | 660 | |||||
| Pump power (Kw) | 83 | |||||
| Oil tank capacity(L) | 1020 | |||||
| Heater power (Kw) | 52 | |||||
| Machine Weight (T) | 27 | |||||
| Machine size L×W×H (m) | 10*2.2*2.4 | |||||
Detail Pictures
