| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-220UV |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

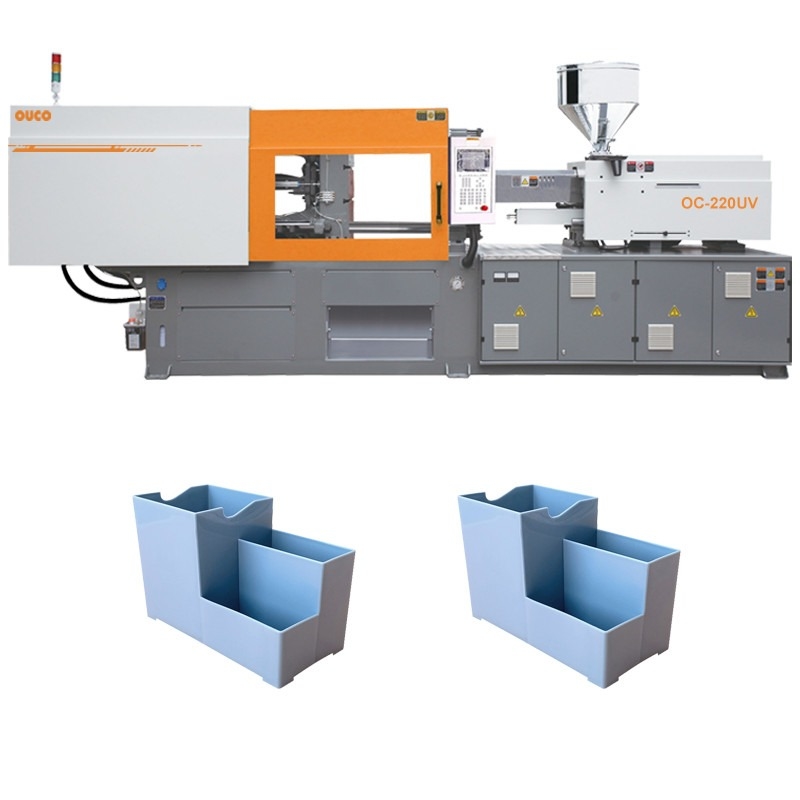

| Product Name: | OUCO 220T New Design Hydraulic Servo Office Desktop Plastic Pen Holder Storage Box Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Hydraulic Injection Molding Machine,220T hydraulic injection molding machine,Pen Holder hydraulic injection molding machine |
||
In OUCO, we focus on every production process, from strict screening of raw materials and accessories to precise polishing of production processes and then to strict testing of finished products, striving for excellence. We also have a professional after-sales service team as a solid backing, we can provide timely and thoughtful technical support and solutions for users. Whether it is equipment installation and debugging, or daily maintenance, we can receive their professional guidance and assistance. We firmly believe that OUCO will provide strong support for your plastic product production business and the sustainable development of your enterprise.
Product Advantages
OC-220UV injection molding machine offers several key advantages to ensure a more efficient, reliable and safe production process. First of all, the use of corrosion-resistant screw barrel ensures long-term stable operation of the equipment and extends its service life. Secondly, the injection position electronic ruler control system ensures the accuracy and consistency of the injection molding process, thus improving product quality and production efficiency. In addition, our injection molding machines also have the function of preventing cold start of the screw, which effectively avoids the risk of damage during startup and protects the normal operation of the equipment.
| MODEL | OC-220UV | |||||
| Clamping force (kN) | 2200 | |||||
| Space between tie bar (mm*mm) | 510*510 | |||||
| Max. mold thickness (mm) | 550 | |||||
| Min. mold thickness(mm) | 200 | |||||
| Opening stroke (mm) | 480 | |||||
| Ejector stroke(mm) | 150 | |||||
| Ejector force forward(Kn) | 67 | |||||
| Screw diameter(mm) | 55 | |||||
| Screw L/D ratio | 18 | |||||
| Theoretical injection volume (cm3) | 569 | |||||
| Shot weight (PS) g | 520 | |||||
| Injection pressure(MPa) | 145 | |||||
| Screw speed (rpm) | 0-200 | |||||
| Dry-cycle time (sec) | 4.5 | |||||
| Motor power (Kw) | 23 | |||||
| Oil tank capacity(L) | 310 | |||||
| Heater power (Kw) | 13.1 | |||||
| Machine Weight (Ton) | 6.3 | |||||
| Machine size L×W×H (m) | 5.4*1.3*2.1 | |||||

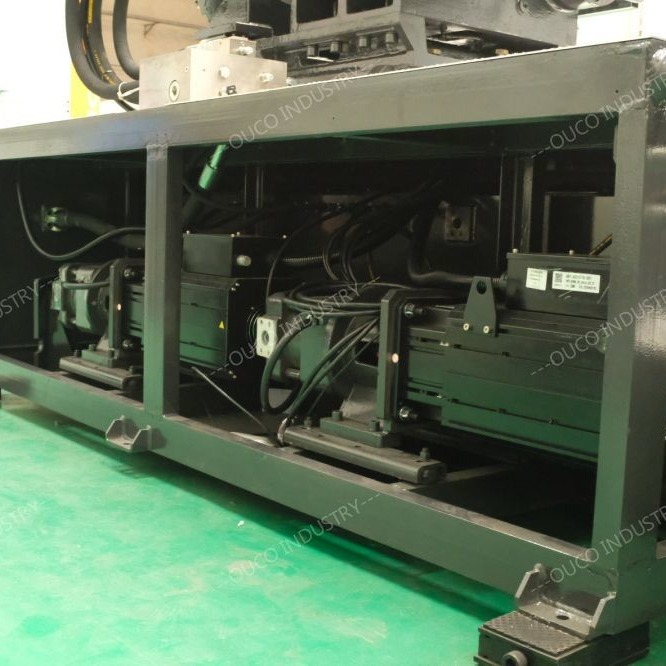

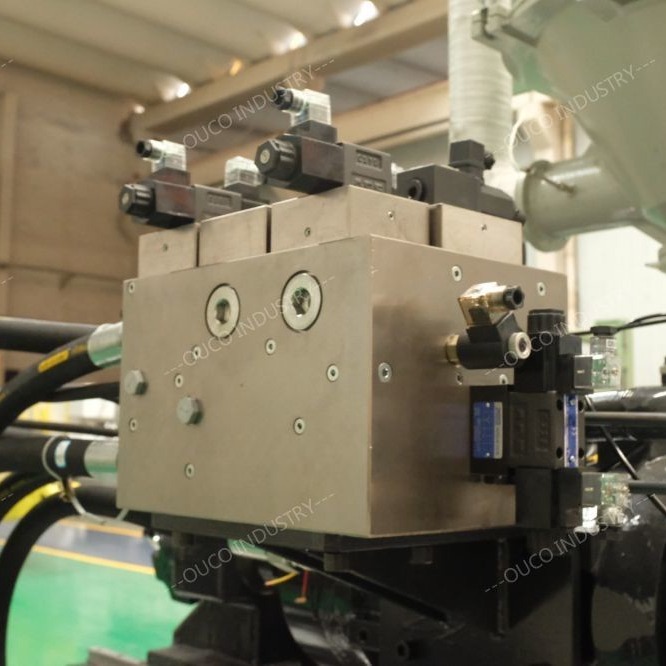

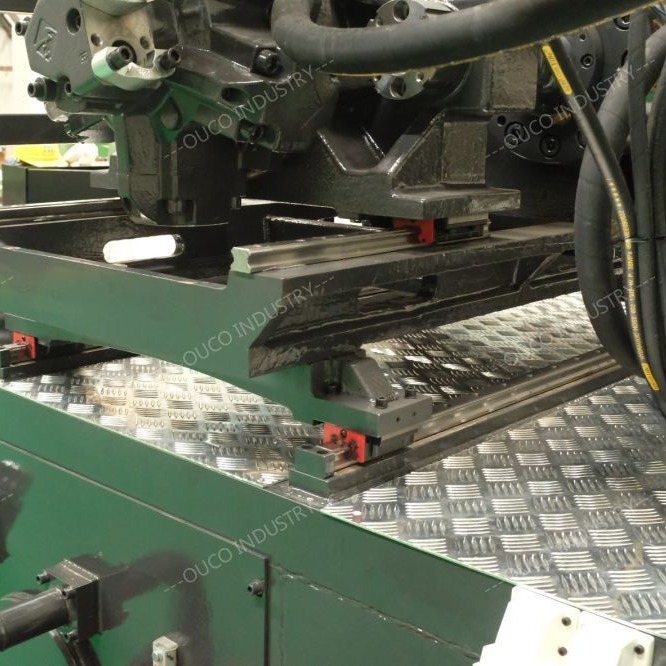

Detail Pictures
