| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-400/500/600T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |
| Product Name: | 2200 Ton Industrial Injection Molding Machine | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |

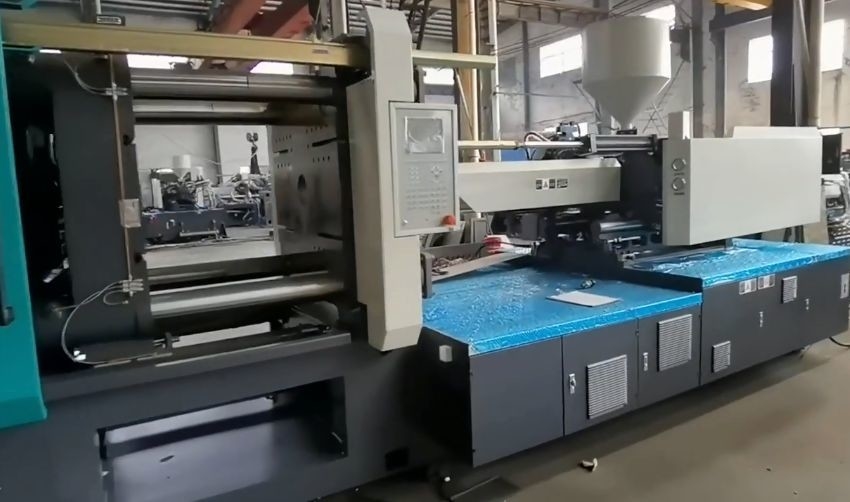

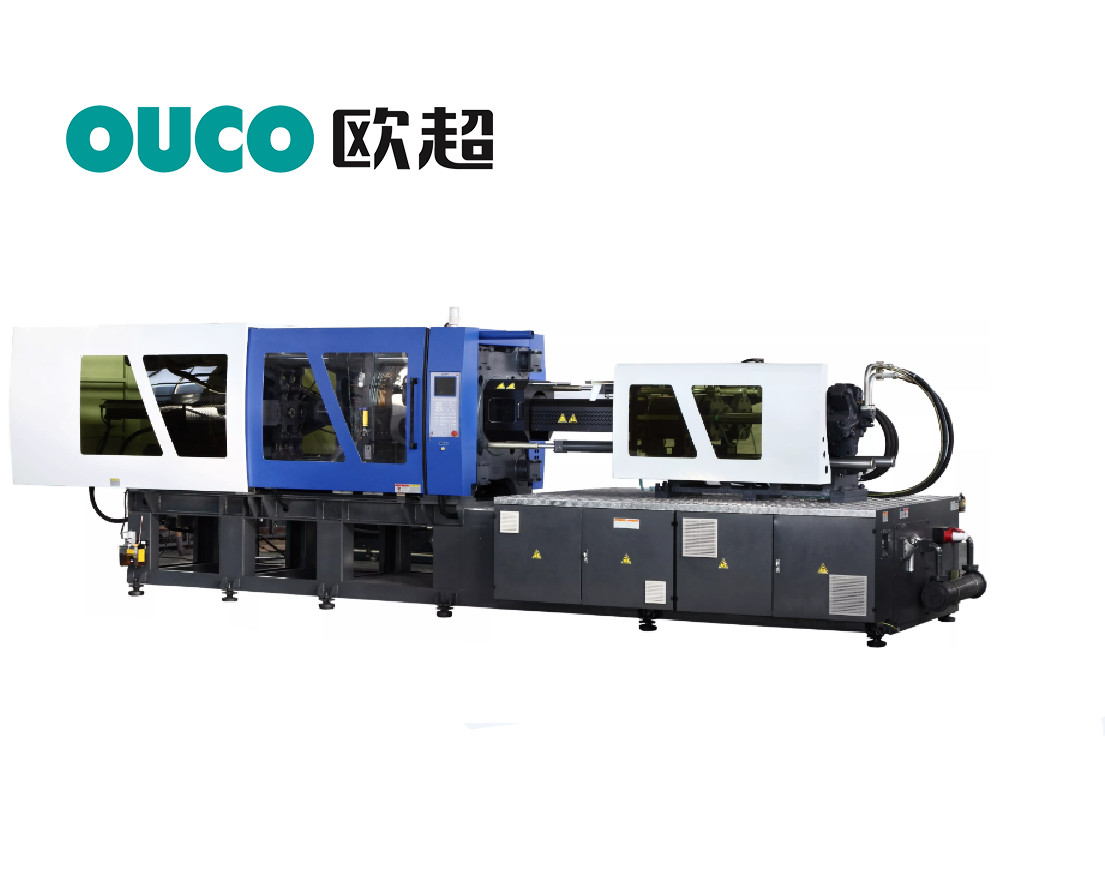

OUCO Injection Molding Machine is equipment with the two platen clamping system. 2200 ton Clamping force, the clamping speed is fast and improves the production cycle. The good quality of material also ensures the mold platen more durable.
Four cylinder direct clamping structure ensures the high pressure stability. Clamping balance and precise of clamping force which improves the lifetime of the mold.
Product Parameter
| Model | 900T | 1000T | 1400T | 1850T | 2200T | |||||||||||
| Screw Model | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | |
| Screw di ameter | mm | 90 | 100 | 110 | 100 | 100 | 120 | 110 | 120 | 130 | 125 | 135 | 145 | 135 | 145 | 155 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection capacity | cm3 | 3147 | 3886 | 4702 | 4329 | 4329 | 6104 | 5177 | 6161 | 7230 | 8034 | 9371 | 10811 | 10015 | 11553 | 13202 |
| Shot weight (PS) | g | 2896 | 3575 | 4326 | 3900 | 3900 | 5616 | 4763 | 5668 | 6652 | 7391 | 8621 | 9946 | 9213 | 10629 | 12146 |
| Injection rate(Ps) | g/S | 975 | 1204 | 1457 | 920 | 920 | 1325 | 1651 | 1384 | 1628 | 1275 | 1488 | 1717 | 1647 | 1932 | 2208 |
| Injection pressure | MPa | 214 | 173 | 143 | 204 | 204 | 142 | 197 | 165 | 141 | 197 | 169 | 146 | 187 | 162 | 142 |
| Injection stroke | mm | 495 | 540 | 545 | 655 | 700 | ||||||||||
| Max. injection speed | mm/s | 146 | 137 | 130 | 130 | 124 | ||||||||||
| Screw speed | r/min | 0-180 | 0-180 | 0-180 | 0-160 | 0-150 | ||||||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | 16 | 16 | ||||||||||
| Pump Motor(Min-Max) | kW | 141 | 151 | 178 | 210 | 235 | ||||||||||
| Displacement | ml/r | 125+125+125 | 160+125+125 | 160+160+160 | 160+160+125 + 125 | 125+125+125+125+125 | ||||||||||
| number of Motors | PC | 3 | 3 | 3 | 4 | 5 | ||||||||||
| Heater power | kW | 59 | 61 | 68 | 89 | 115 | ||||||||||
| Number of temp, control zones | 5+1 | 6+1 | 7+1 | 8+1 | ||||||||||||
| Clamping force | kN | 9000 | 10000 | 14000 | 18500 | 22000 | ||||||||||
| Opening stroke | mm | 1500 | 1700 | 1900 | 2300 | 2500 | ||||||||||
| Space between tie bar | mmxmm | 1120x1030 | 1210x1060 | 1460x1320 | 1620x1460 | 1760x1560 | ||||||||||
| Min. mold thickness | mm | 450 | 500 | 700 | 750 | 750 | ||||||||||
| Max. mold thickness | mm | 1150 | 1200 | 1400 | 1600 | 1750 | ||||||||||
| Ejector stroke | mm | 270 | 300 | 350 | 400 | 450 | ||||||||||
| Ejector force forward | kN | 152 | 196 | 251 | 332 | 425 | ||||||||||
| Number of ejector bar | PC | 1+16 | 1+16 | 1+28 | 1+28 | 1+28 | ||||||||||
| Oil tank capacity | L | 1190 | 1300 | 1530 | 2210 | 2550 | ||||||||||
| Machine dimensions(LxWxH) | mxmxm | 10.2x2.2x2.5 | 10.7x2.4x2.8 | 14.8x3.6x33 | 15x3.2x3.5 | 18.5x3.6x3.7 | ||||||||||
| Machine weight | Ton | 39 | 44 | 70 | 100 | 140 | ||||||||||
Our lubricating pipes are equipped with copper pipes, which are resistant to wear and increase service time
Ouco's injection machine is Screw-type
Our factory is equipped with finishing equipment, castings are processed by ourselves, which reduces product cost.
The hydraulic system is provided by well-known manufacturers in China and is designed and manufactured with high-speedsuper large and special oil circuit.It adopts multi-channel logic control with large flow, low noise and stable performance.The machines with a capacity of more than 450 tons provide the synchronous function of ejector pin while opening the moldso as to shorten the forming cycle of the product.
