| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-H520T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

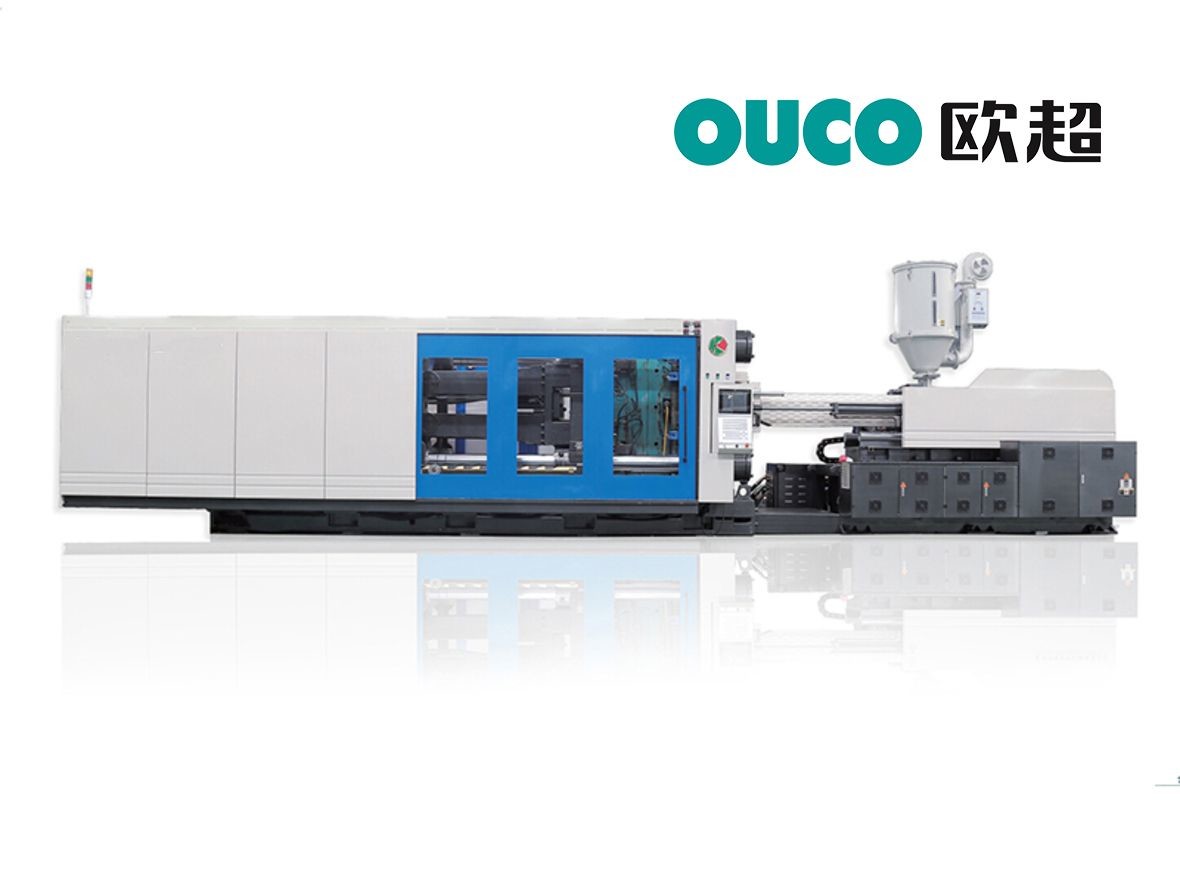

| Product Name: | 520 T High-speed Plastic Bucket Injection Molding Machine Cost Save | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| Highlight: | 520 T Plastic Injection Moulding Machines,High speed Plastic Injection Moulding Machines,SGS discount injection moulding machine |
||
Product advantages

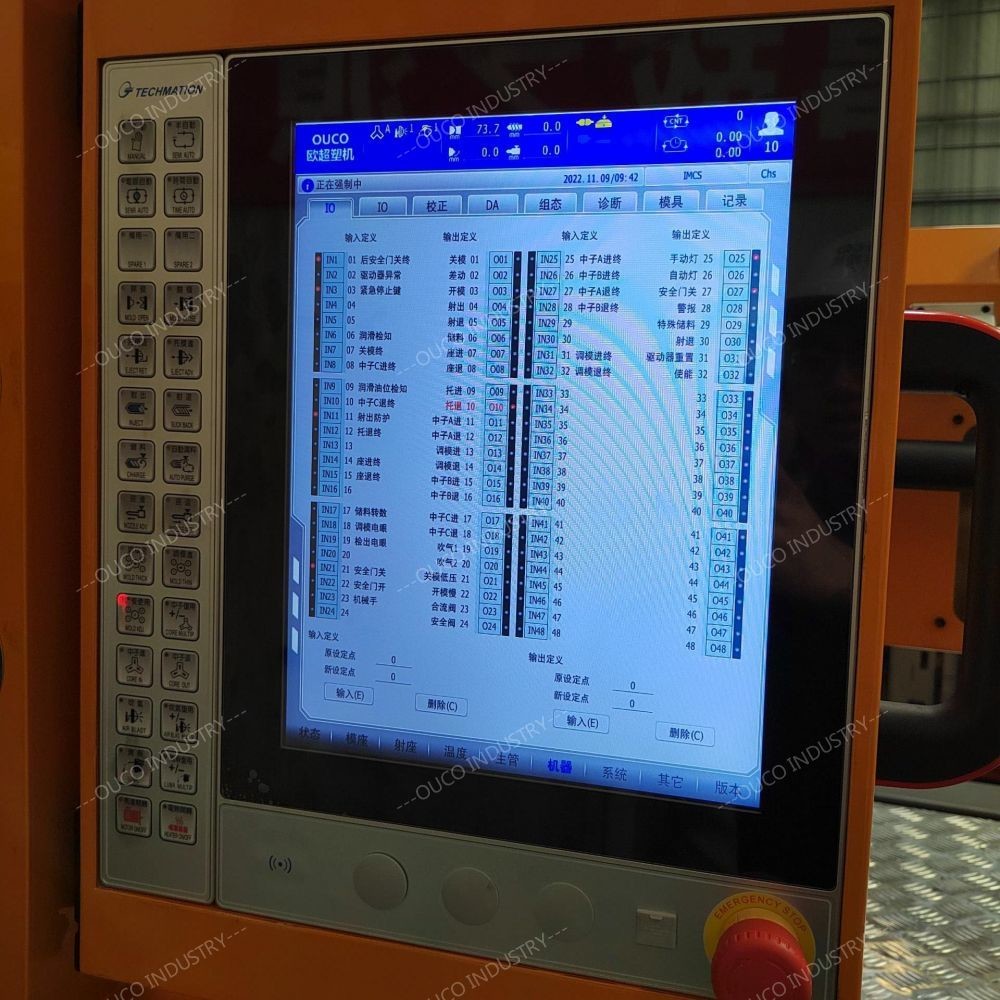

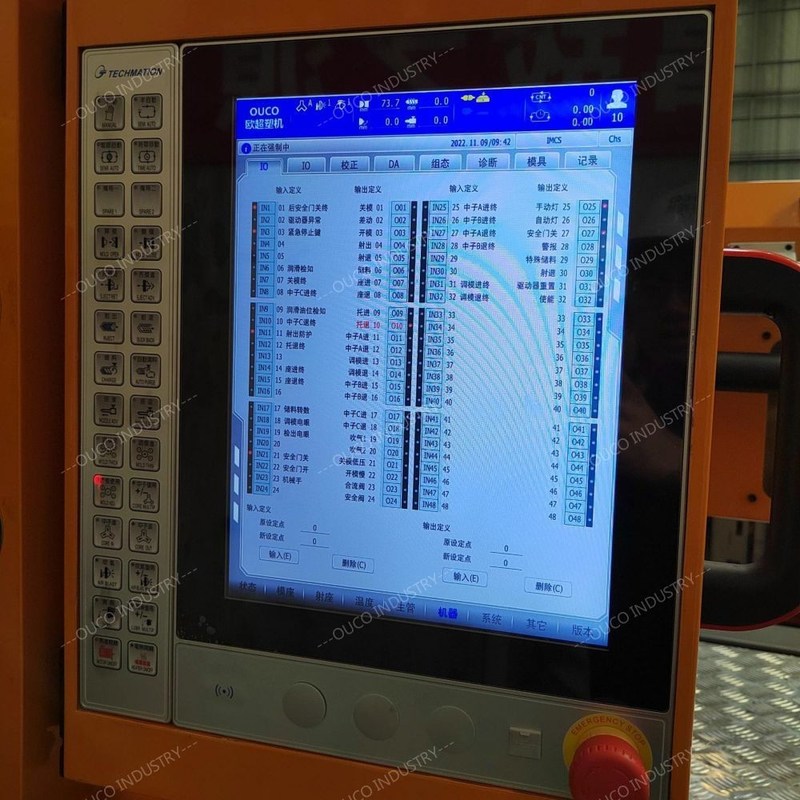

1. Using can bus and EtherCAT bus communication, so that the computer system is completely digital control.
2. Special control module is used for temperature control. The precision can reach 1 degree.
3. With power monitoring function, it can monitor the current energy consumption in the production process.
4. Special single-cylinder structure greatly reduces the amount of oil return in the high-speed injection process. At the same time reduce the return oil pressure, thereby increasing the machine's injection acceleration.

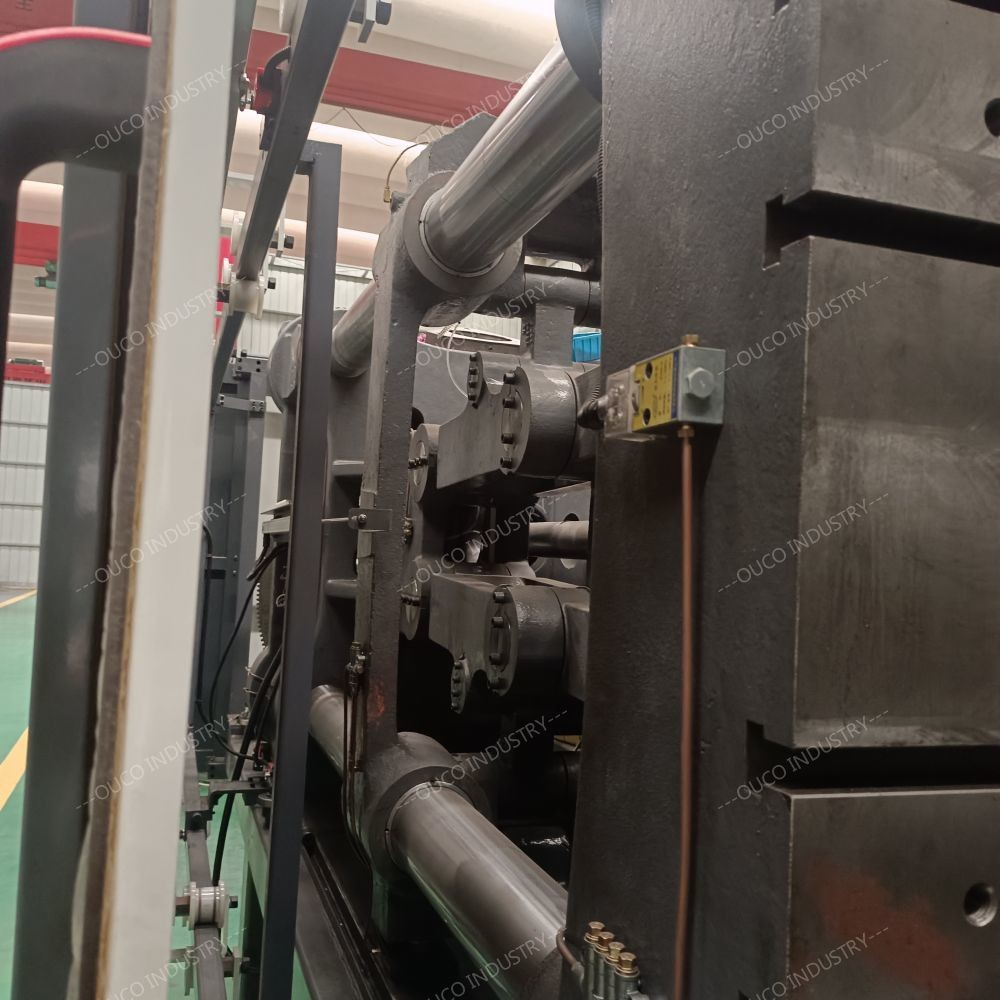

5. When using graphite steel bushing and thin oil lubrication, the bent elbow connecting rod and guide rod have better bearing resistance and wear resistance. This machine has a longer service life.
6. Controlled by proportional directional valve, it can accelerate movement quickly. When running at high speed, it can control the opening position stably and precisely.
7. The hydraulic system is controlled by double servo drive. It has the advantages of high efficiency; energy saving and low noise. At the same time, it can realize the synchronous function of mold opening and loading.
Product Parameters
| TECHNICAL PARAMETER TABLE | A | B | |
| Screw diameter | mm | 60 | 65 |
| Screw L/D ratio | L/D | 24 | 22 |
| Injection capacity in theory | cm3 | 692 | 846 |
| Injection weight (Ps) | g | 630 | 770 |
| Injection pressure | MPa | 148 | 126 |
| Injection speed | mm/s | 380 | |
| Plasticizing capacity | g/s | 97 | 110 |
| Screw speed | r/min | 400 | |
| Clamping force | kN | 5200 | |
| Opening stroke | mm | 780 | |
| Max mold height | mm | 800 | |
| Min mould height | mm | 320 | |
| Space between tie-bar | mm | 820x770 | |
| Ejector force | kN | 181 | |
| Ejector stroke | mm | 200 | |
| Ejector No | n | 13 | |
| Pump pressure | MPa | 17.5 | |
| Motor power | KW | 45+45 | |
| Heating power | KW | 28 | |
| Machine dimension | m | 7.85x2.00x2.40 | |
| Machine weight | t | 17.5 | |
| Oil tank capacity | L | 1000 | |

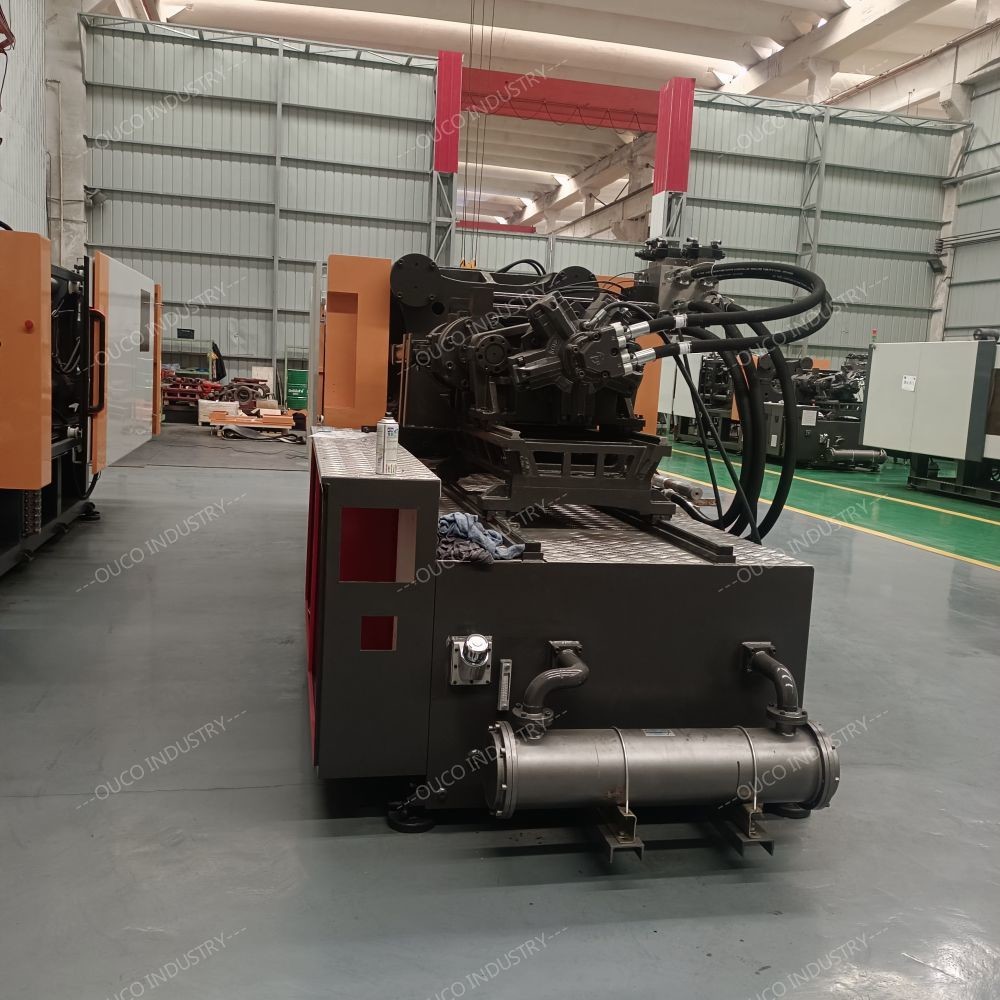

Detail Pictures
