| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | CWI-1850s |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 40 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets/year |

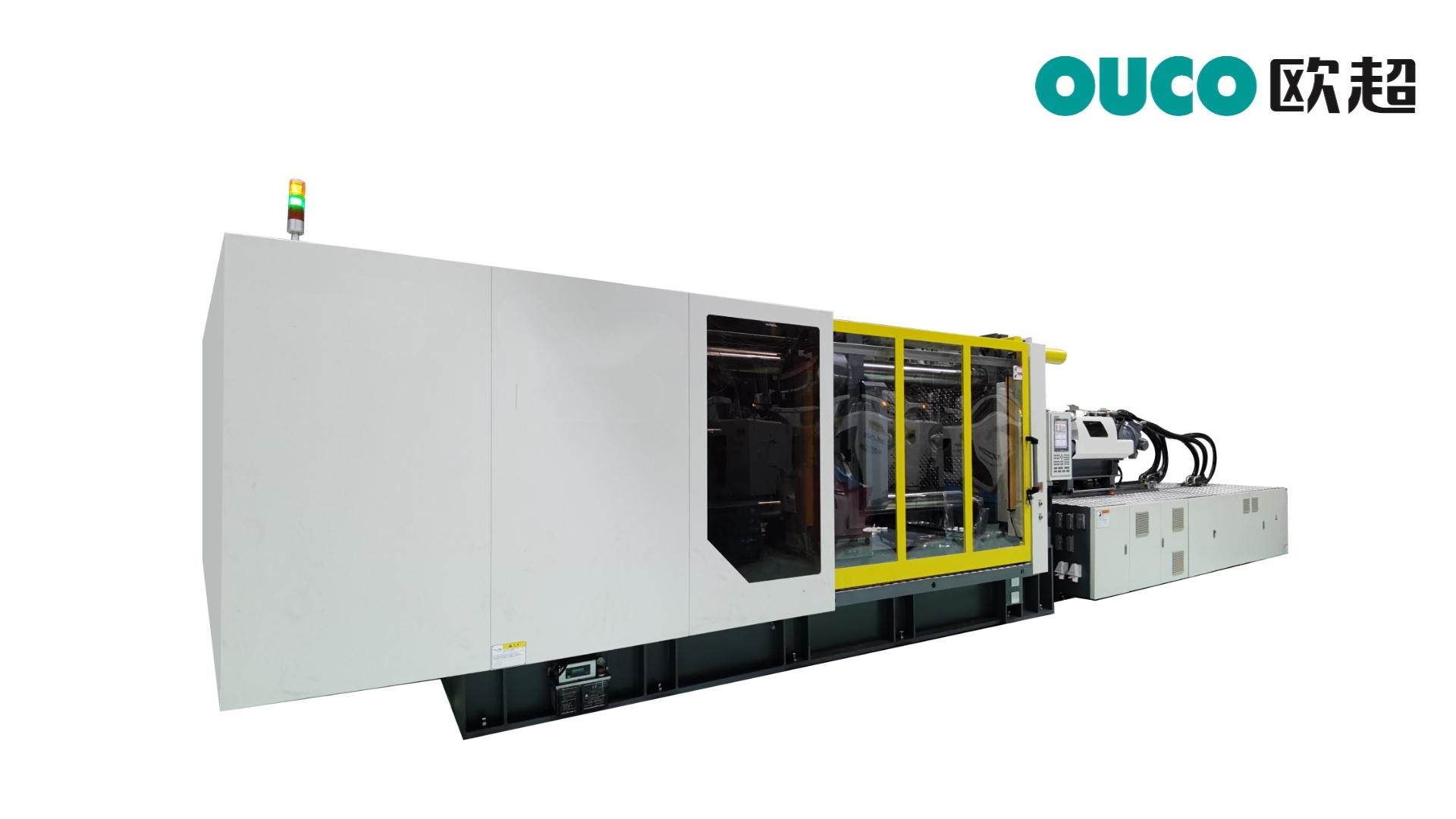

Advantage of OUCO Injection Molding Machine
Ouco Injection Molding Machine is equipment with the two platen clampina system. the clampina speed is fast and improves the productior cycle. The good quality of material also ensures the mold platen more durable

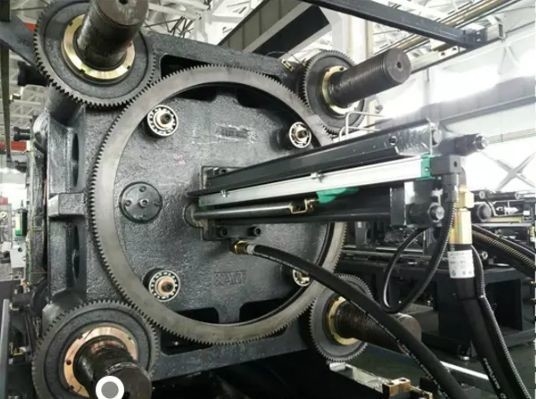

Four cylinder direct clamping structure ensures the hiah pressure stabillity. clamping balance and precise of clamping force which improves the lifetime of the mold.
| Model | 900T | 1000T | 1400T | 1850T | 2200T | |||||||||||
| Screw Model | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | |
| Screw di ameter | mm | 90 | 100 | 110 | 100 | 100 | 120 | 110 | 120 | 130 | 125 | 135 | 145 | 135 | 145 | 155 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection capacity | cm3 | 3147 | 3886 | 4702 | 4329 | 4329 | 6104 | 5177 | 6161 | 7230 | 8034 | 9371 | 10811 | 10015 | 11553 | 13202 |
| Shot weight (PS) | g | 2896 | 3575 | 4326 | 3900 | 3900 | 5616 | 4763 | 5668 | 6652 | 7391 | 8621 | 9946 | 9213 | 10629 | 12146 |
| Injection rate(Ps) | g/S | 975 | 1204 | 1457 | 920 | 920 | 1325 | 1651 | 1384 | 1628 | 1275 | 1488 | 1717 | 1647 | 1932 | 2208 |
| Injection pressure | MPa | 214 | 173 | 143 | 204 | 204 | 142 | 197 | 165 | 141 | 197 | 169 | 146 | 187 | 162 | 142 |
| Injection stroke | mm | 495 | 540 | 545 | 655 | 700 | ||||||||||
| Max. injection speed | mm/s | 146 | 137 | 130 | 130 | 124 | ||||||||||
| Screw speed | r/min | 0-180 | 0-180 | 0-180 | 0-160 | 0-150 | ||||||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | 16 | 16 | ||||||||||
| Pump Motor(Min-Max) | kW | 141 | 151 | 178 | 210 | 235 | ||||||||||
| Displacement | ml/r | 125+125+125 | 160+125+125 | 160+160+160 | 160+160+125 + 125 | 125+125+125+125+125 | ||||||||||
| number of Motors | PC | 3 | 3 | 3 | 4 | 5 | ||||||||||
| Heater power | kW | 59 | 61 | 68 | 89 | 115 | ||||||||||
| Number of temp, control zones | 5+1 | 6+1 | 7+1 | 8+1 | ||||||||||||
| Clamping force | kN | 9000 | 10000 | 14000 | 18500 | 22000 | ||||||||||
| Opening stroke | mm | 1500 | 1700 | 1900 | 2300 | 2500 | ||||||||||
| Space between tie bar | mmxmm | 1120x1030 | 1210x1060 | 1460x1320 | 1620x1460 | 1760x1560 | ||||||||||
| Min. mold thickness | mm | 450 | 500 | 700 | 750 | 750 | ||||||||||
| Max. mold thickness | mm | 1150 | 1200 | 1400 | 1600 | 1750 | ||||||||||
| Ejector stroke | mm | 270 | 300 | 350 | 400 | 450 | ||||||||||
| Ejector force forward | kN | 152 | 196 | 251 | 332 | 425 | ||||||||||
| Number of ejector bar | PC | 1+16 | 1+16 | 1+28 | 1+28 | 1+28 | ||||||||||
| Oil tank capacity | L | 1190 | 1300 | 1530 | 2210 | 2550 | ||||||||||
| Machine dimensions(LxWxH) | mxmxm | 10.2x2.2x2.5 | 10.7x2.4x2.8 | 14.8x3.6x33 | 15x3.2x3.5 | 18.5x3.6x3.7 | ||||||||||
| Machine weight | Ton | 39 | 44 | 70 | 100 | 140 | ||||||||||
Our lubricating pipes are equipped with copper pipes, which are resistant to wear and increase service time

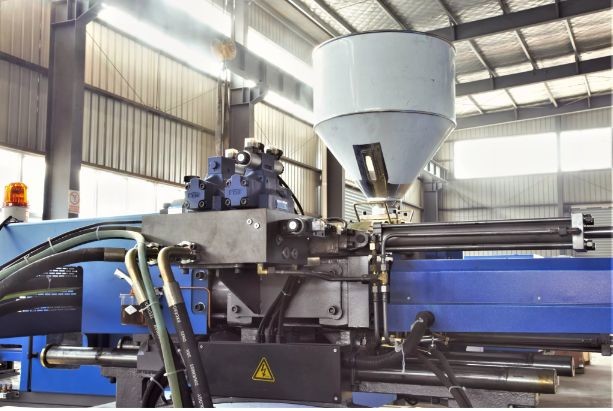

Ouco's injection machine is Screw-type
Our factory is equipped with finishing equipment, castings are processed by ourselves, which reduces product cost.
