| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-HS-450T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | Deep Cavity Injection Moulding Machine For The Manufacture Of Waste Bins | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| Highlight: | Deep Cavity plastic bucket moulding machine,Waste Bins plastic bucket moulding machine,350 ton injection molding machine |
||
OUCO deep cavity injection molding machine has a very small footprint and a better energy-saving effect. In the industry, our OUCO-HS-450T has a 10% to 20% smaller footprint and the lighter 4000Kn Clamping force provides the highest part productivity, part quality and operational profitability.
Product Advantages
Precision Control Technology For All Applications

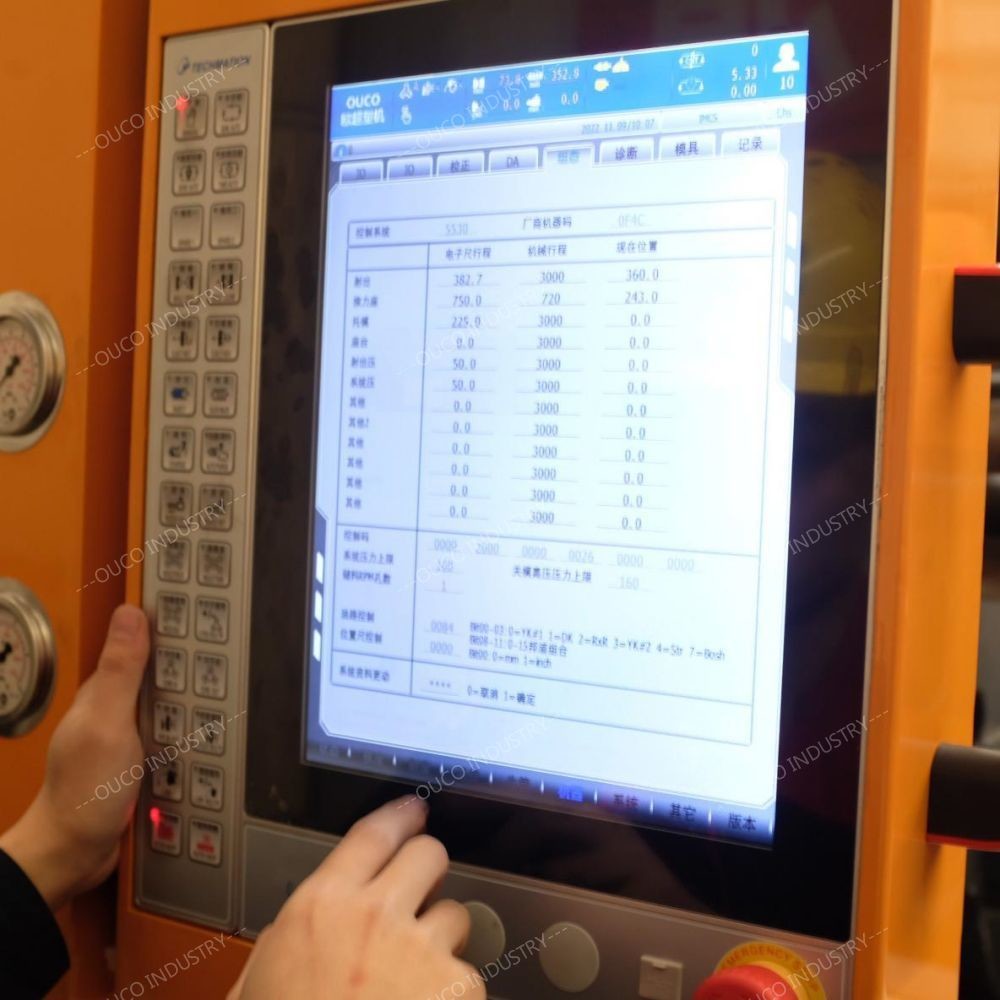

intuitive Operation Touch Screens
Exclusive and Standard with Larger Tonnage All-Electric Machines
Full Stroke Mold Protection
Provide you with a variety of clamp and injection devices
Parameters
| MODEL | 300T | 400T | |||||
| Spiral Specification | A | B | C | A | B | C | |
| Screw di ameter | mm | 50 | 60 | 65 | 65 | 75 | 80 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection capacity | cm3 | 638 | 918 | 1078 | 1C75 | 1431 | 1628 |
| Shot weight (PS) | g | 593 | 853 | 1002 | 1C11 | 1345 | 1530 |
| injection rate(Ps) | g/S | 330 | 475 | 558 | 426 | 568 | 646 |
| Injection pressure | MPa | 286 | 198 | 169 | 242 | 182 | 160 |
| Injection stroke | mm | 325 | 360 | ||||
| Max. injection speed | mm/s | 178 | 156 | ||||
| Screw speed | r/min | 0-200 | 0-200 | ||||
| Sys. Pressure | MPa | 16 | 16 | ||||
| Pump Motor(Min-Max) | kW | 63 | 75 | ||||
| Displacement | ml/r | 163 | 100+100 | ||||
| number of Motors | PC | 1 | 2 | ||||
| Heater power | kW | 27 | 35 | ||||
| Number of temp, control zones | 5+1 | 5+1 | |||||
| Clamping force | kN | 3000 | 4000 | ||||
| Opening stroke | mm | 800 | 900 | ||||
| Space between tie bar | Maxim | 680x680 | 760x660 | ||||
| Min. mold thickness | mm | 210 | 300 | ||||
| Max. mold thickness | mm | 680 | 730 | ||||
| Ejector stroke | mm | 190 | 190 | ||||
| Ejector force forward | kN | 62 | 80 | ||||
| Number of ejector bar | PC | 1+12 | 1+12 | ||||
| Oil tank capacity | L | 510 | 680 | ||||
| Machine dimensions(LxWxH) | Mxmxm | 7.7x1.8x1.8 | 8.2x1.9x1.9 | ||||
| Machine weight | Ton | 10.5 | 15 | ||||

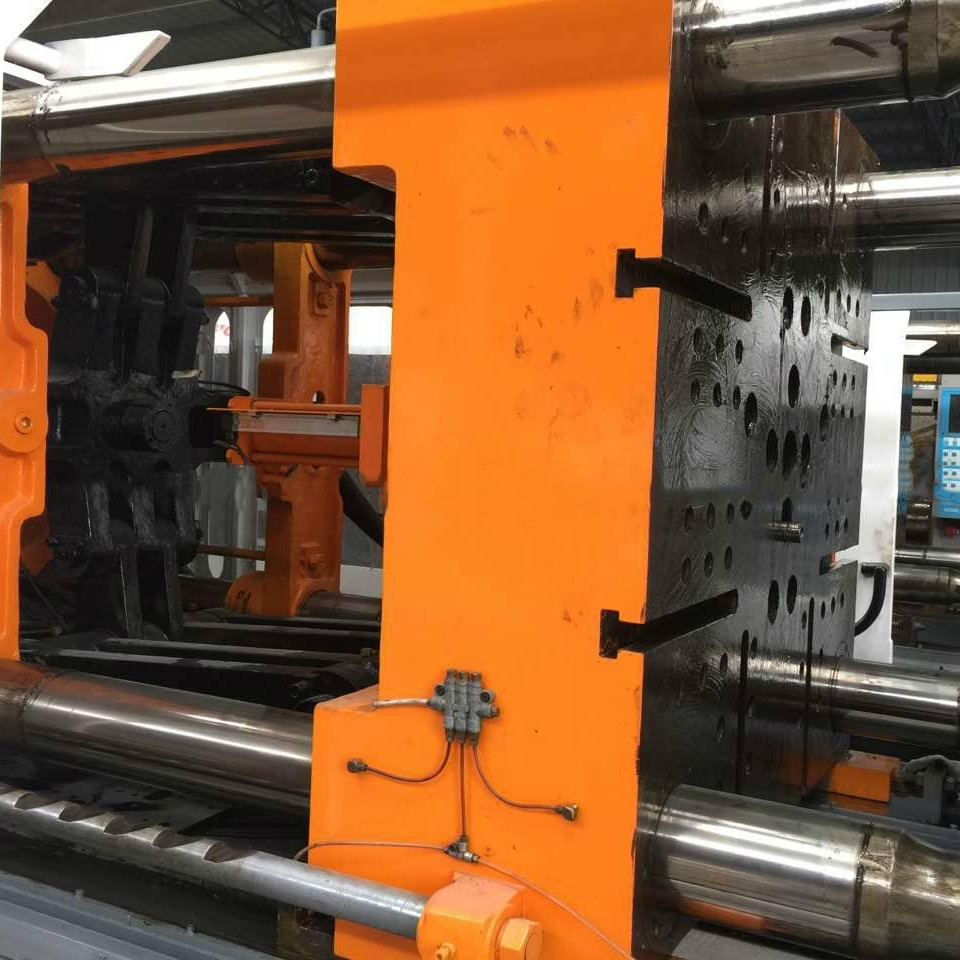

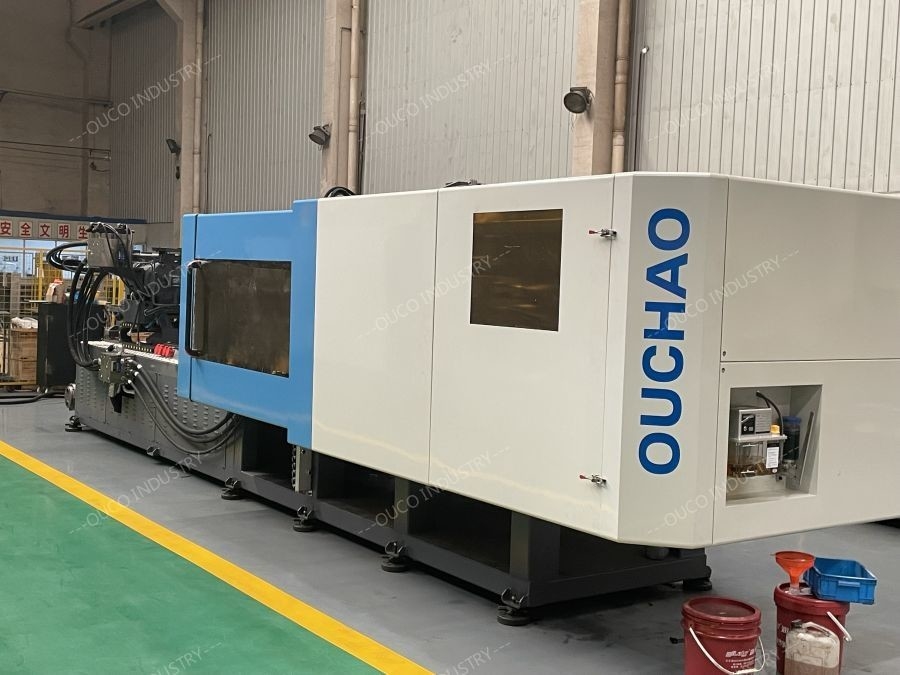

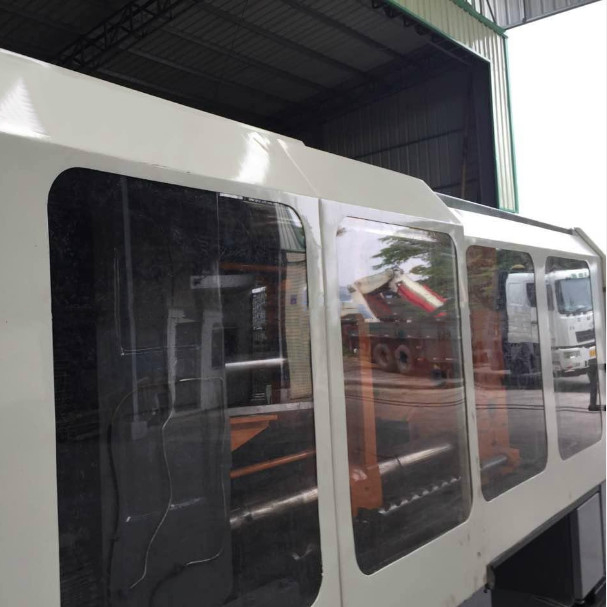

Detail Pictures
